SIE05

Polymetal Amursk Gold POX(Pressure Oxidaton) plant

Plant Control System. Engineering, Supply, Supervision of installaton

Project Details

Year of Execution: 2009-2011

Facility: Amursk hydrometallurgical plant (AHP)

Location: Amursk, Khabarovsk Krai, Russia

Contract Price Level: < $1M

Key Project Stakeholders:

End User: Amursk hydrometallurgical plant (AHP)
Customer: Polymental / SNC-Lavalin

Scope of Supply:

E&A: Server, Workststion, PLC, Operator desk, UPS
Services: Engineering, Manufacturing, Factory Acceptance Test (FAT), supervision of Installation

Project Description:

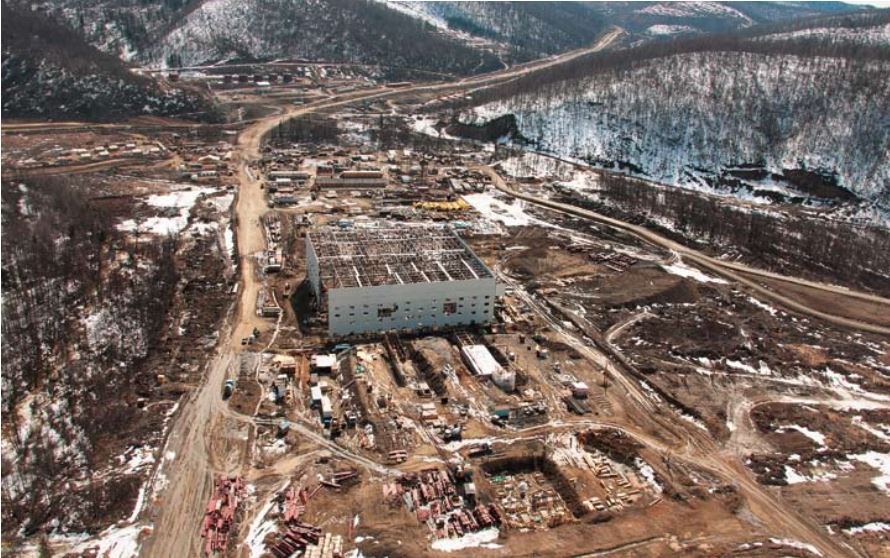

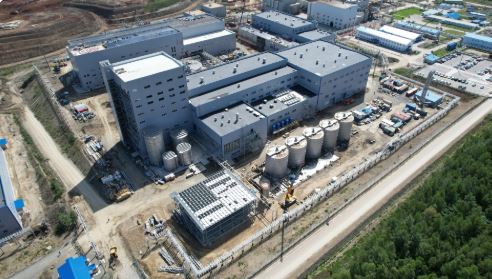

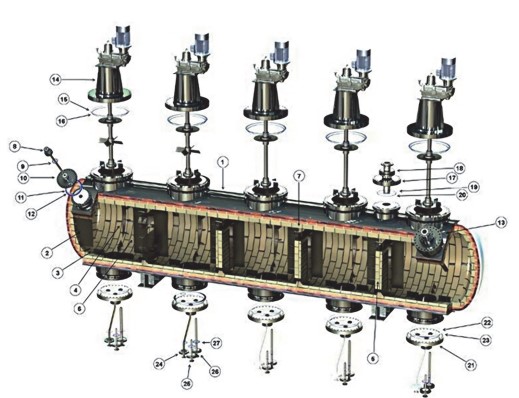

The Albazino–Amursk Project involves the processing of gold-bearing concentrates at the Amursk Hydrometallurgical Plant (AHP) using pressure oxidation technology (POX). AHP became the first operating facility in Russia to use autoclave technology for the processing of gold-bearing concentrates.

The design and supply of equipment for the autoclave section were carried out by the Canadian company SNC-Lavalin, which has extensive experience in implementing similar pressure oxidation projects.

The design and supply of the Plant Control System were carried out under the supervision and technical coordination of SNC-Lavalin. The control system was implemented using a Siemens fault-tolerant H-system PLC architecture, designed to ensure high reliability and continuous control of critical processes within the pressure oxidation plant.

To solve this challenge, Severstal selected a solution from Siemens VAI Metals Technologies, which included improvements to the existing equipment and the implementation of a modern automation system.

My Role:

Project Manager responsible for project scope, schedule, and financial performance.

Project Team:

2 E&A Hardware Design Engineers (wiring diagrams, hook-ups, data sheets, cable lists, etc.)
3 Functional Managers (Commercial, Procurement & Logistics, and Legal Support)

Subcontractors:

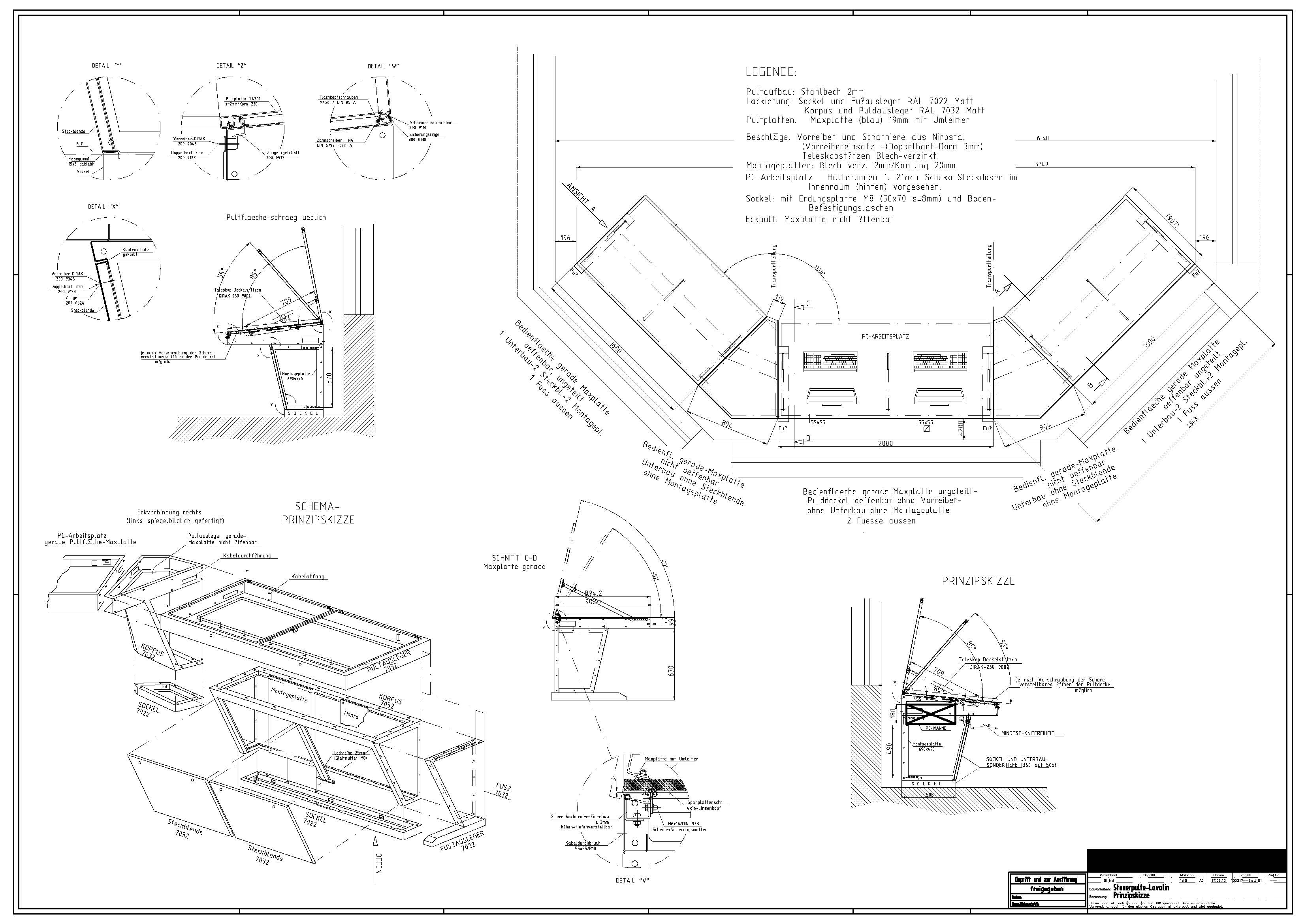

PLC Cabinets, operator desk (assembly) — FEAG Sangerhausen GmbH

Technical Description:

Project includes:

Electrical & Automation package:

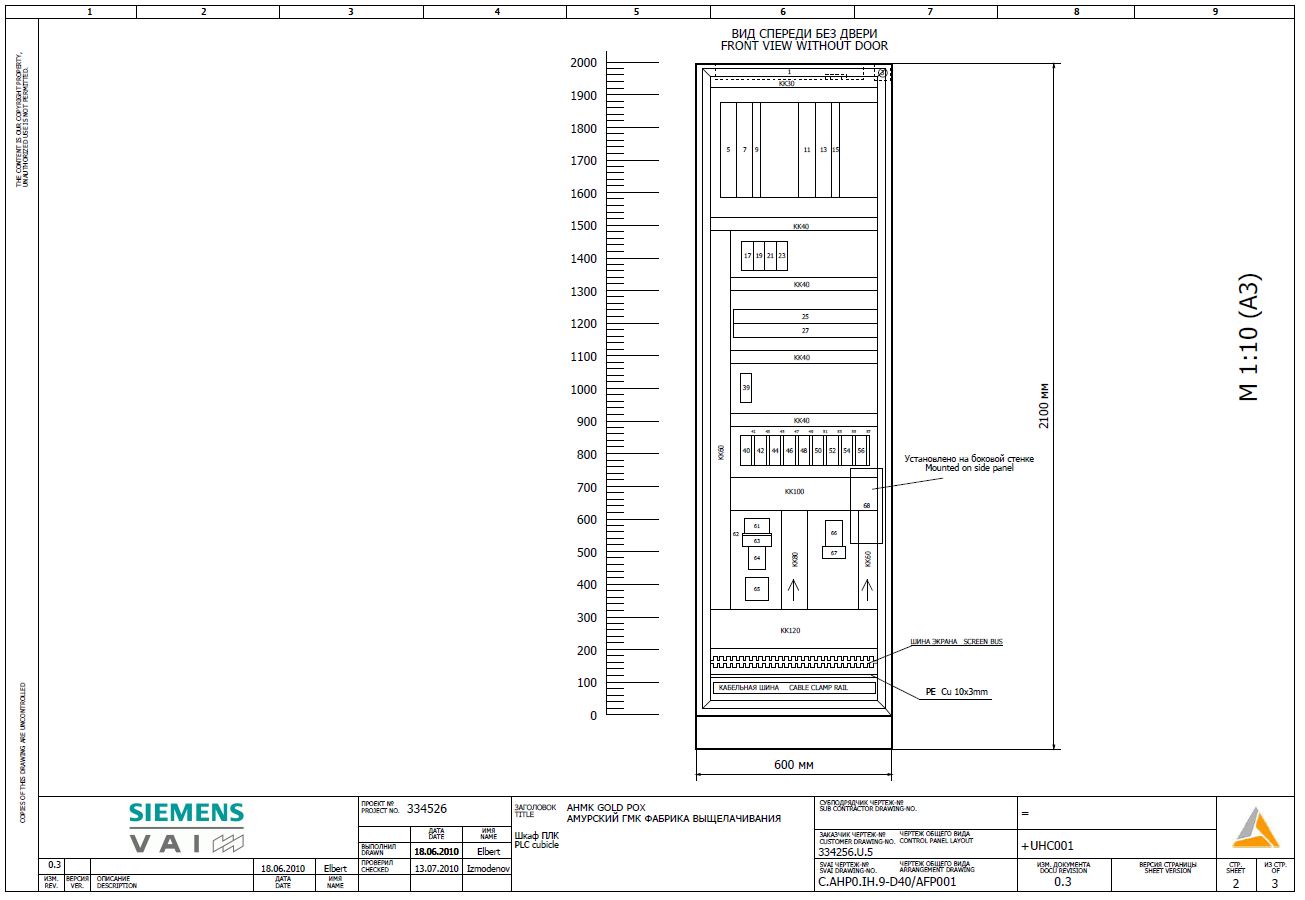

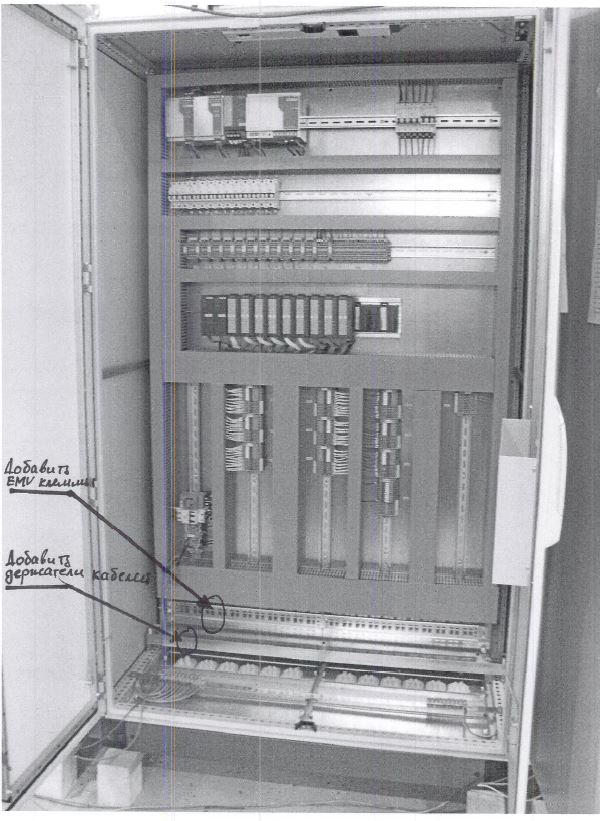

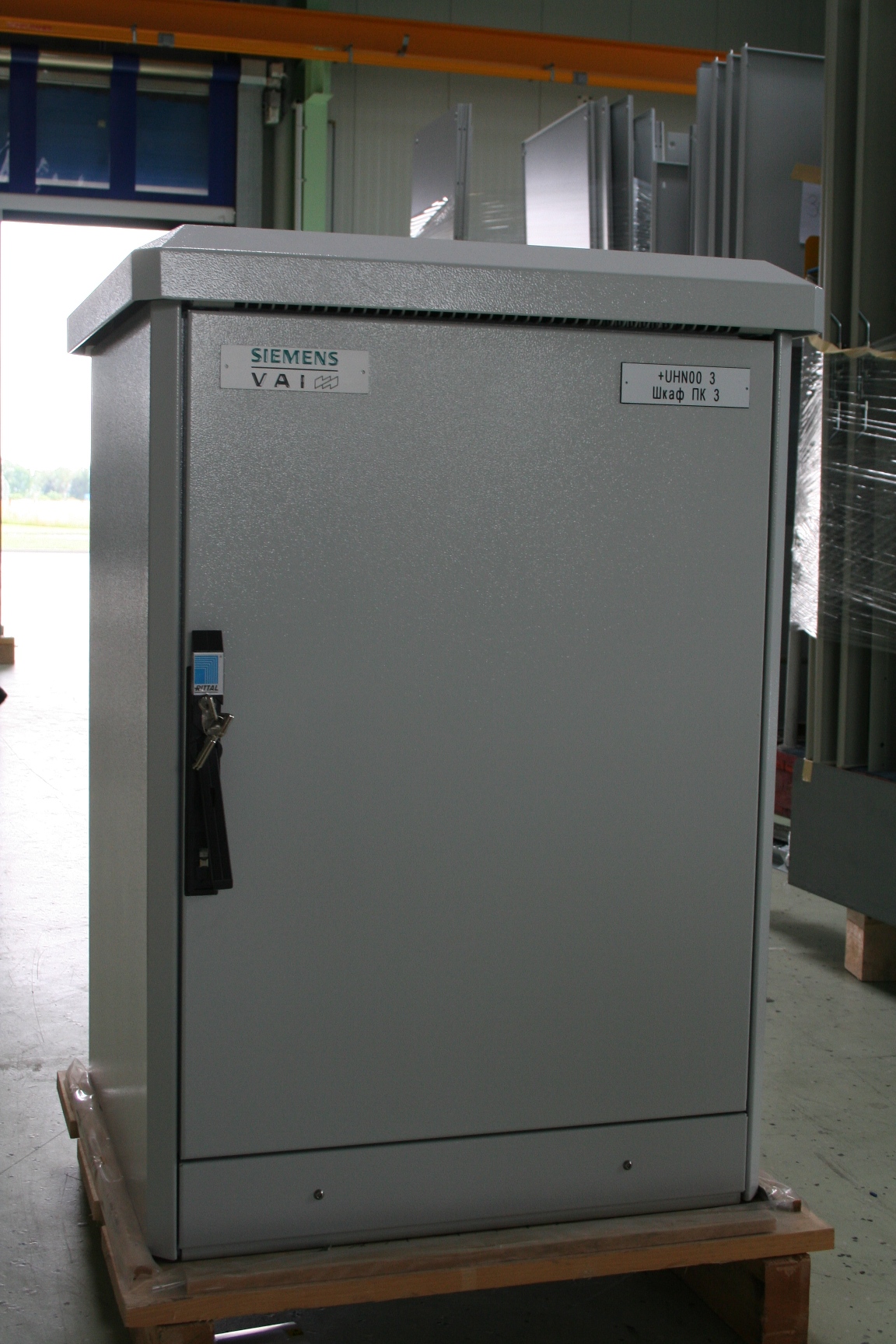

1 PLC Cabinet
SCADA/HMI System (2x Workstations, 1 Archive server, 1 Engineering station)

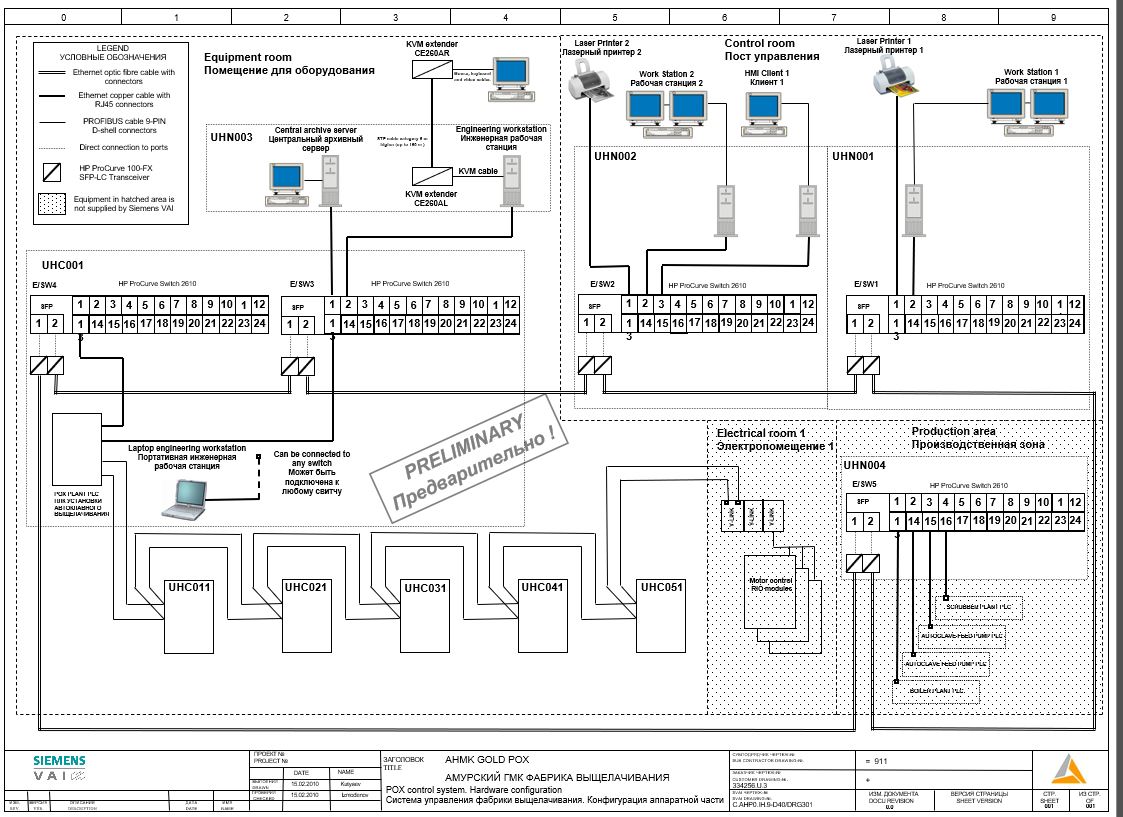

Automation Technical Solution / System Architecture:

Control Level: SIMATIC S7-400H system, SIMATIC ET200M system
SCADA/HMI: PCS7, SOFTWARE SFC VISUALIZATION V7.1б SIMATIC PCS 7, SOFTWARE, SERVER REDUNDANCY V7.1б SIMATIC NET, POWERPACK S7-REDCONNECT/2008; SIMATIC PCS 7, SOFTWARE CENTRAL ARCHIVE SERVER BASIC PACKAGE V7.1 (1500 VAR)
COMMUNICATION: Industrial Ethernet, PROFIBUS DP
