Severstal Secondary Dedusting System for Converter 1-3

Automation control system of the Secondary Dedusting unit Converter 1-3 Engineering, Supply, Commissioning

Project Details

Year of Execution: 2011-2014

Facility: Cherepovets Steel Mill. Converter plant

Location: Cherepovets, Russia

Contract Price Level: $2M+

Key Project Stakeholders:

End User: Severstal
Customer: Severstal
EPC Contractor: Siemens VAI
Design Contractor: Severstal-Proekt
Systems Integrator: Siemens VAI

Scope of Supply:

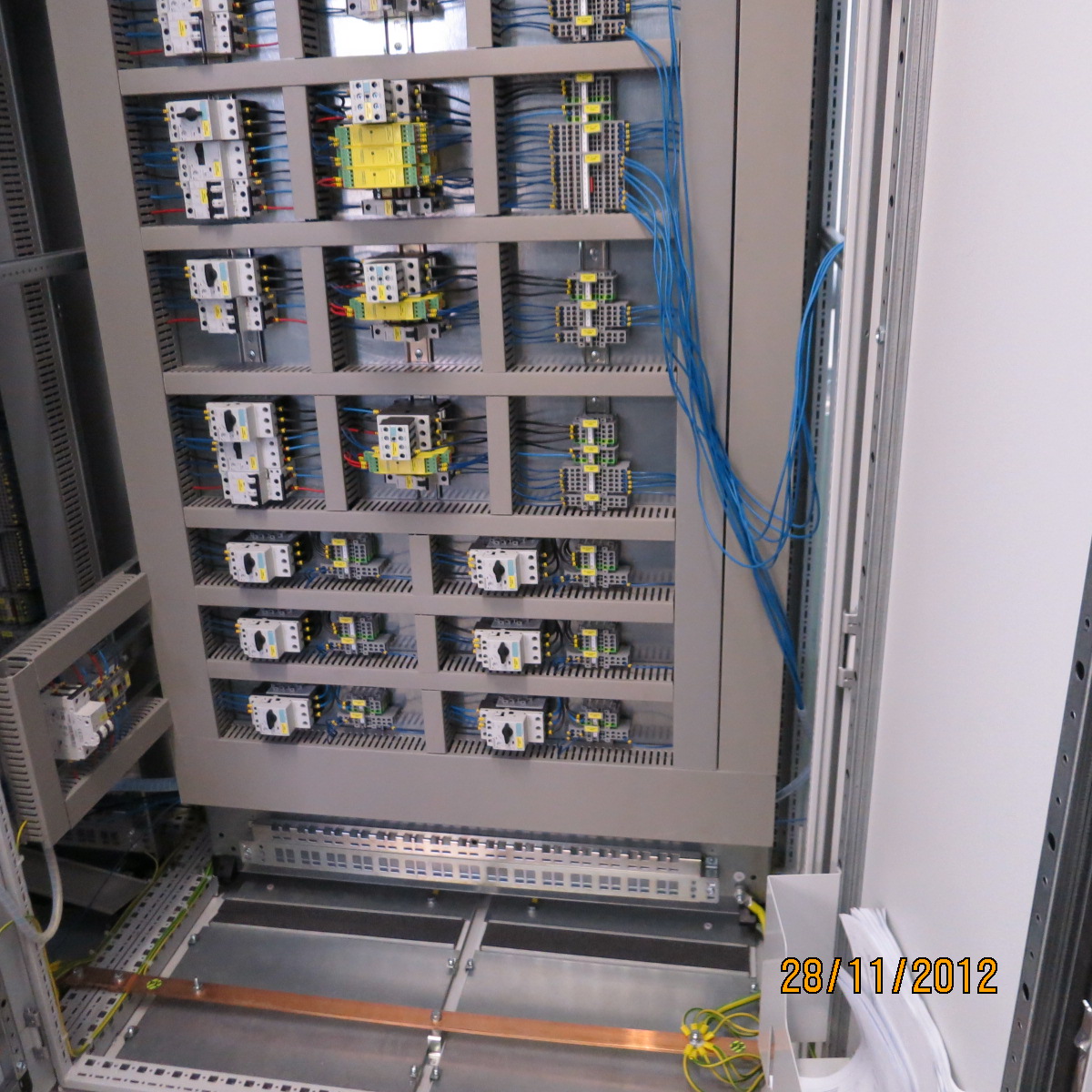

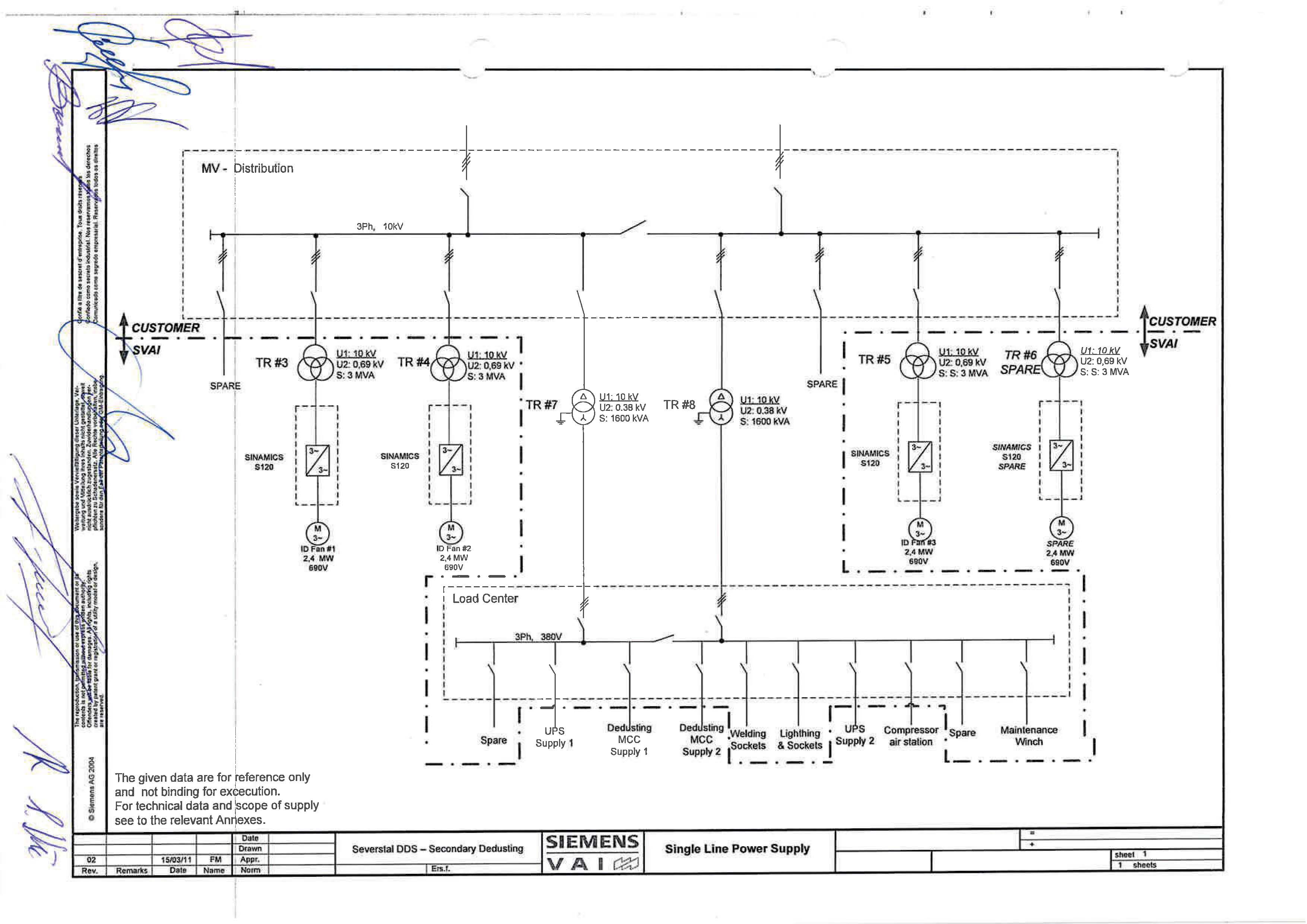

E&A: SCADA/HMI System, PLC System, MCC System, Field Instrumentation, Cables
Services: Engineering, Manufacturing, Application Software Development, Factory Acceptance Test (FAT), Commissioning, Site Acceptance Test (SAT), System Handover

Project Description:

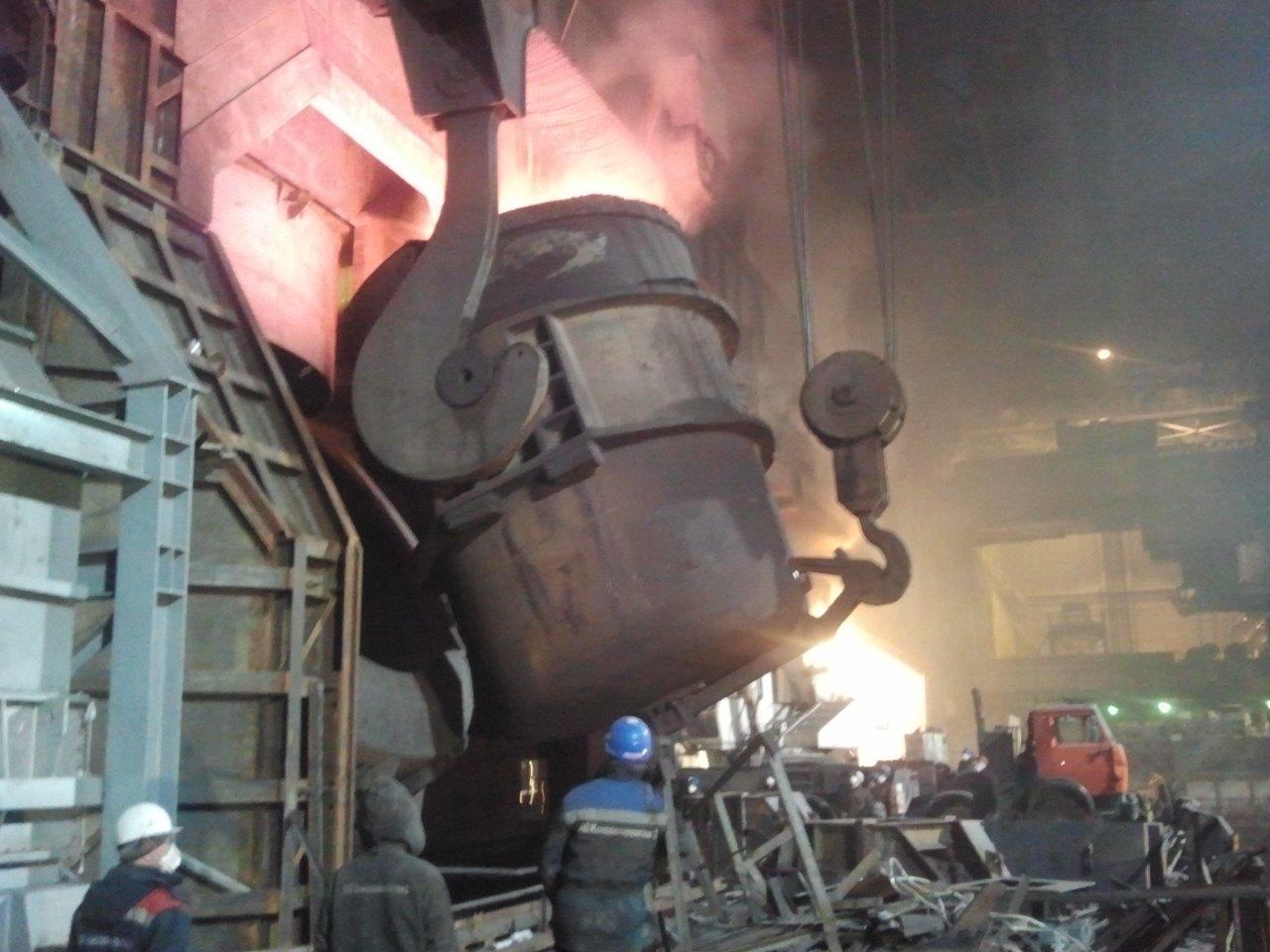

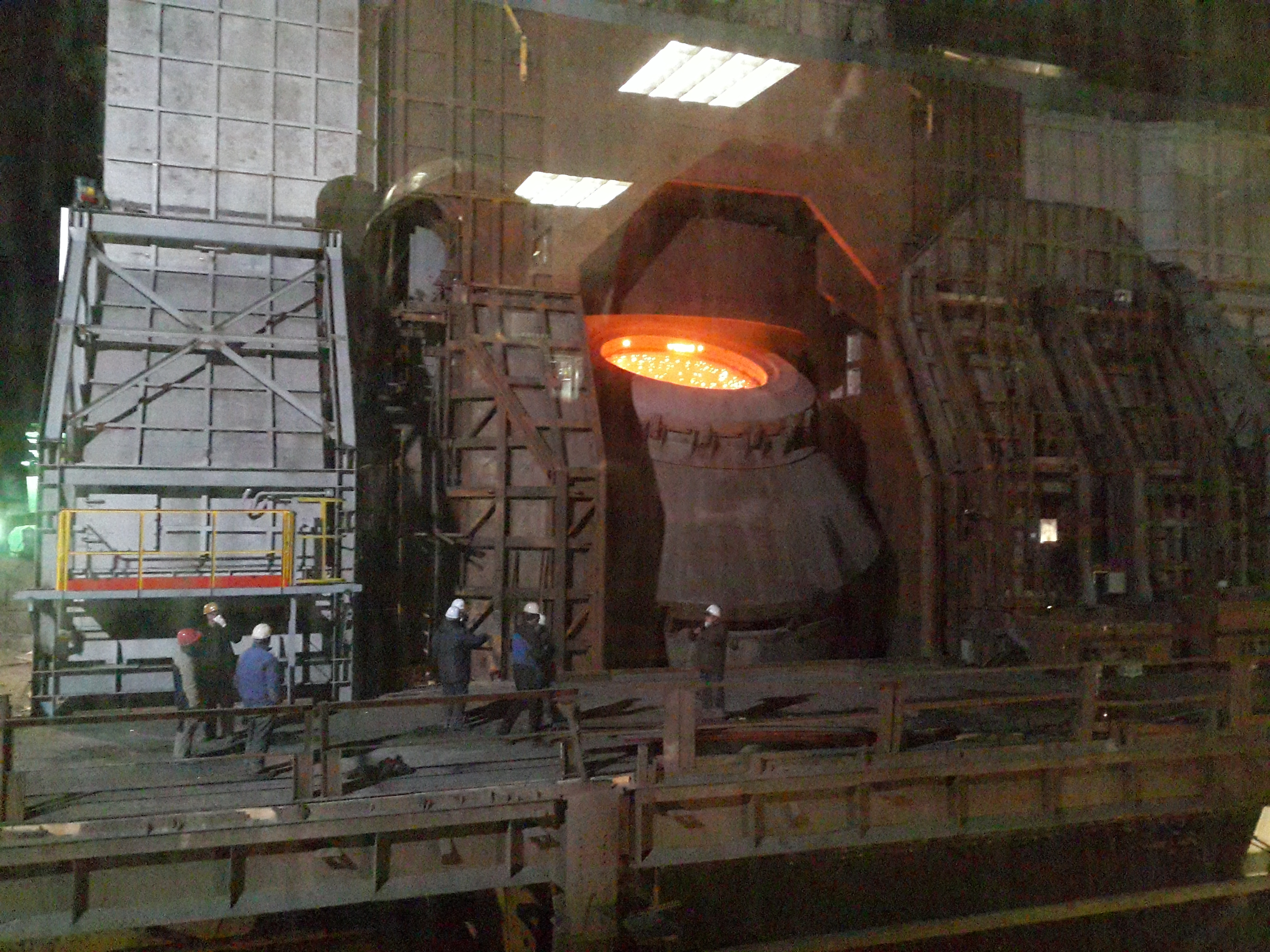

In 2011, SEVERSTAL, one of the world leading steel producers, launched a major project to modernize the converter steel making plant facilities at the industrial plant located in Cherepovets, Russia, as part of its program aimed at increasing production volumes and improving environmental standards. One of the key objectives of the project was to install a new secondary dedusting system for the converter steel making plant facilities.

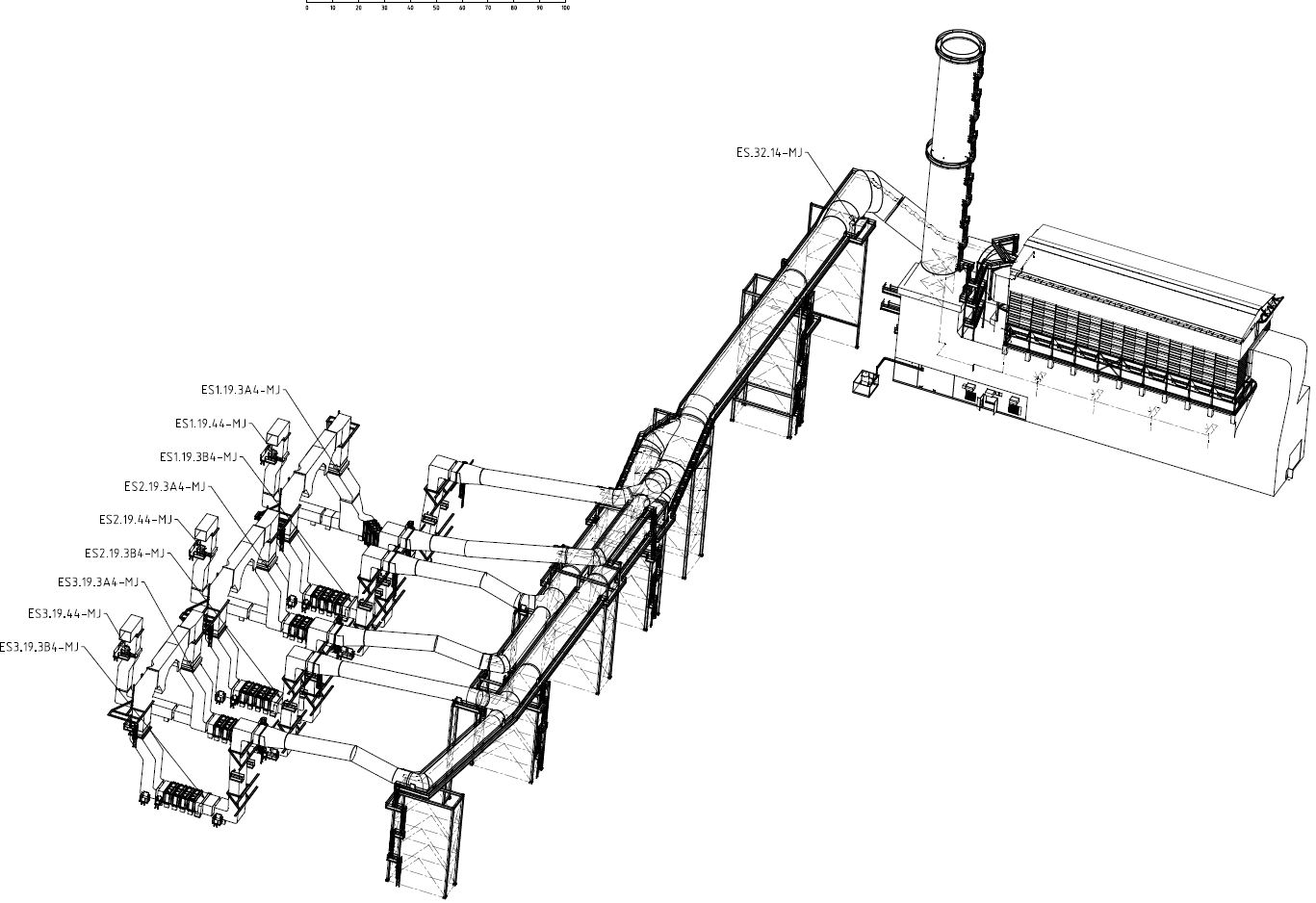

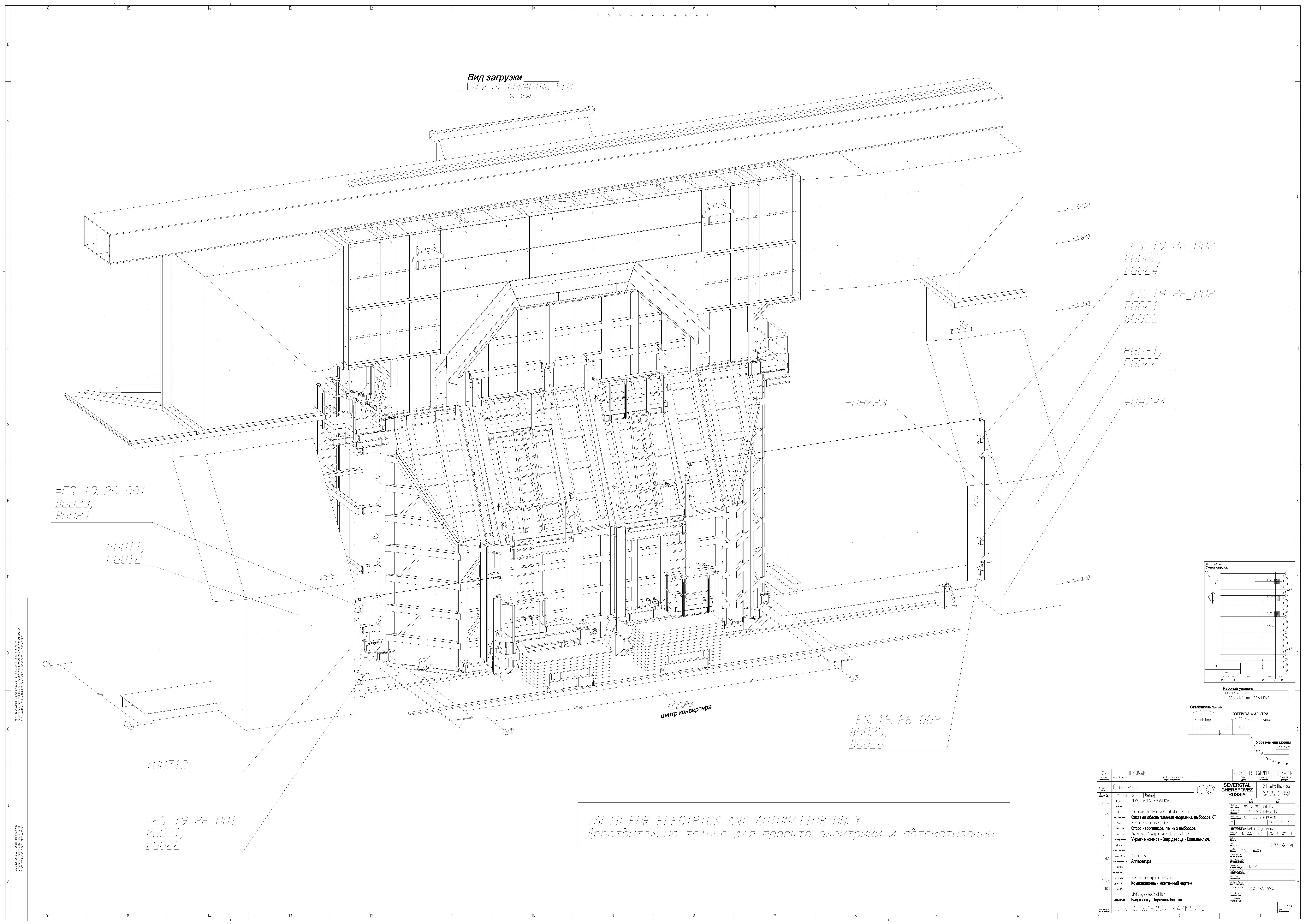

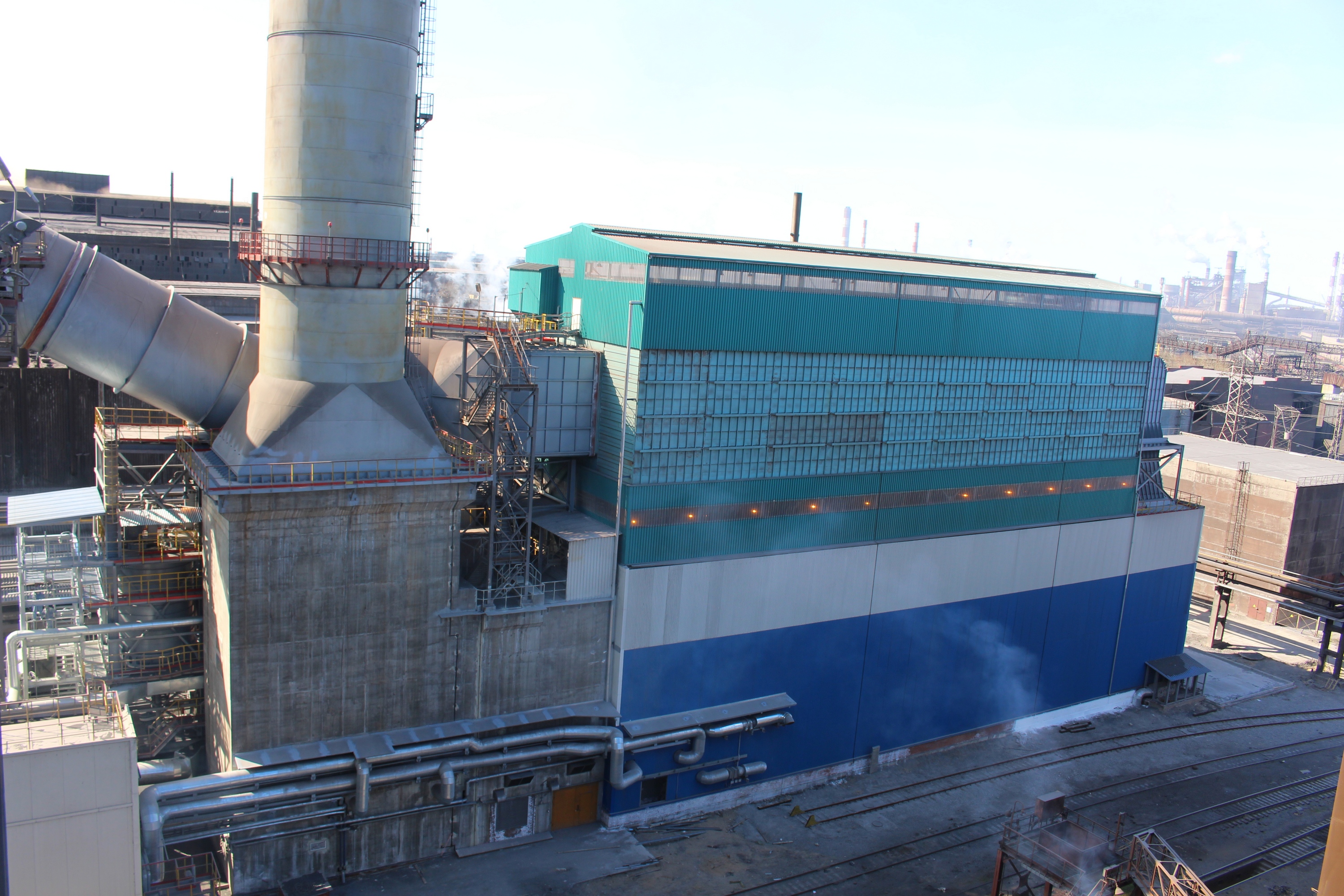

The environmental project is directly related to the modernization of the converter steel making plant facilities. The project includes the installation of new suction hoods, ducts, a new bag filter unit along with fans and stack in order to improve the environmental standards.

To address this task, SEVERSTAL selected a solution offered by Siemens VAI Metals Technologies.

My Role:

Project Manager responsible for E&A project scope, schedule, and financial performance.

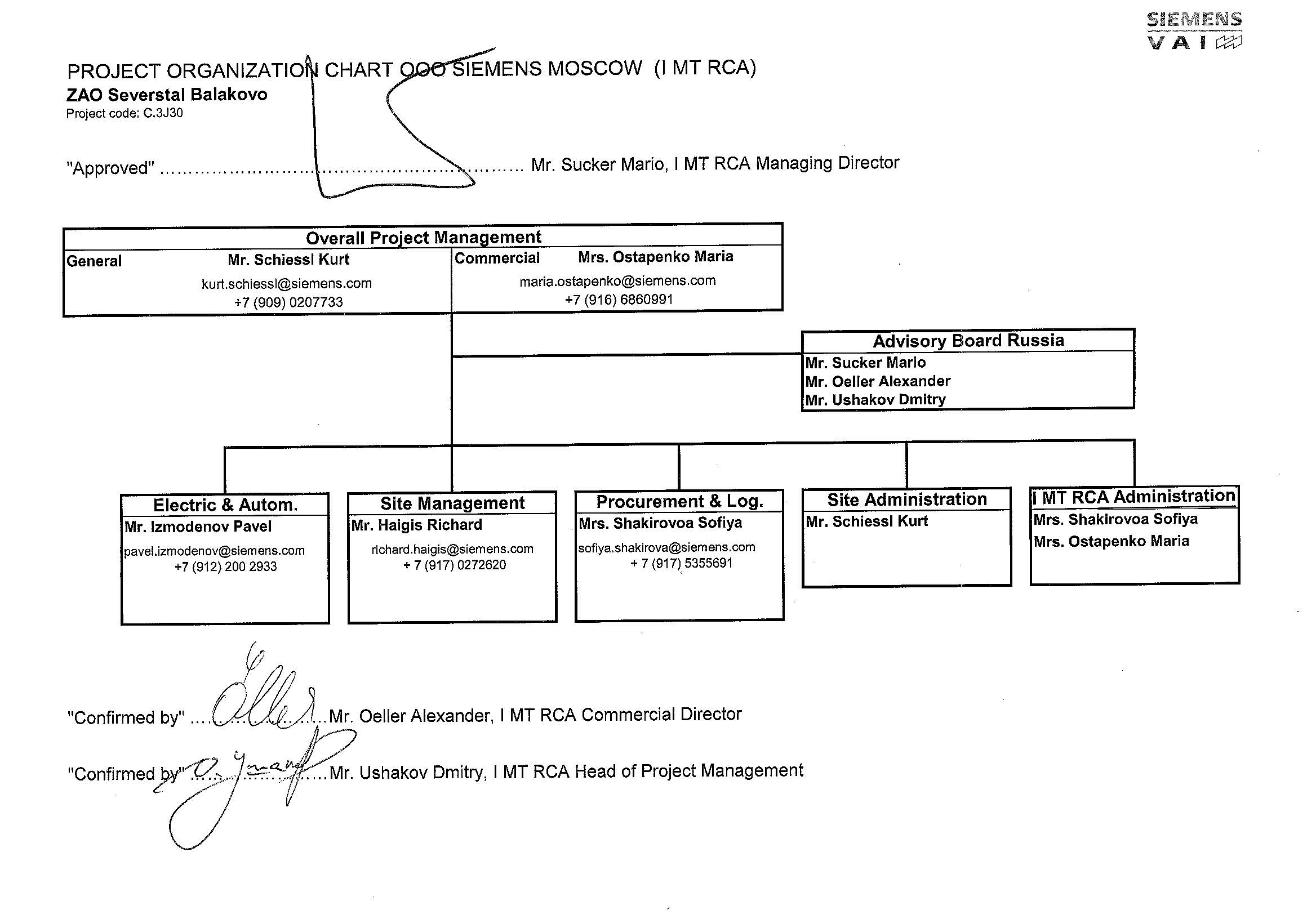

Project Team:

5 Application Software Engineers (PLC, SCADA)
4 E&A Hardware Design Engineer (wiring diagrams, hook-ups, data sheets, cable lists, etc.)
3 Functional Managers (Commercial, Procurement & Logistics, and Legal Support)
1 Project administrator
1 Site Manager

Subcontractors:

PLC, MCC Cabinets — FEAG GmbH, LLC Avatri
Computers, Servers, Switches, UPS - LLC Langarden
Dust-measuring System: SICK MAIHAK Russia

Technical Description:

Project includes:

Electrical & Automation package:

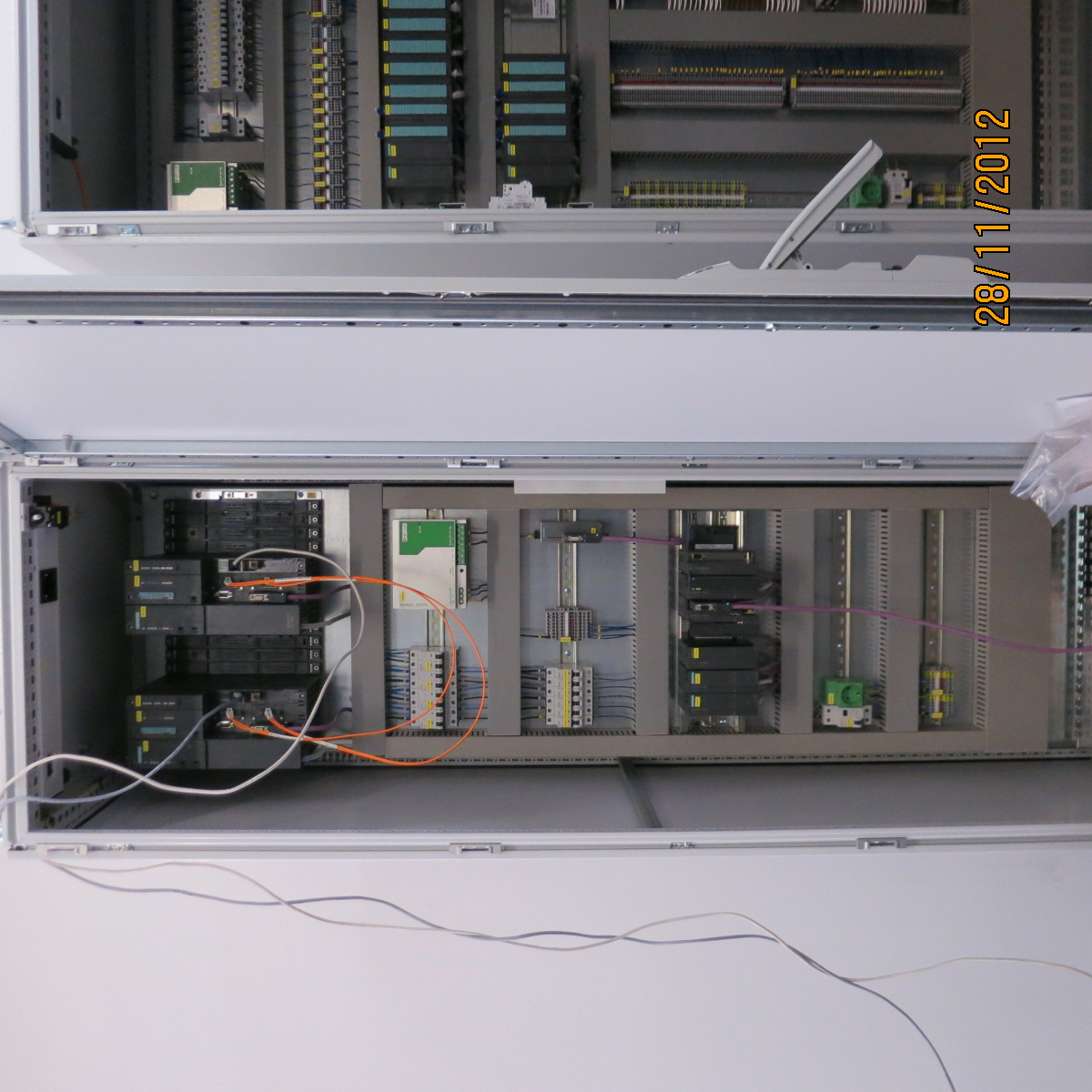

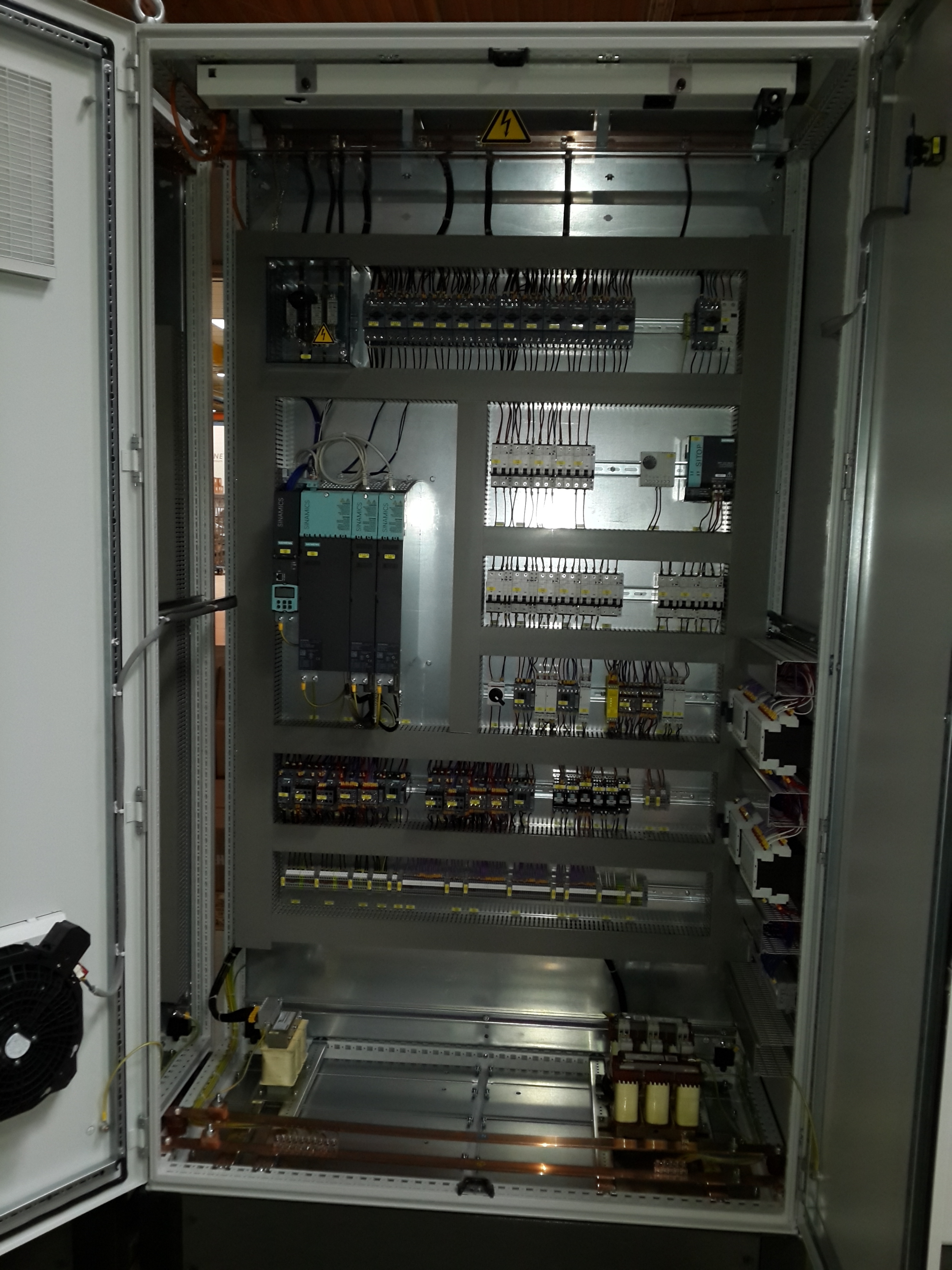

PLC, MCC Cabinets
SCADA/HMI System
Field Instrumentation

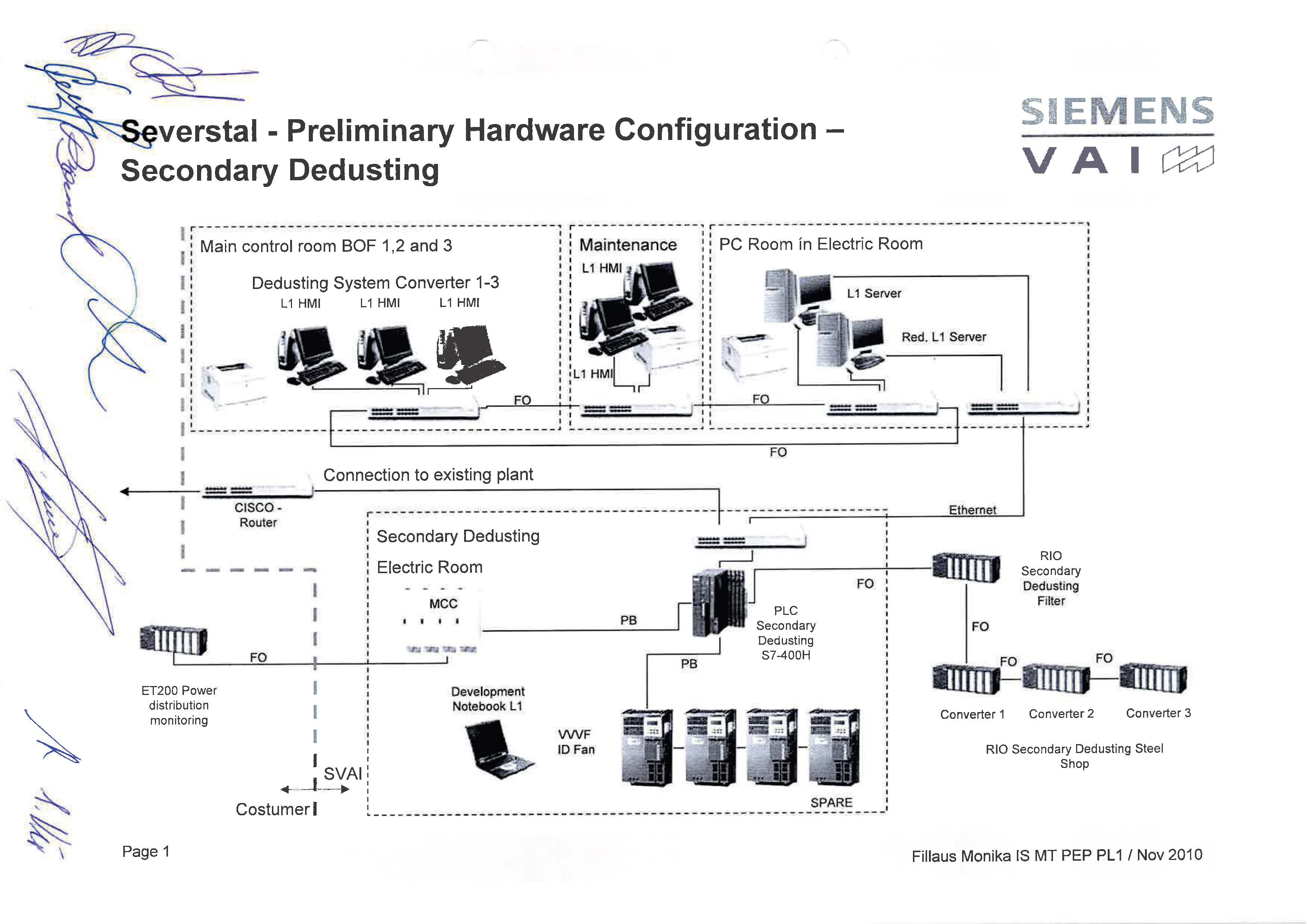

Automation Technical Solution / System Architecture:

Control Level: PLC SIMATIC SIMATIC S7-400H (redundant), DUSTHUNTER;
SCADA/HMI: Server station (redundant), Work station, SVAI Application Software; WINCC/SERVER V7.0, WINCC/REDUNDANCY V7.0

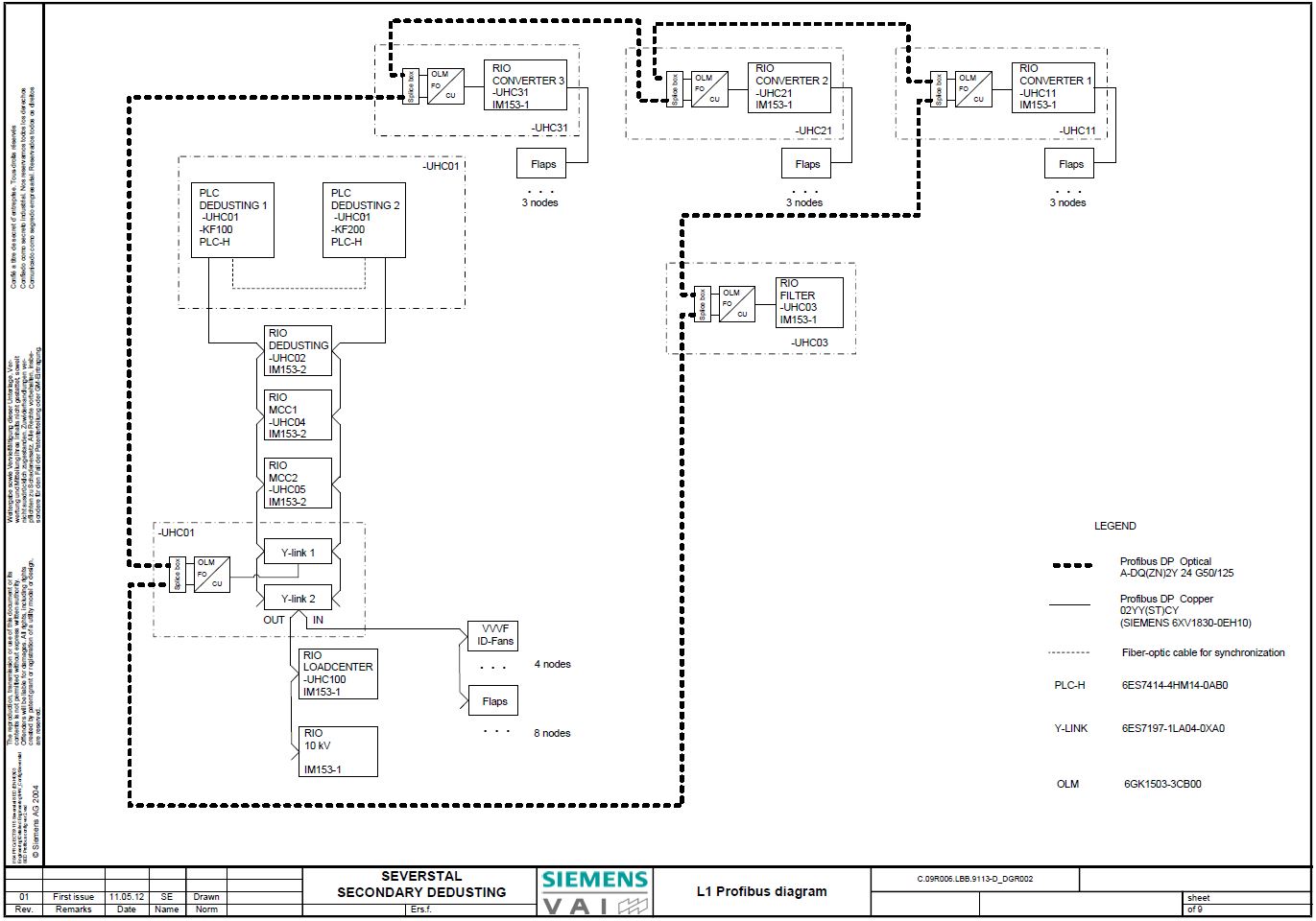

COMMUNICATION: Industrial Ethernet, PROFIBUS DP
