HON08

Moscow Krasnoprudny Multifunctional Complex, Marriott Imperial Plaza Hotel

Complete Building Management System (Automation and Security). Engineering, Supply, Installation and Commissioning

Project Details

Year of Execution: 2019-2022

Facility: Moscow Krasnoprudny Multifunctional Complex

Location: Moscow, Russia

Contract Price Level: $4M+

Key Project Stakeholders:

End User: Cesar Group LLC
General Contractor: CITY CONSTRUCTION LLC
Automation and Security Systems: Honeywell

Scope of Supply:

Integrated Building Management System (Automation and Security) 11 000+ physical points; 26 000+ monitoring points; 285 video cameras; 6,500+ fire detectors and modules; 270+ access control points
Services: Design, assembly, supply, installation and commissioning.

Project Description:

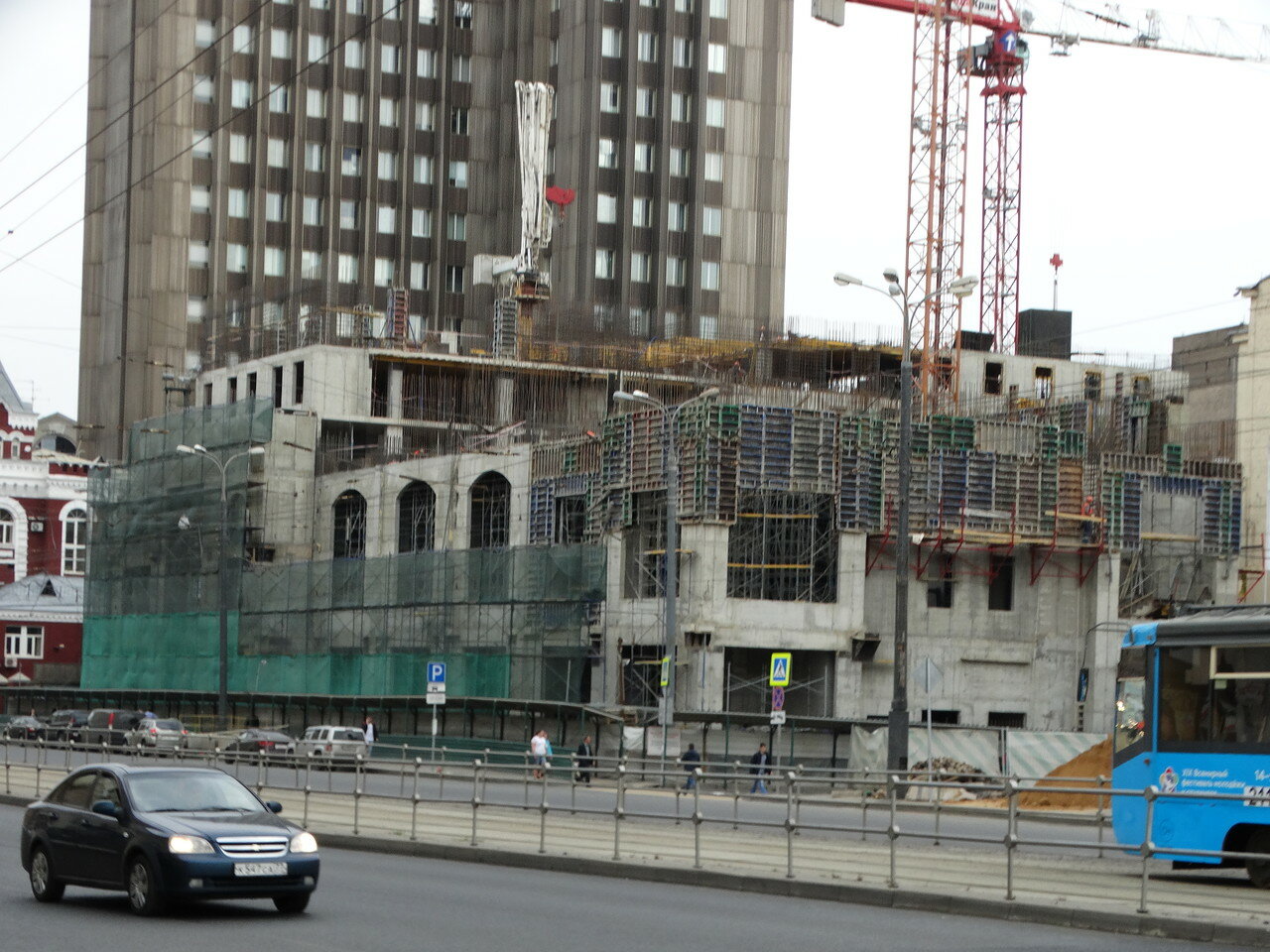

Krasnoprudny is a Class A multifunctional complex. It is an 18-storey building with a total area of 36 773,7 sq. m, including 7 900 sq. m of office space. The building also has a Marriott IMPERIAL PLAZA 5-star hotel and a panoramic restaurant on the 14th floor. The project started in 2019 with the construction of the engineering systems.

My Role:

Project Manager responsible for project scope, schedule, and financial performance

Project Team:

4 Design Engineers (2 HVAC, 1 Fire Alarm, 1 Access Control & CCTV)
8 Commissioning Engineers (2 Fire Alarm, 4 HVAC, 2 Access Control & CCTV)
1 Site Manager
1 Project Administrator (Office)
1 Project Administrator (Site)
2 Functional Managers (Procurement and Logistics)
Up to 25+ installation workers at peak (subcontractor)

Subcontractors:

Cabinets assembly: TRIA ENERGO LLC
Installation: OOO IK Dekst

Technical Description:

project includes:

Electrical & Automation package:

Fire Alarm System (FAS)
Aspiration System
Automatic fire suppression system
Public Address and Voice Alarm Systems (PAVA)
Gaseous fire suppression
Low mobility automation
Access Control System (ACS)
Video System (CCTV)
Intrusion detection System (IDS)
General Ventilation Automation
FCUs automation
Cooling Plant Automation
Parking Lighting control system
EBI server for Security systems
EBI server for HVAC
Master-Clock system
Drainage automation

Automation Technical Solution / System Architecture:

DDC: ComfortPoint® Controllers CP-IPC, CP-DIO, CP-EXPIO, CPO-VAV, CPO-RS4 (Honeywell) + 10” TFT Touch Panel MT8102iE (Weintek)
PAVA + Disabled Persons Assistance System + Gaseous Fire Suppression: ESSER by Honeywell VARIODYN® D1
FAS: Notifier by Honeywell XLS3000, System Sensor Detectors
Aspirating Smoke Detection System: VESDA-E VEA-40
ACS: Honeywell PRO3200 (PRO32IC) + OM30BHOND
CCTV: HEN64304 NVR, Cameras: H4W4PER3, HBW4PER2
IDS: Honeywell Galaxy Dimension GD-520 + Honeywell Sensors

HMI System:

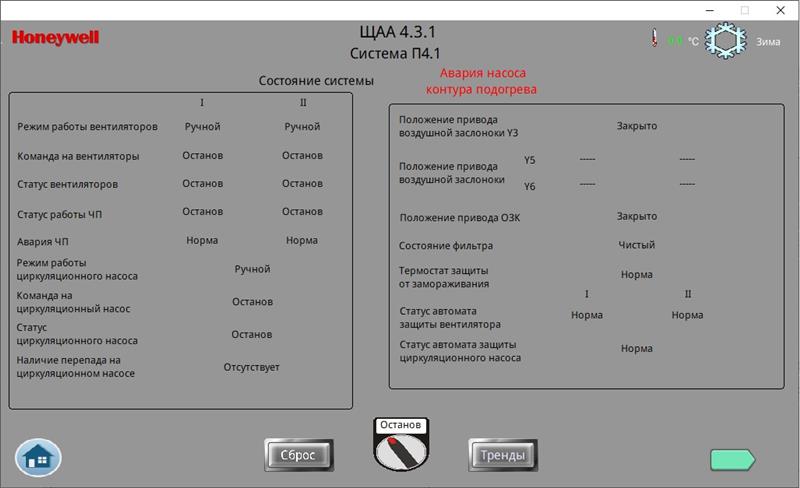

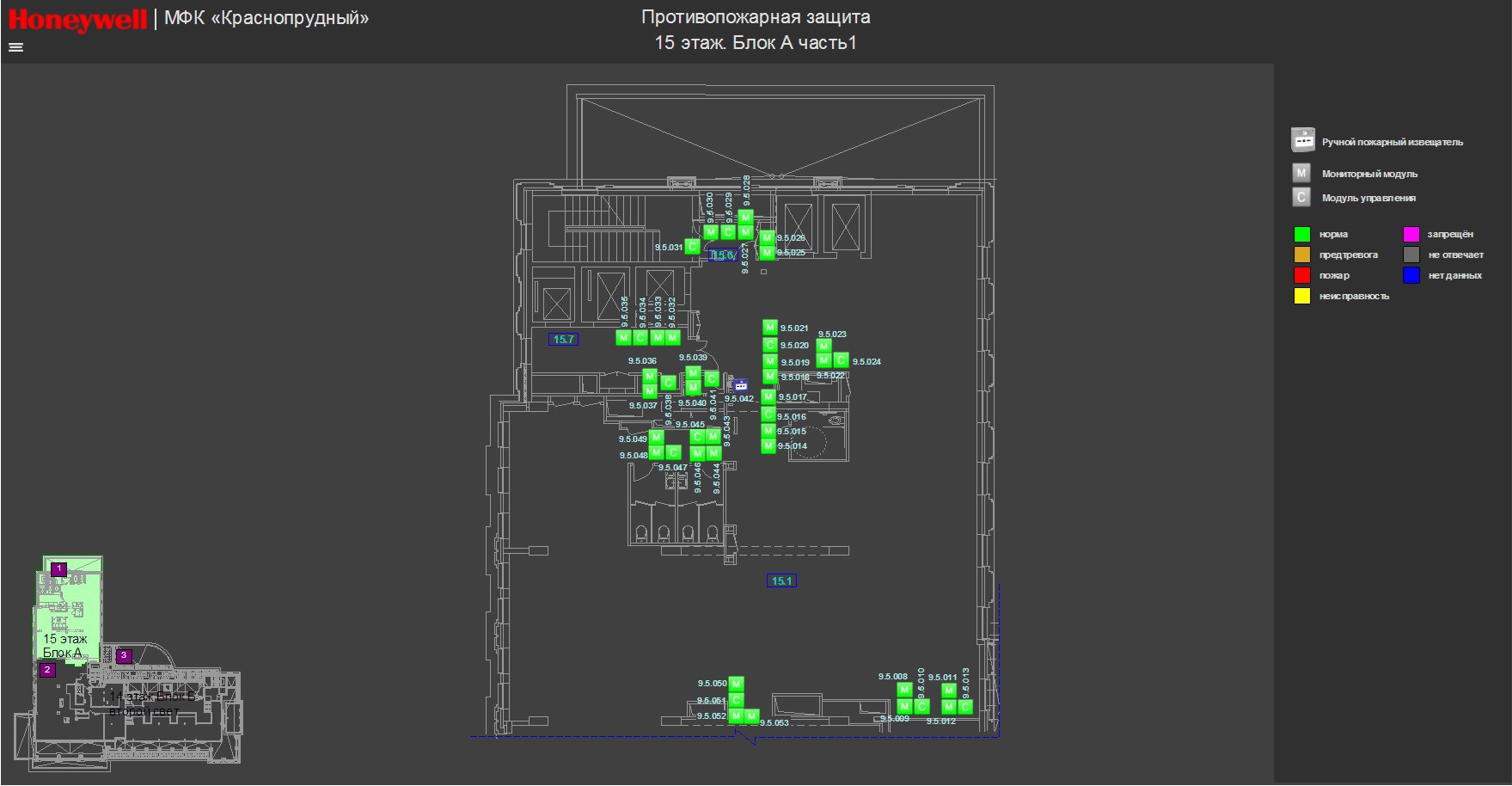

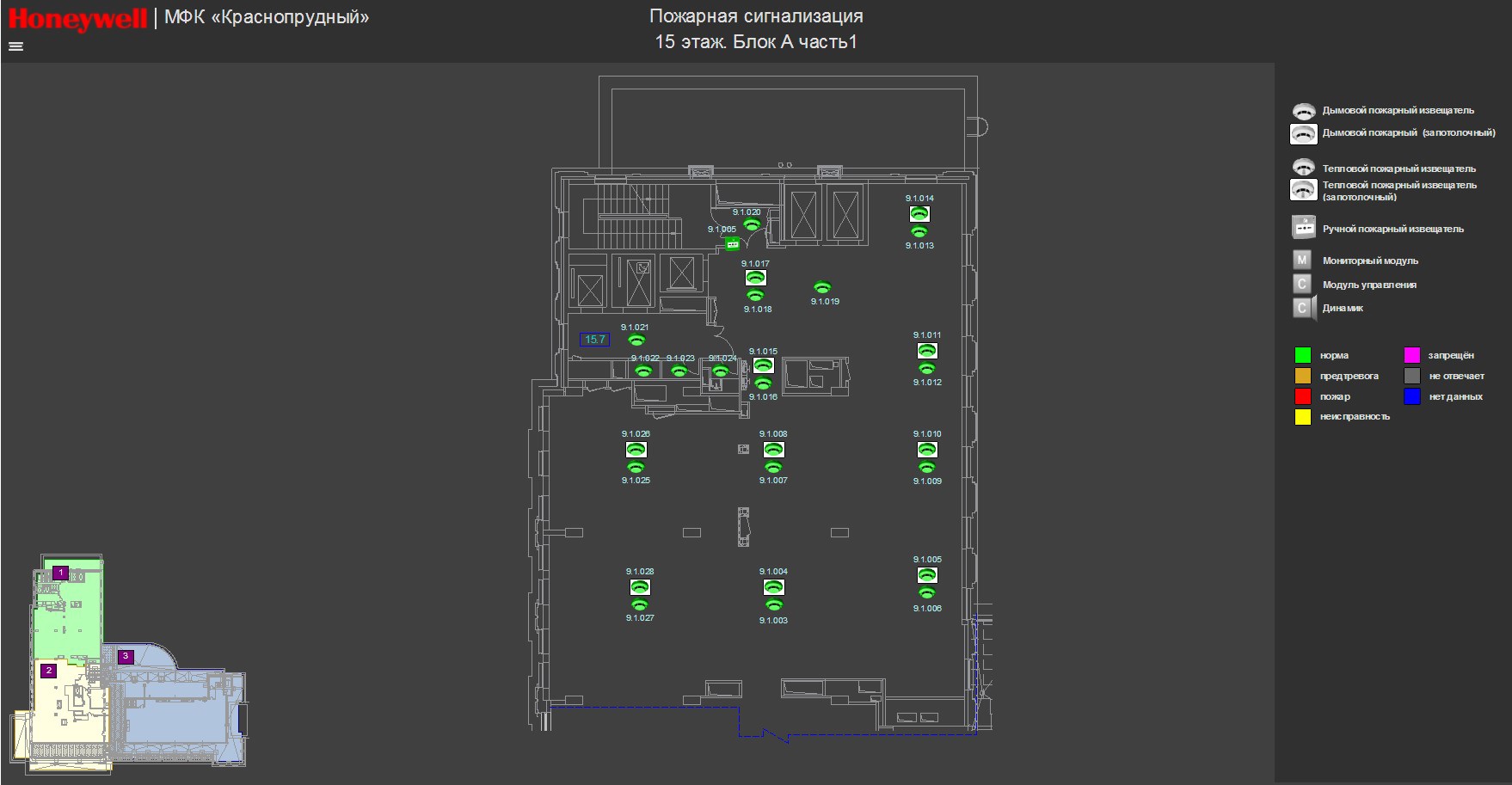

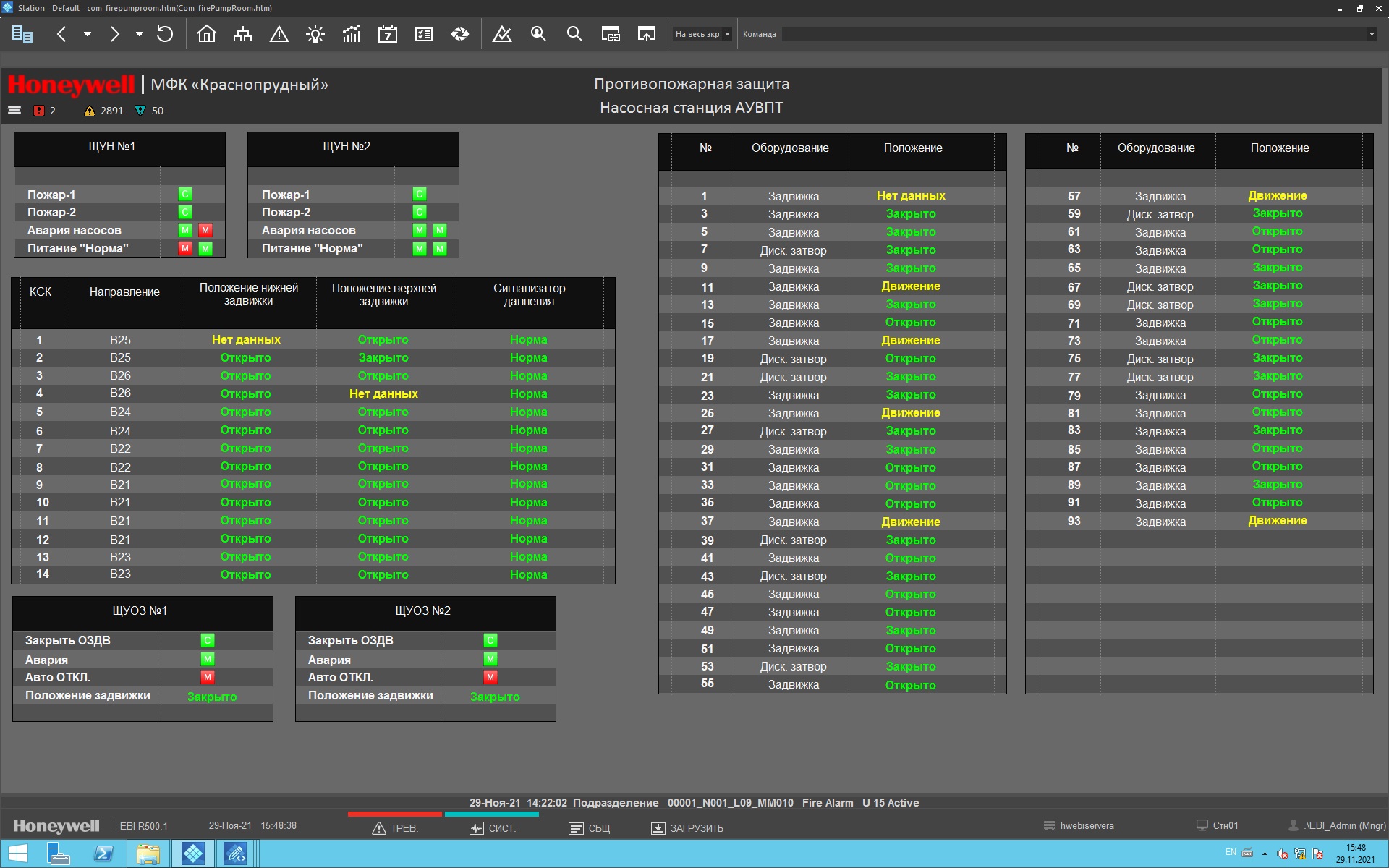

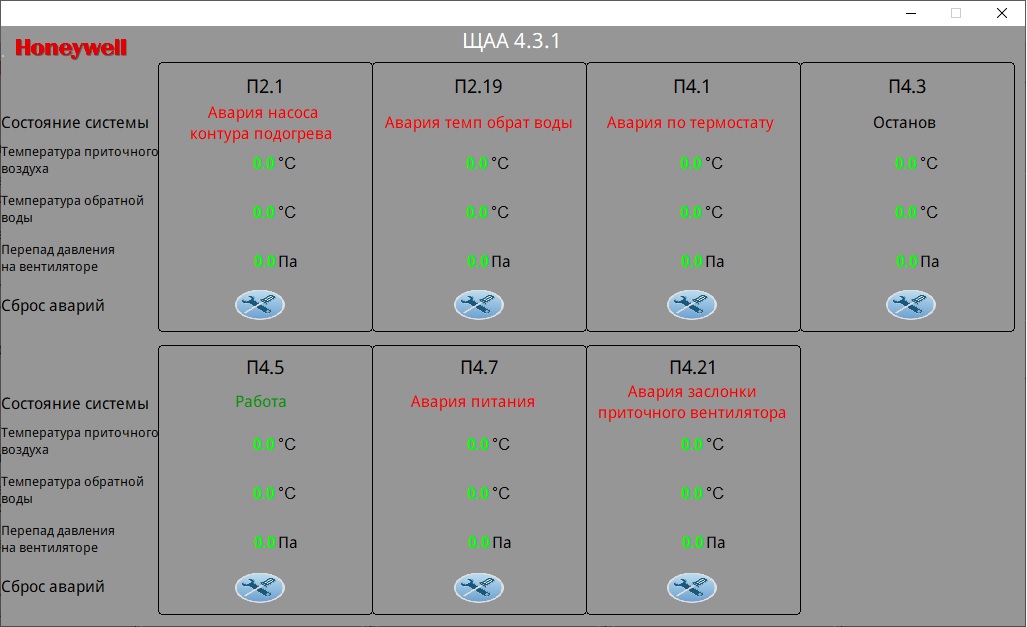

BMS: Honeywell EBI R500 (Enterprise Buildings Integrator)
PAVA: VARIODYN D1 PAMMI Plus Management System Workstation
CCTV: DVM R620 Digital Video Manager

Communication Networks and Protocols: BACnet, Ethernet
