AVA01

Central Hub Wien

Electrics and Automation of HVAC and Lighting Systems, Carbon monoxide (CO) detection system, Smoke Exhaust Building Automation System. Engineering, Supply, Commissioning

Project Details

Year of Execution: 2022-2024

Facility: Multifunctional building “Central Hub” (48,993 m²) within the TwentyOne complex.

Location: Wien, Austria

Contract Price Level: $3M+

Key Project Stakeholders:

End User: S87D Immobilienentwicklung GmbH & Co KG (Bondi Consult)
Customer: Bacon Gebäudetechnik GmbH
BMS Integrator: AVA3I

Scope of Supply:

E&A: Electrics and Automation of HVAC and Lighting Systems, Carbon monoxide (CO) detection system, Smoke Exhaust Building Automation System
Services: Engineering, Supply and Commissioning

Project Description:

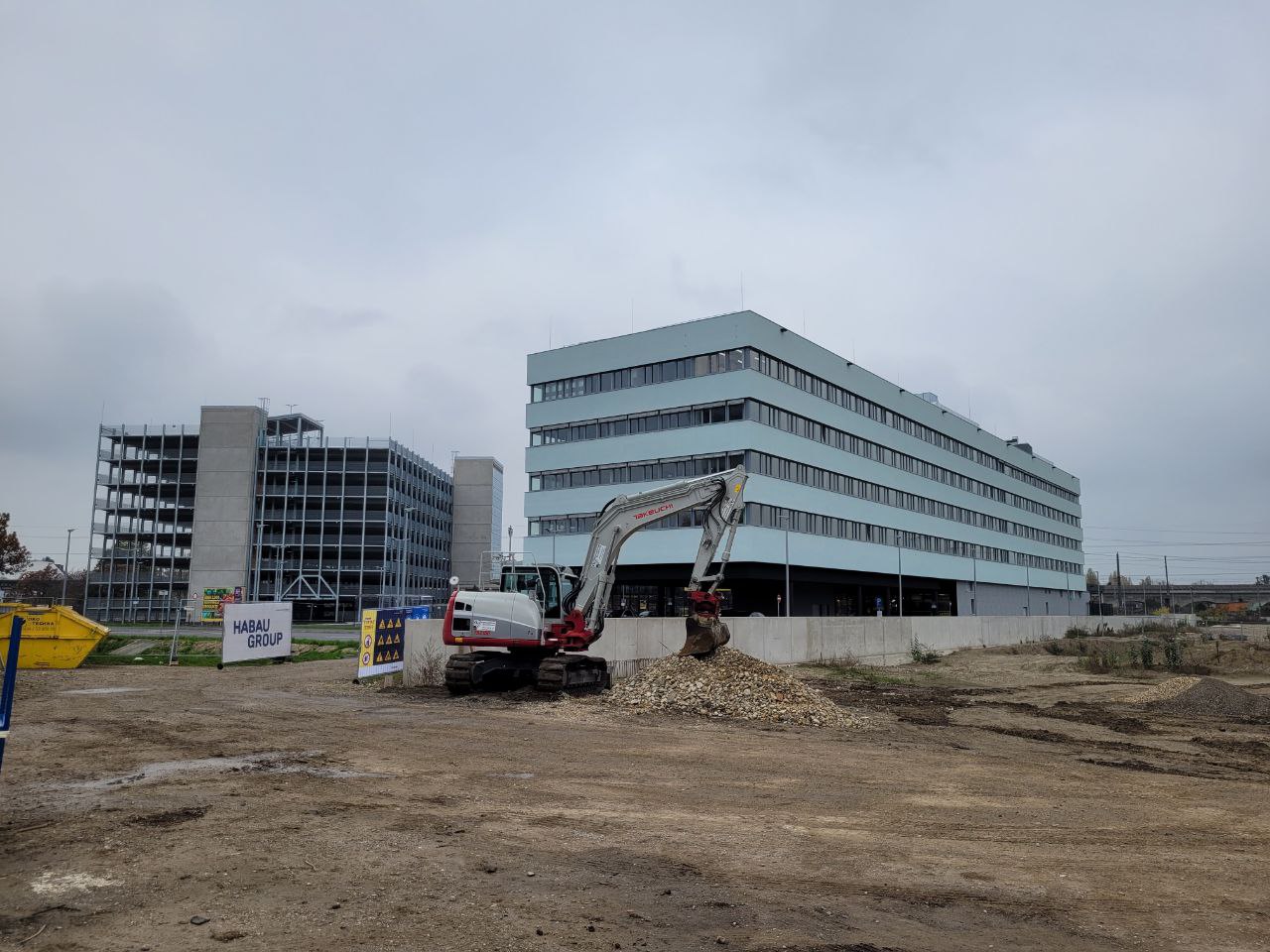

The central hub is built on a 9,800 sqm site. It has 7 floors, 2 underground levels, and parking for more than 100 cars. The total building area is about 48 993 sqm.

The building includes modern offices, co-working spaces, meeting rooms, laboratories, conference and training rooms, shops, and exhibition areas. The ground floor can be used for shops, showrooms, and exhibitions.

For the BMS, a solution from SIEMENS was selected

My Role:

Project Manager responsible for project scope, schedule, and financial performance

Project Team:

2 E&A Hardware Design Engineers (wiring diagrams, hook-ups, data sheets, cable lists, etc.)
2 Commissioning and Programming Engineers
Functional Manager (Procurement & Logistics)

Subcontractors:

Compact Electric GmbH;
Siemens AG Oesterreich;
EAP electric GmbH, STEINEL Austria GmbH, BMS GmbH;
Agnosys GmbH;
Oppermann-Regelgeräte GmbH.

Technical Description:

Central HUB project includes:

Electrical & Automation package:

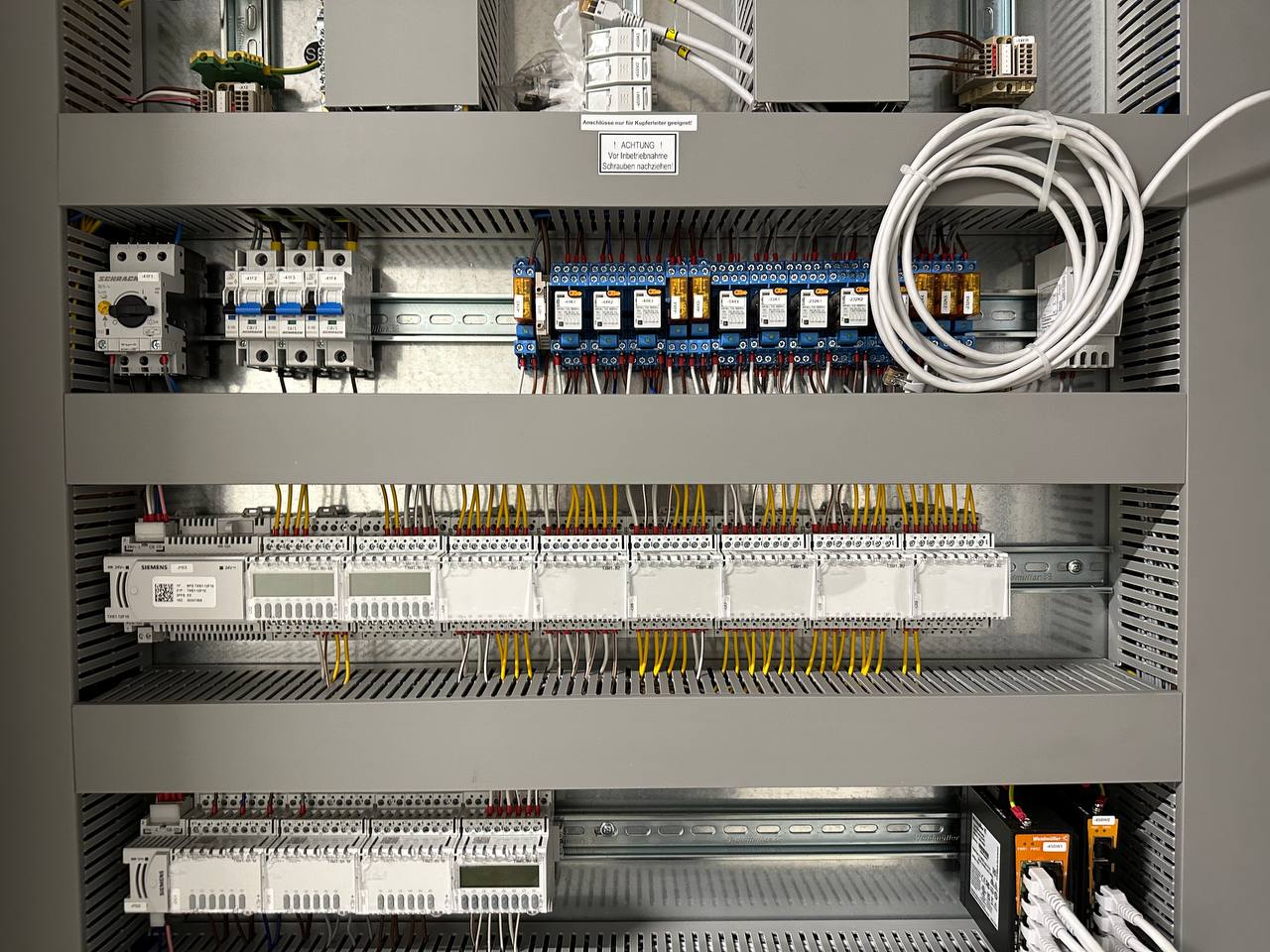

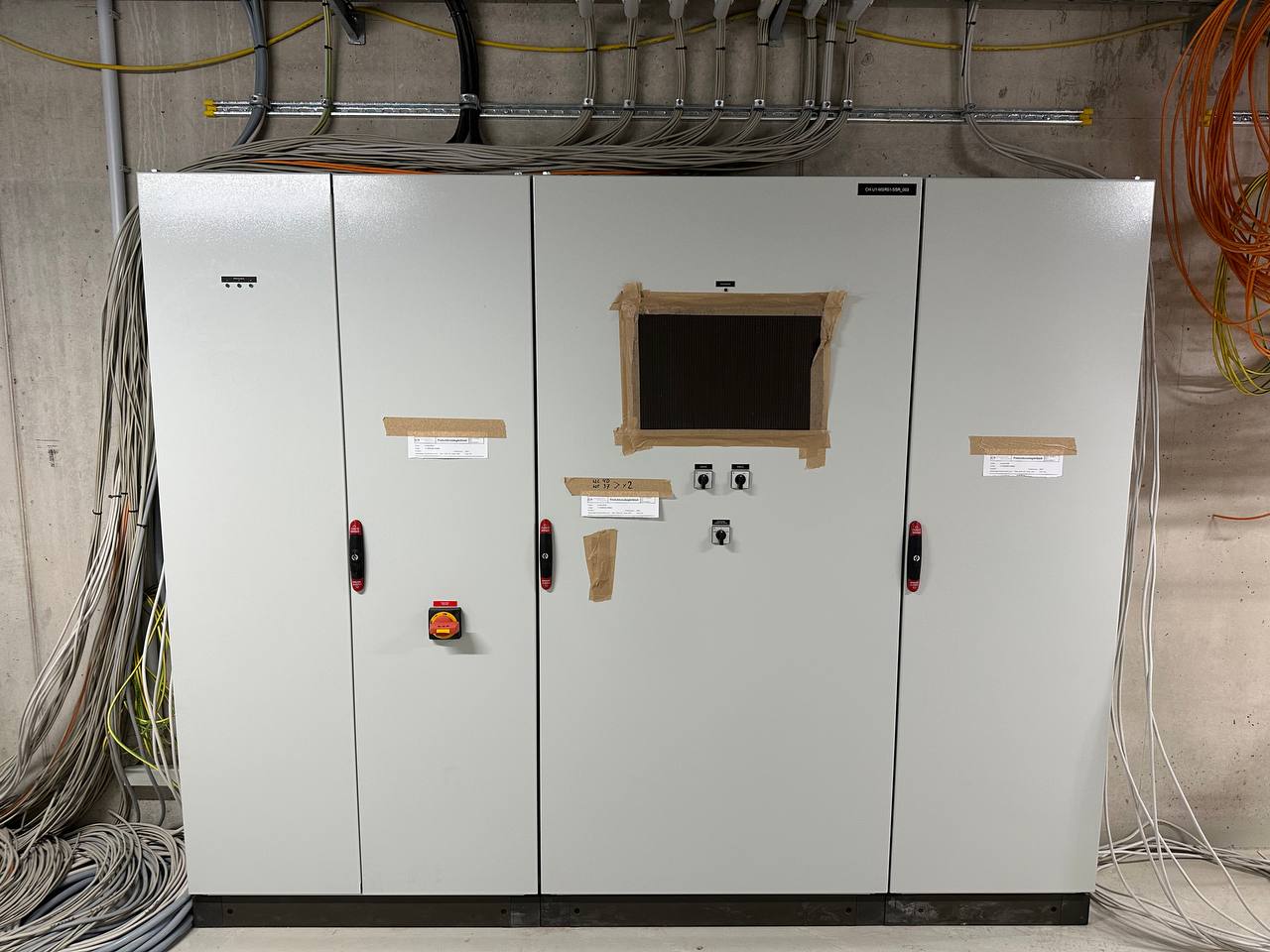

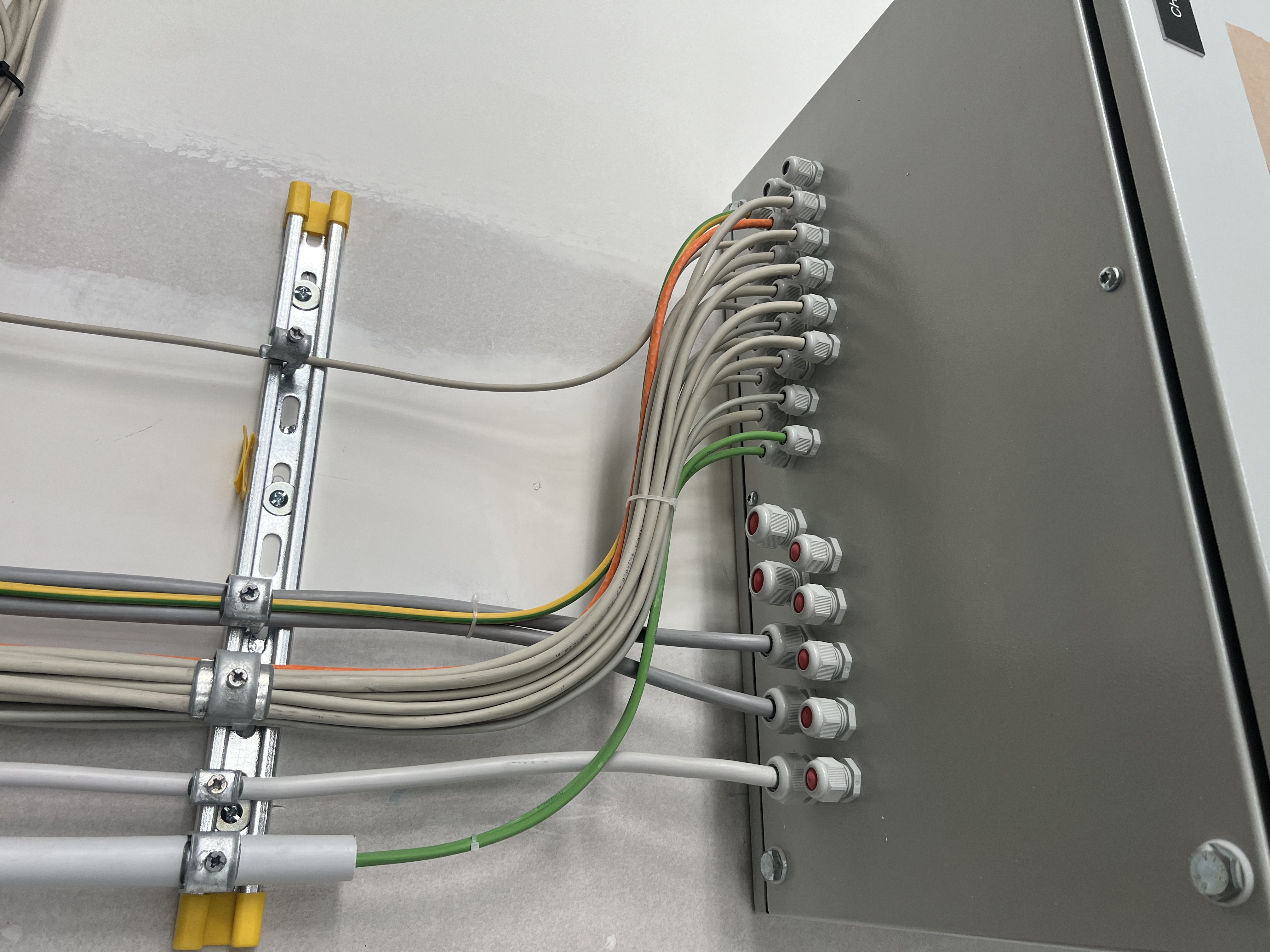

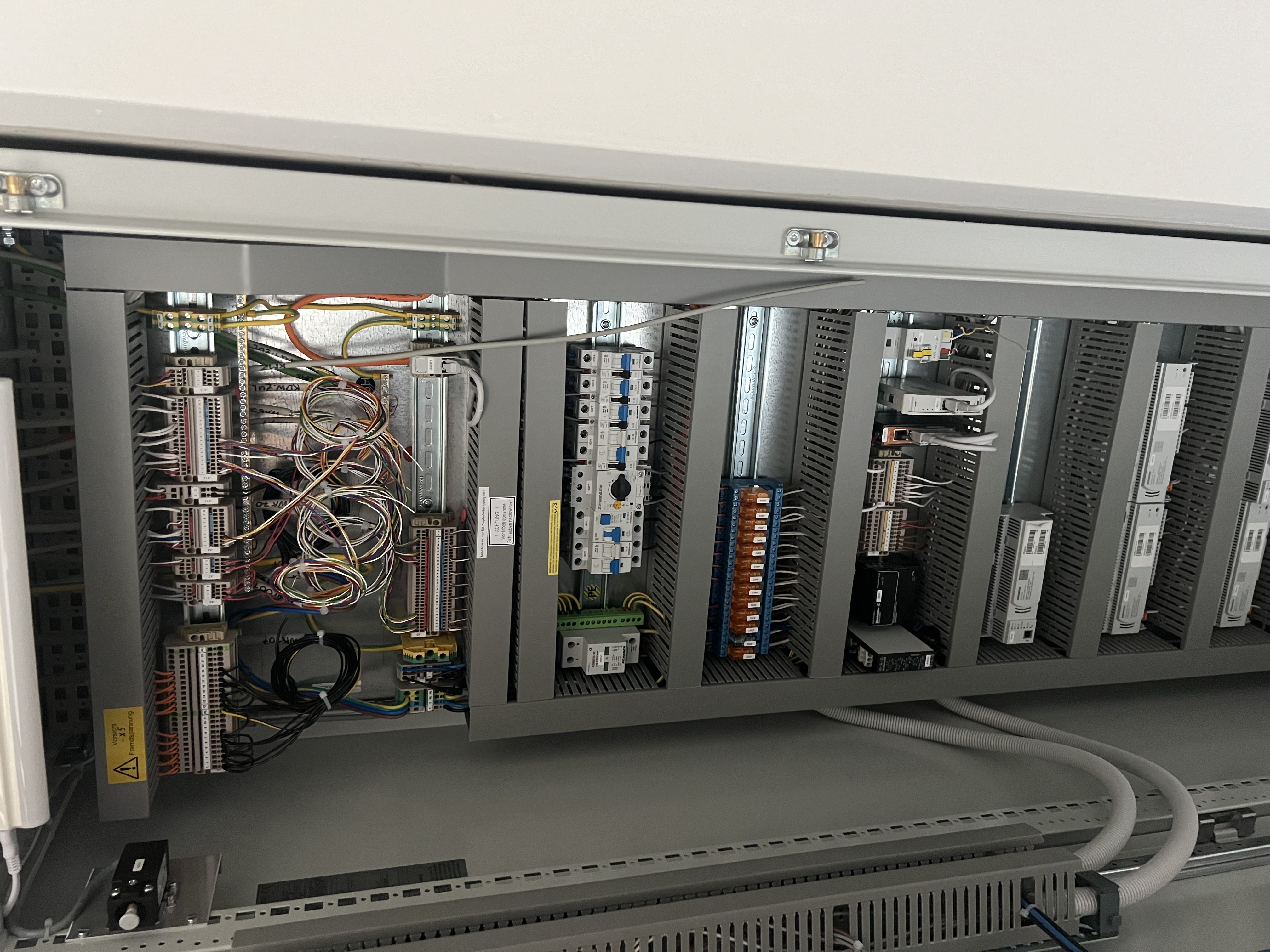

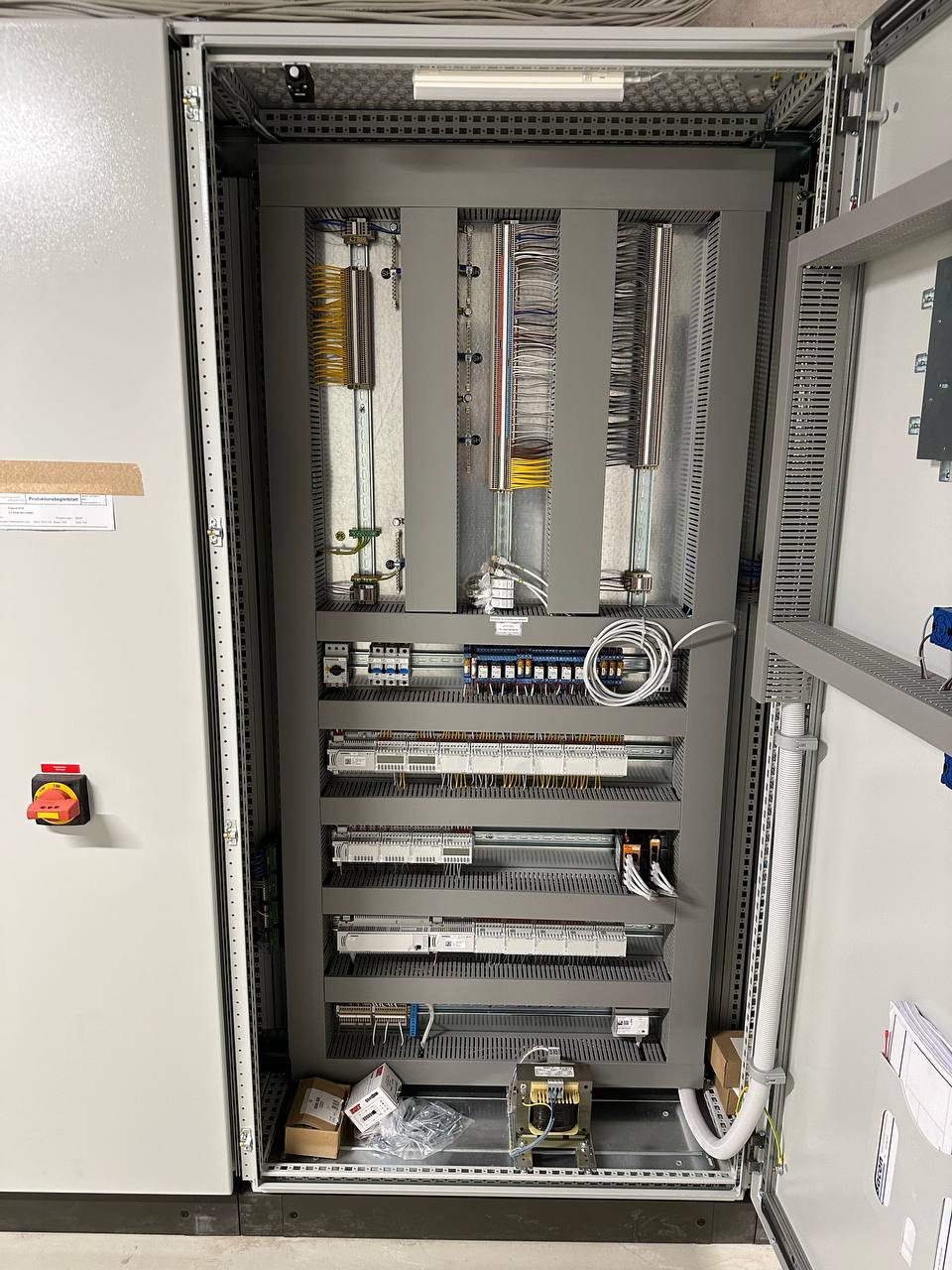

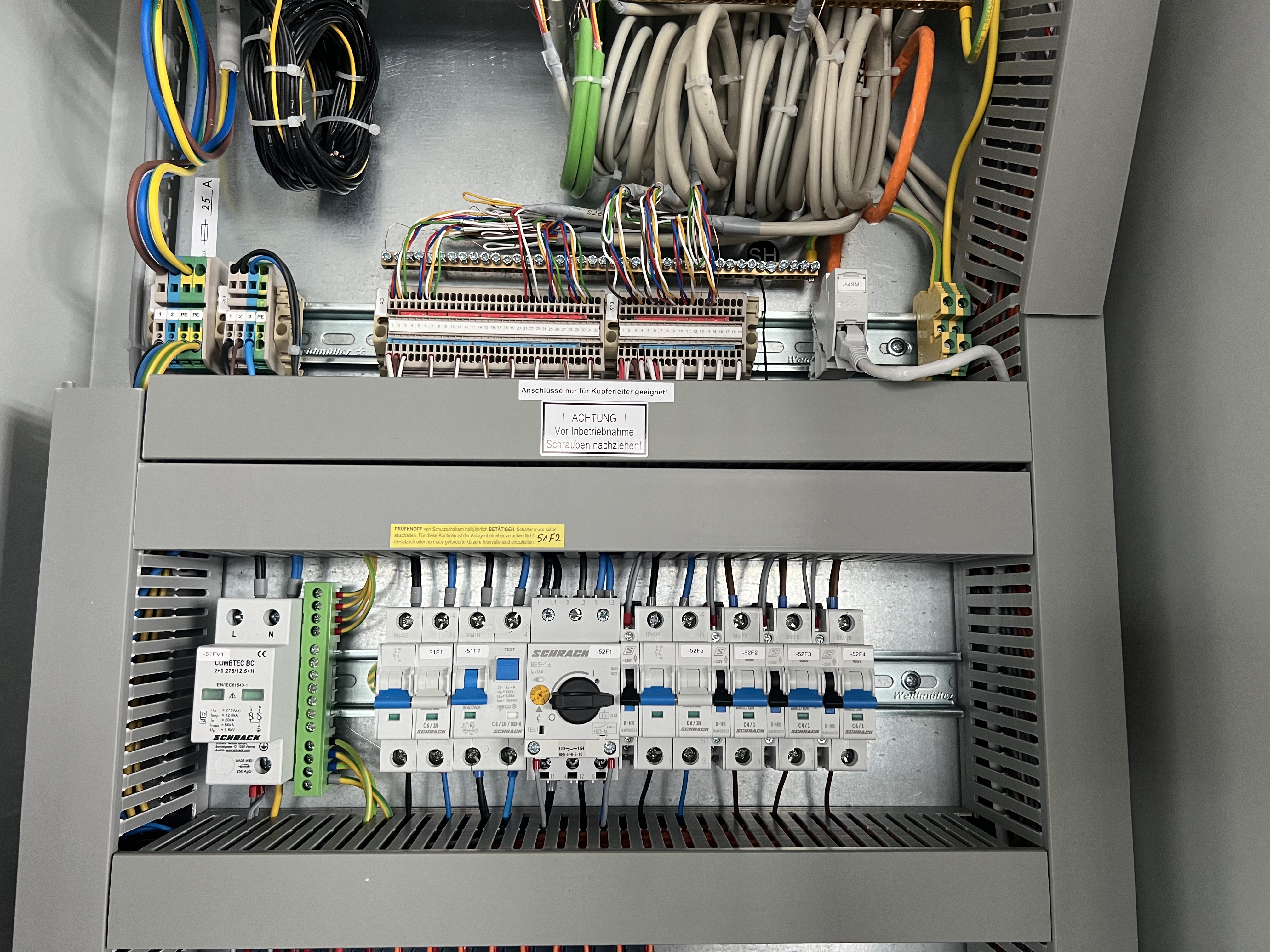

DDC Panels (Direct Digital Control)

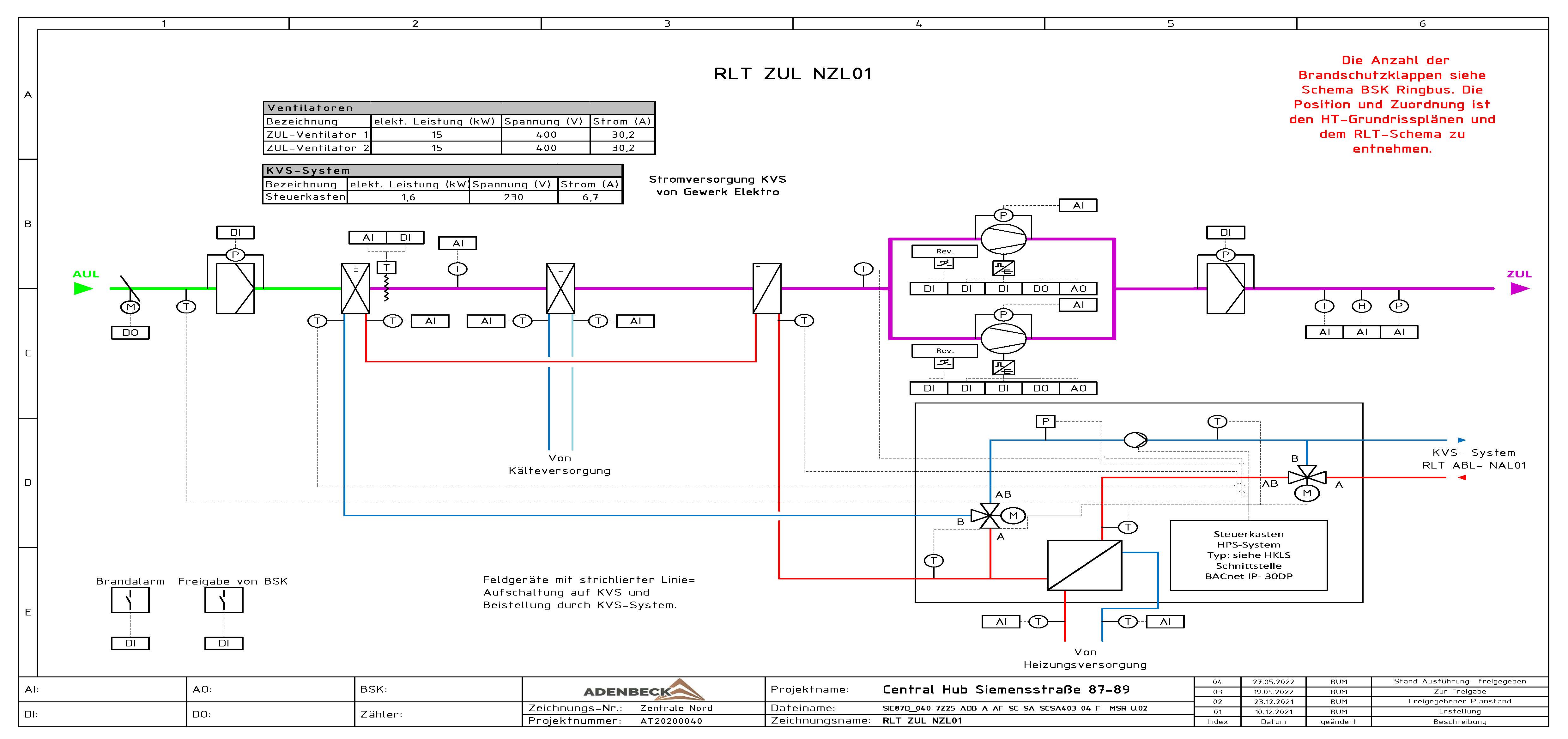

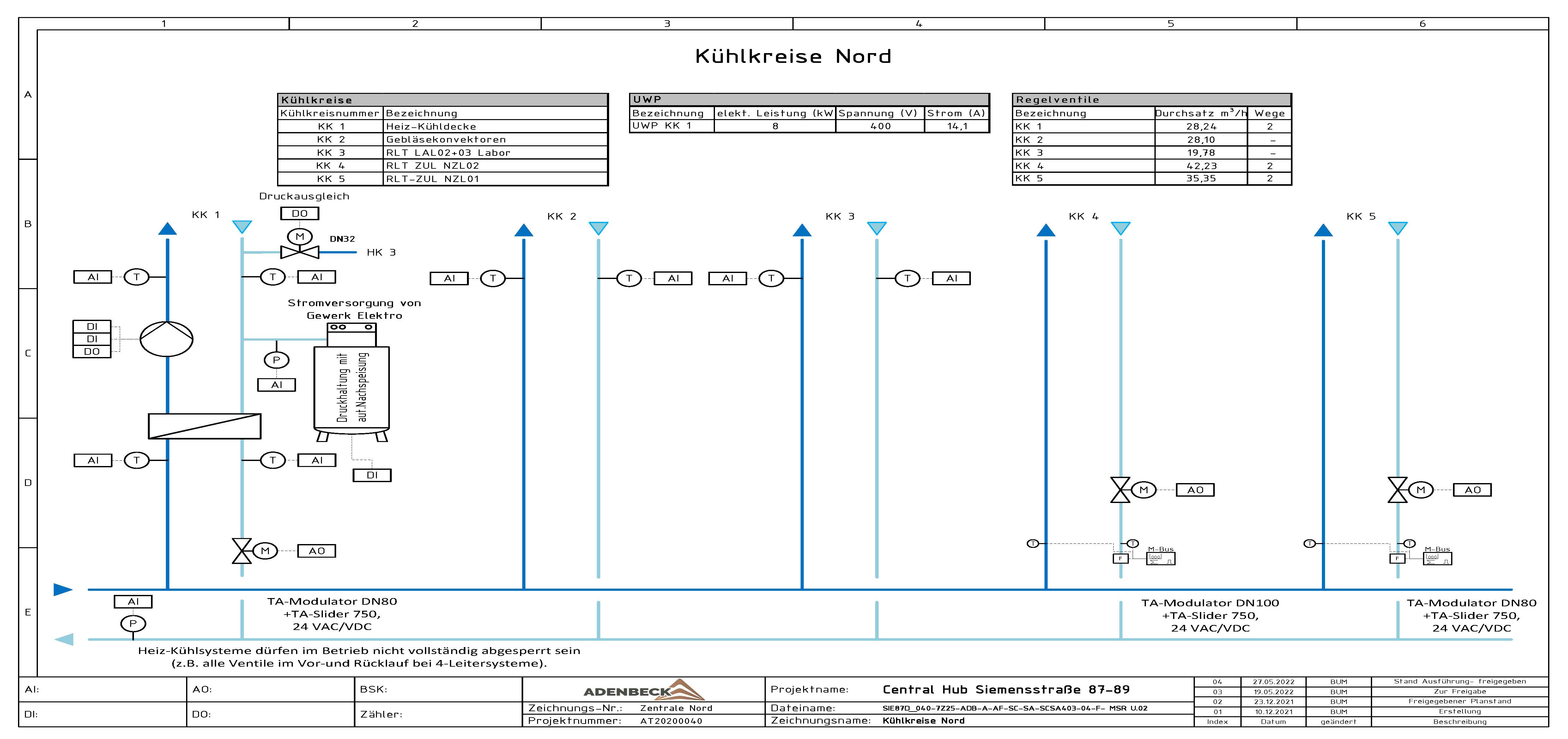

Plant Automation (AA)

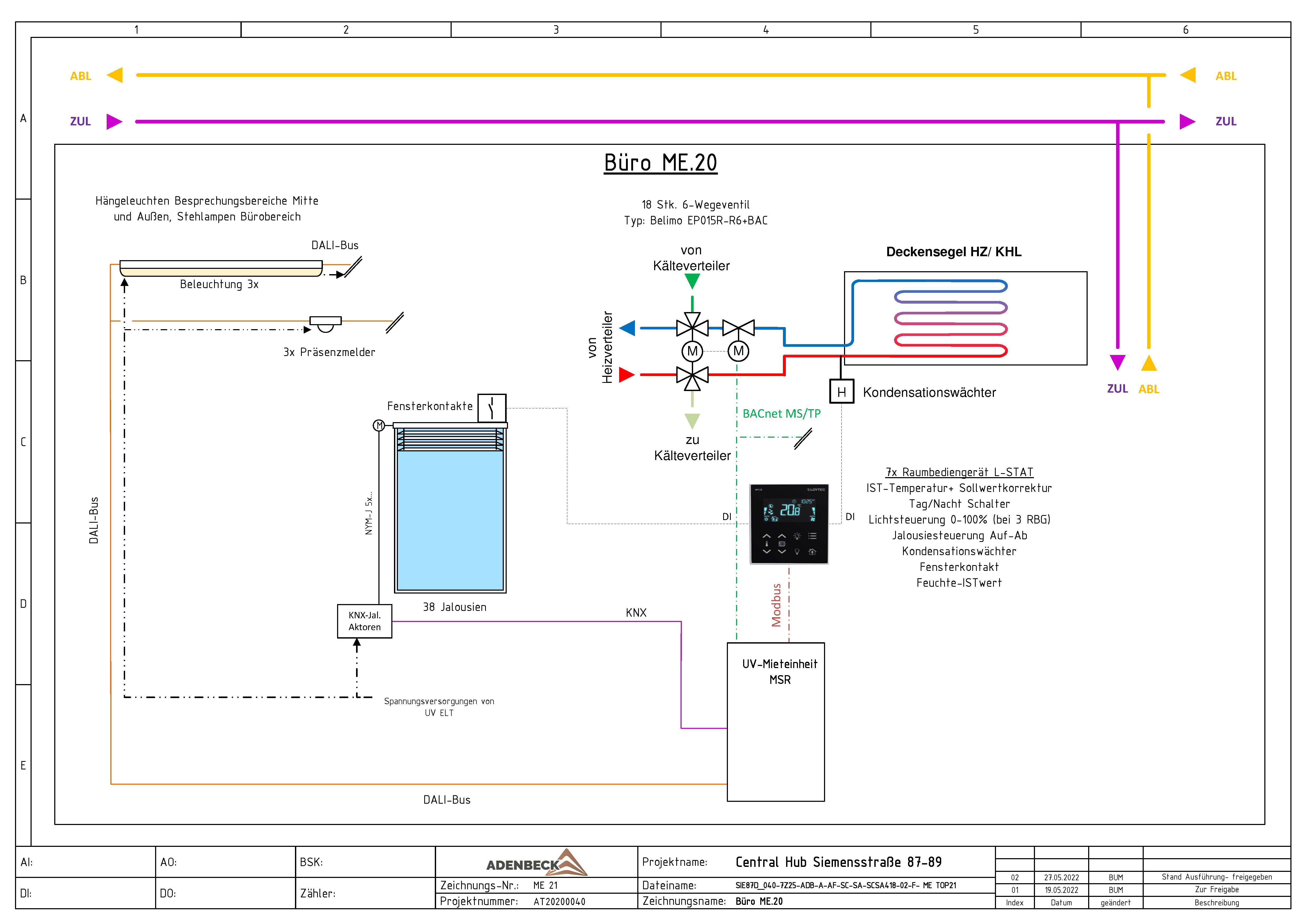

Room Automation (RA)

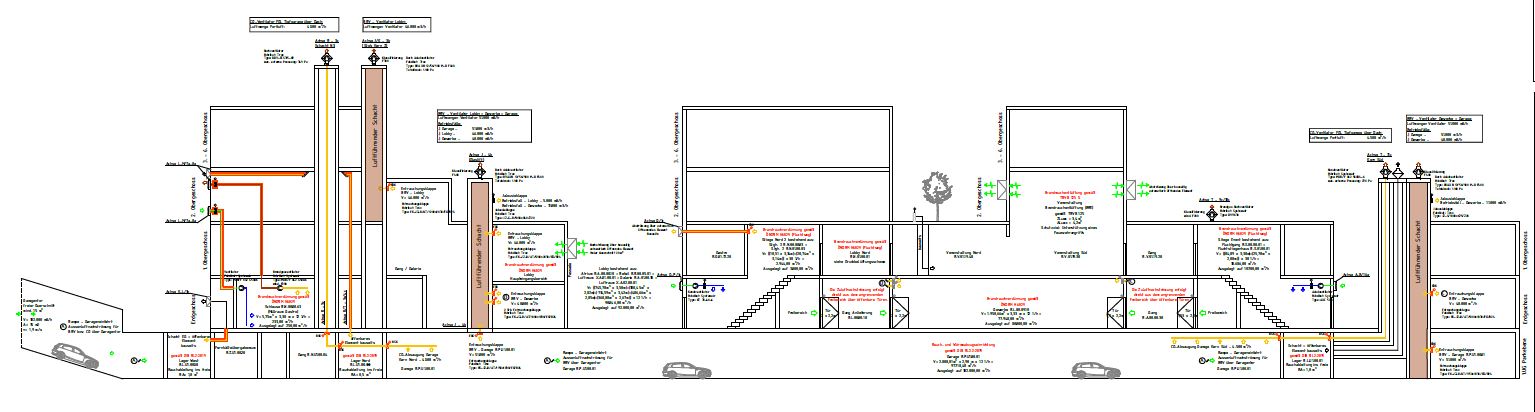

Smoke Control / Smoke Extraction (BRV)
CO Detection and Alarm System
BMS System
Field Devices

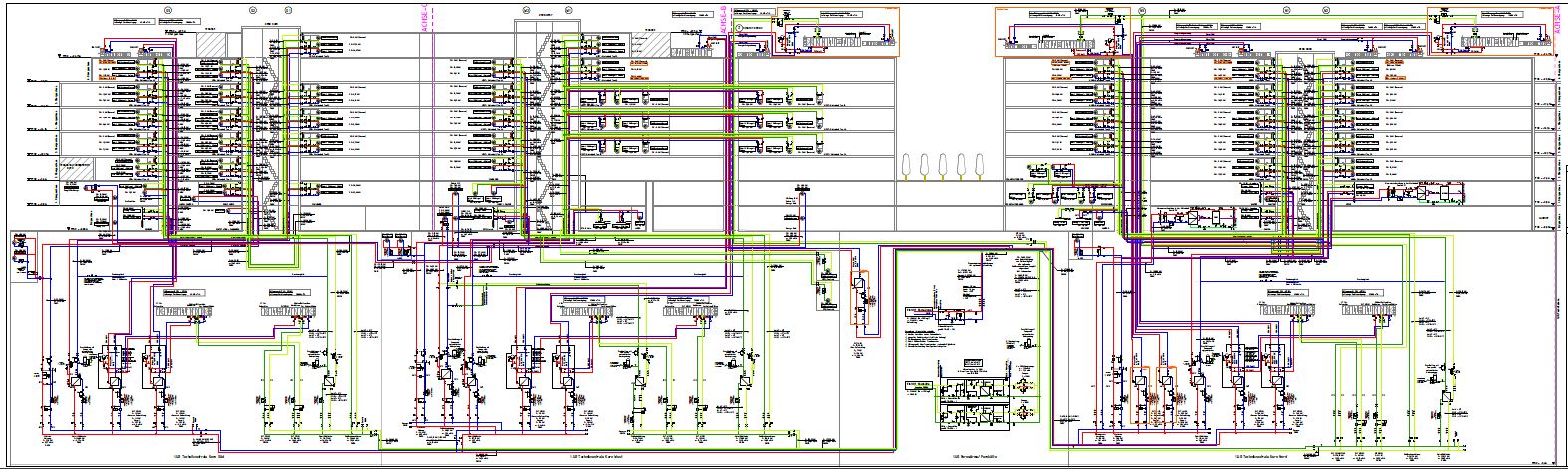

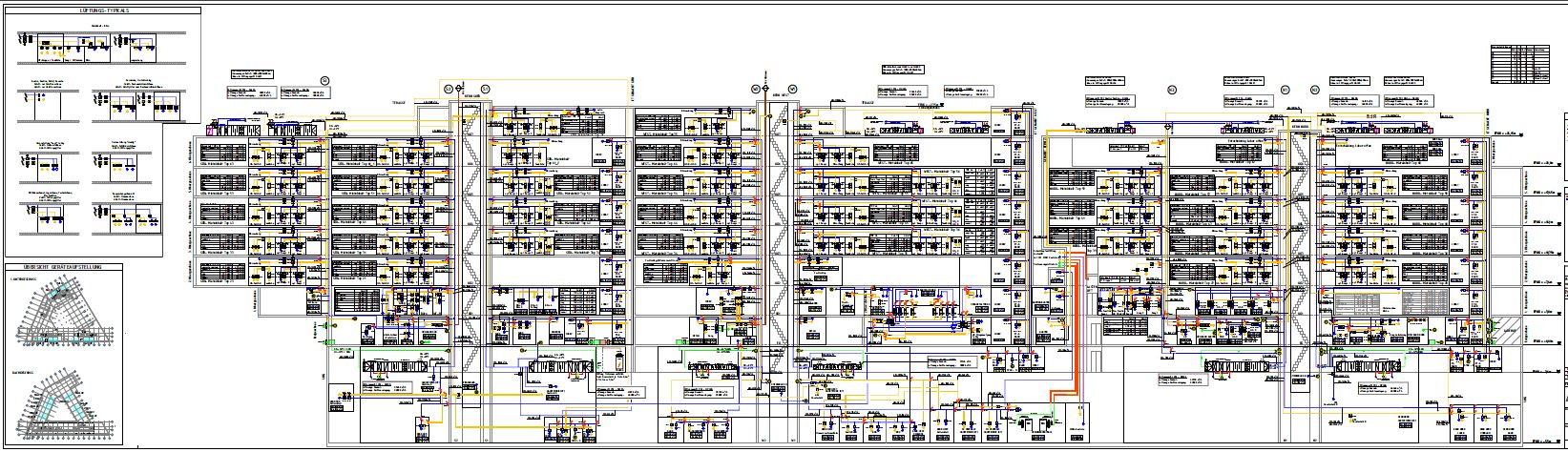

Automation Technical Solution / System Architecture:

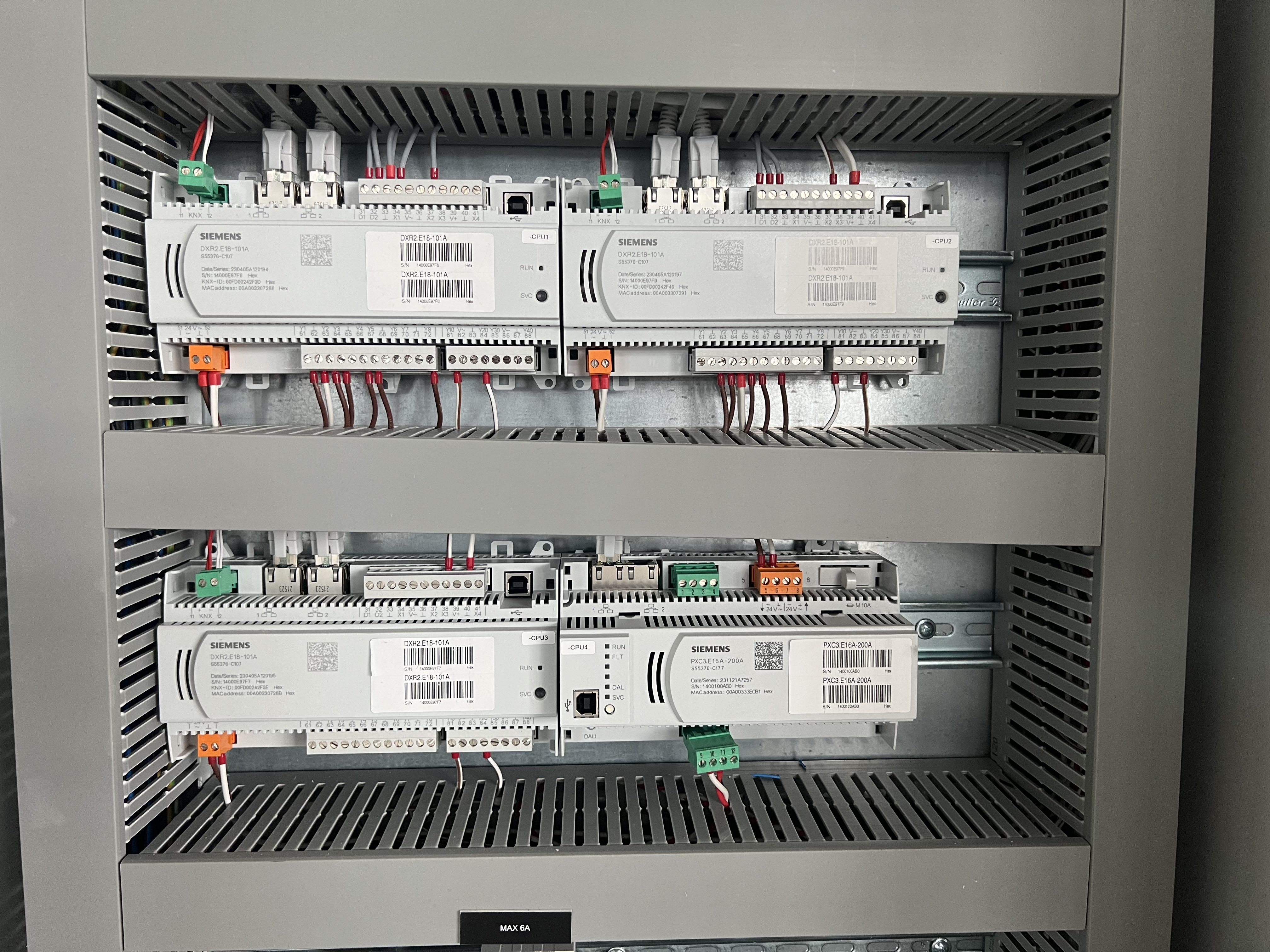

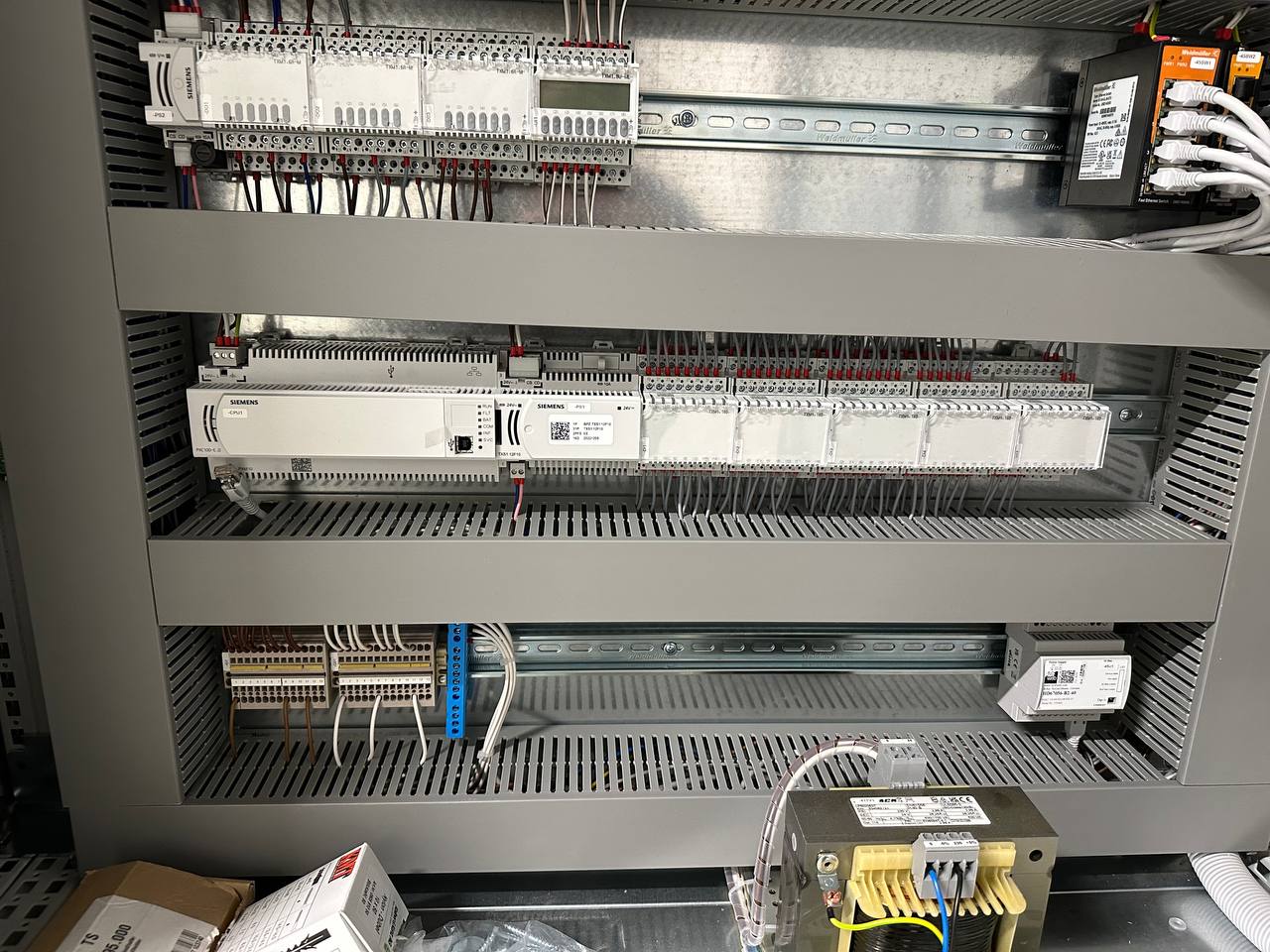

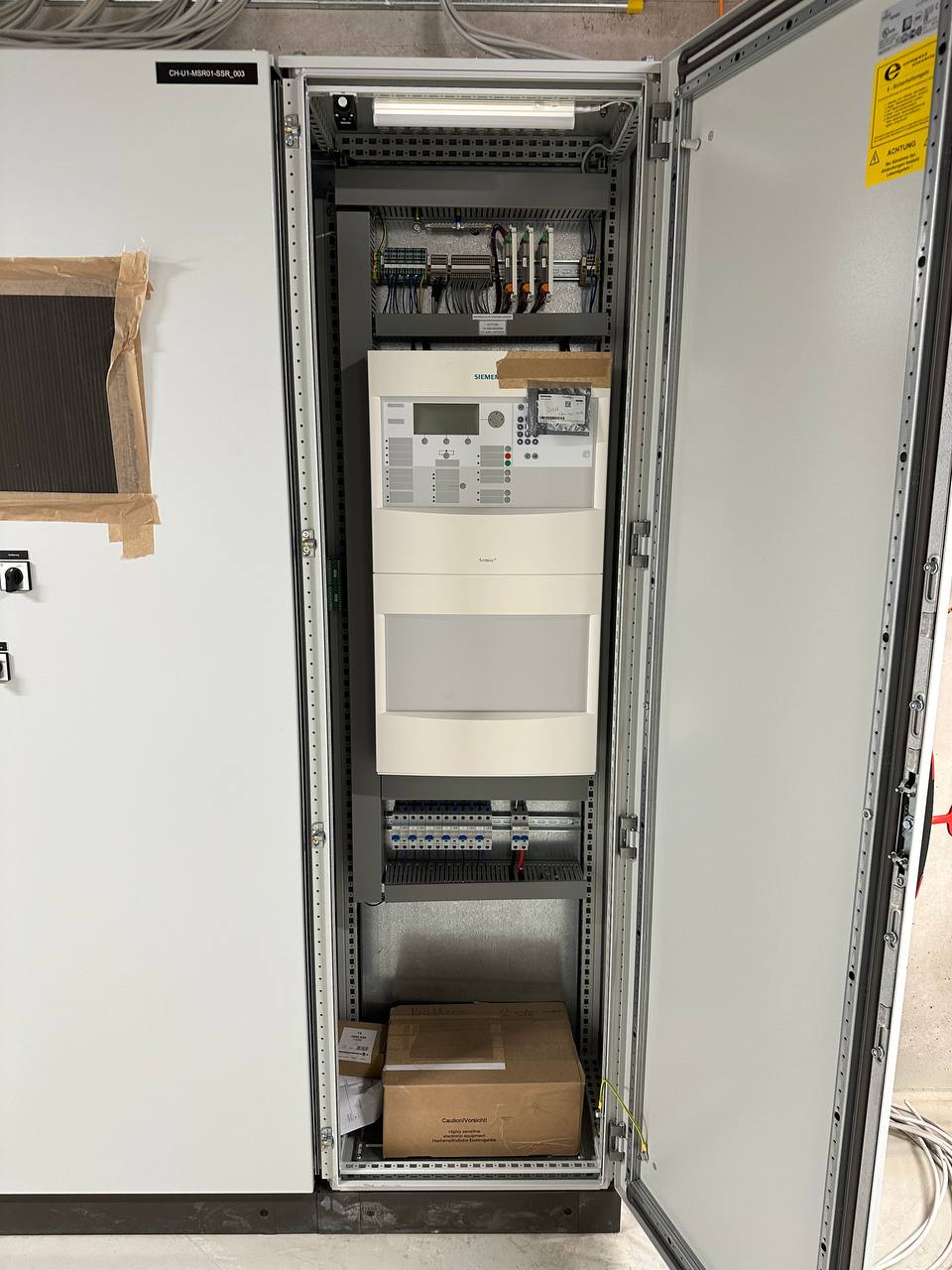

Central Equipment: Siemens Desigo™ PXC, PXC3.E,DXR2.E, Siemens Sinteso FC2040, Siemens SINAMICS G120P
HMI: Siemens Desigo CC
Smoke Extraction Automation System: Agnosys Controller BRC, AGNOSYS Serie F BR
COMMUNICATION: BACnet/IP, Modbus-RTU, KNX, DALI, MBus, BusRing
