HON07

Domodedovo Airport Terminal T2

Electrics and Automation of HVAC and Lighting Systems, Fire Alarm System (FAS). Application SW and Commissioning. Dispatching System and Completion of Commissioning Works

Project Details

Year of Execution: 2020-2022

Facility: Moscow Airport Domodedovo Terminal T2

Location: Domodedovo, Moscow region, Russia

Contract Price Level: $1M+

Key Project Stakeholders:

End Customer: Development & Construction Management (DCM)
General Contractor: Ant Yapı Sanayi ve Ticaret A.Ş.
Automation and Security Systems: Honeywell

Scope of Supply:

EBI Licences
Services: Application SW & Commissioning

Project Description:

The Terminal T2 Automation Project was started by Honeywell in 2015. During the COVID-19 pandemic, the project was put on hold. After the pandemic, the project was restarted. The main task was to complete the remaining commissioning and dispatching system works as quickly as possible.

My Role:

Project Manager responsible for project scope, schedule, and financial performance

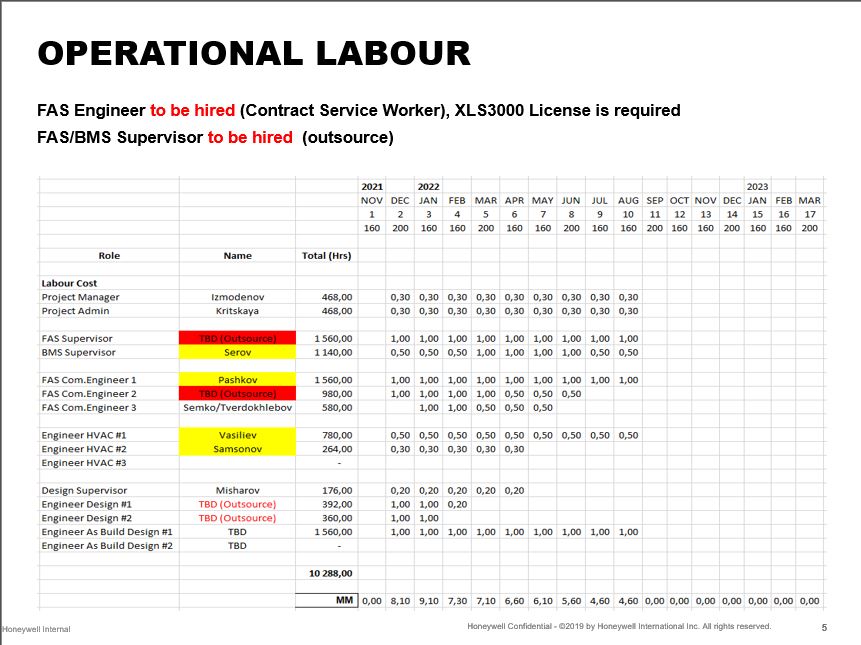

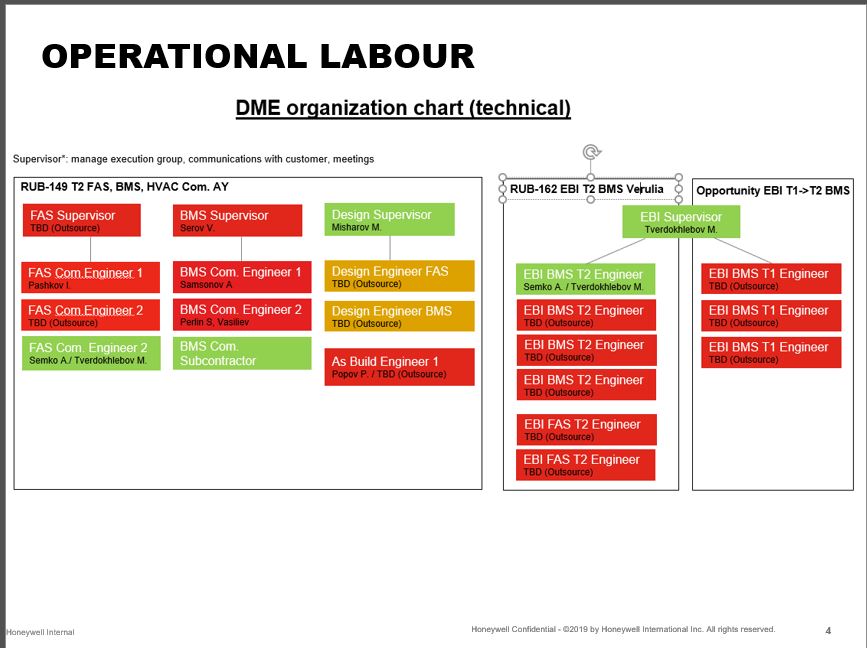

Project Team:

5 Hardware Design Engineers
6 Commissioning Engineers (3 FAS, 3 BMS)
2 Site Managers (FAS & BMS)
1 Project Administrator (Office)
1 Project Administrator (Site)
1 Functional Manager (Procurement and Logistics)

Subcontractors:

N/A

Technical Description:

project includes:

Electrical & Automation package:

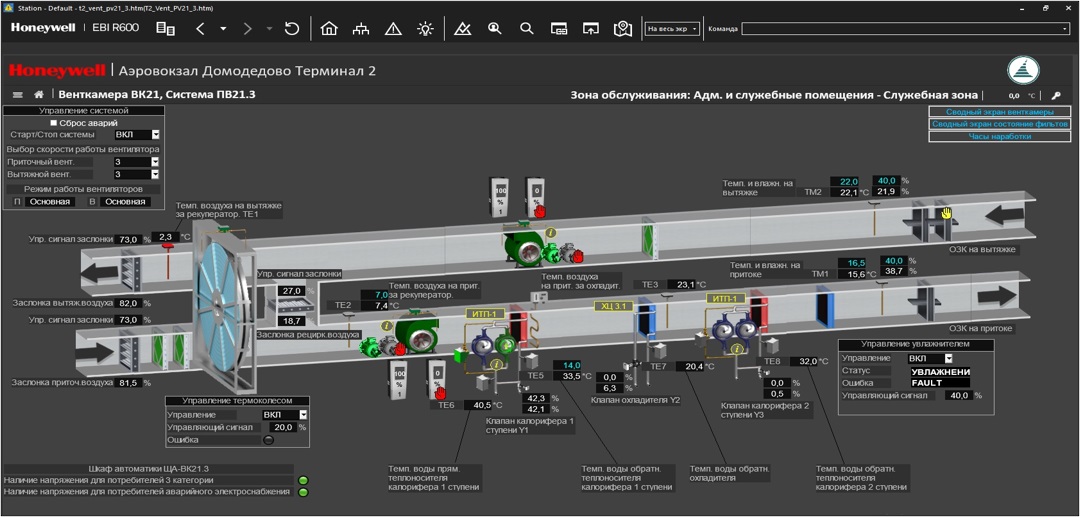

AHUs control system (24 ventilation rooms)
IHP control system (2 individual heating plants)
FCUs control system (~ 700 FCUs)
BMS (heating conrol system, water supply and Drainage control system, smoke detection control system, electrical distribution monitoring system, Leak Detection System)
Lighting control system
Fire Alarm (21 Fire Alarm Panel)

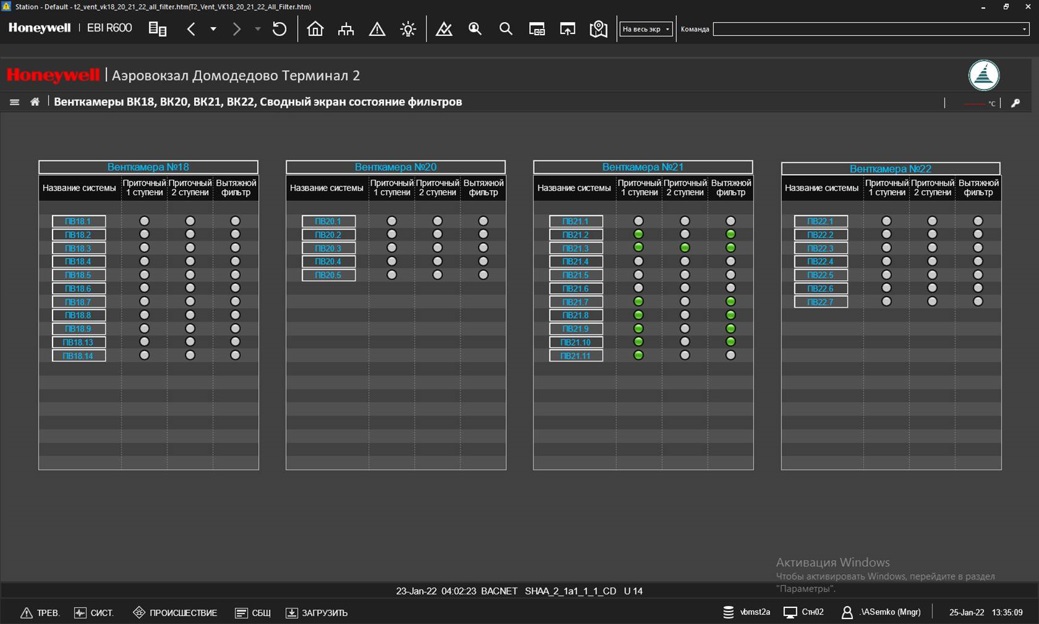

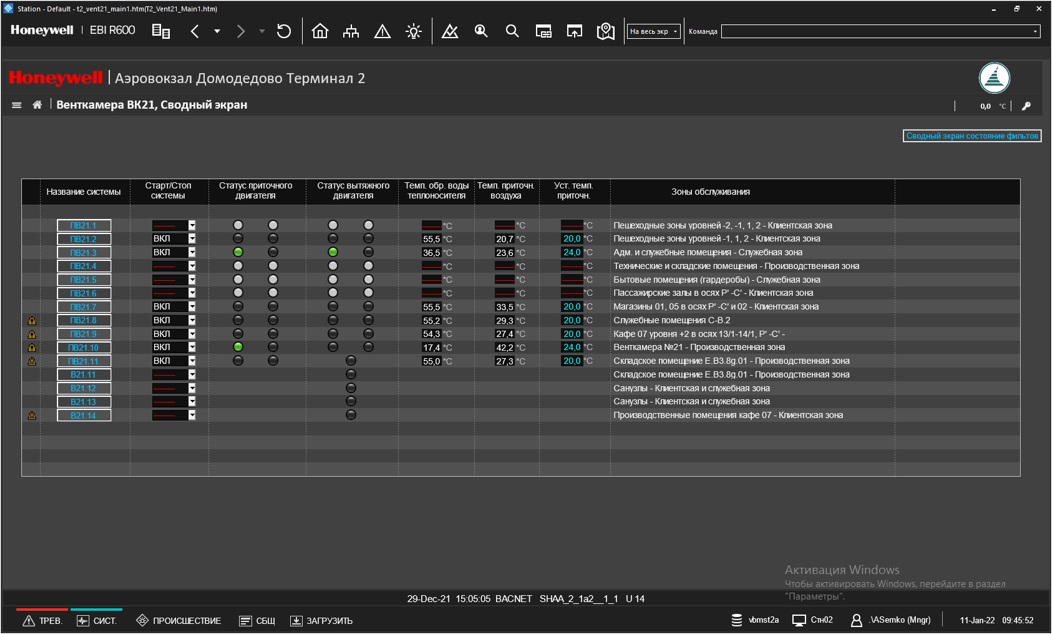

Dispatching System (EBI) ~60 000 points

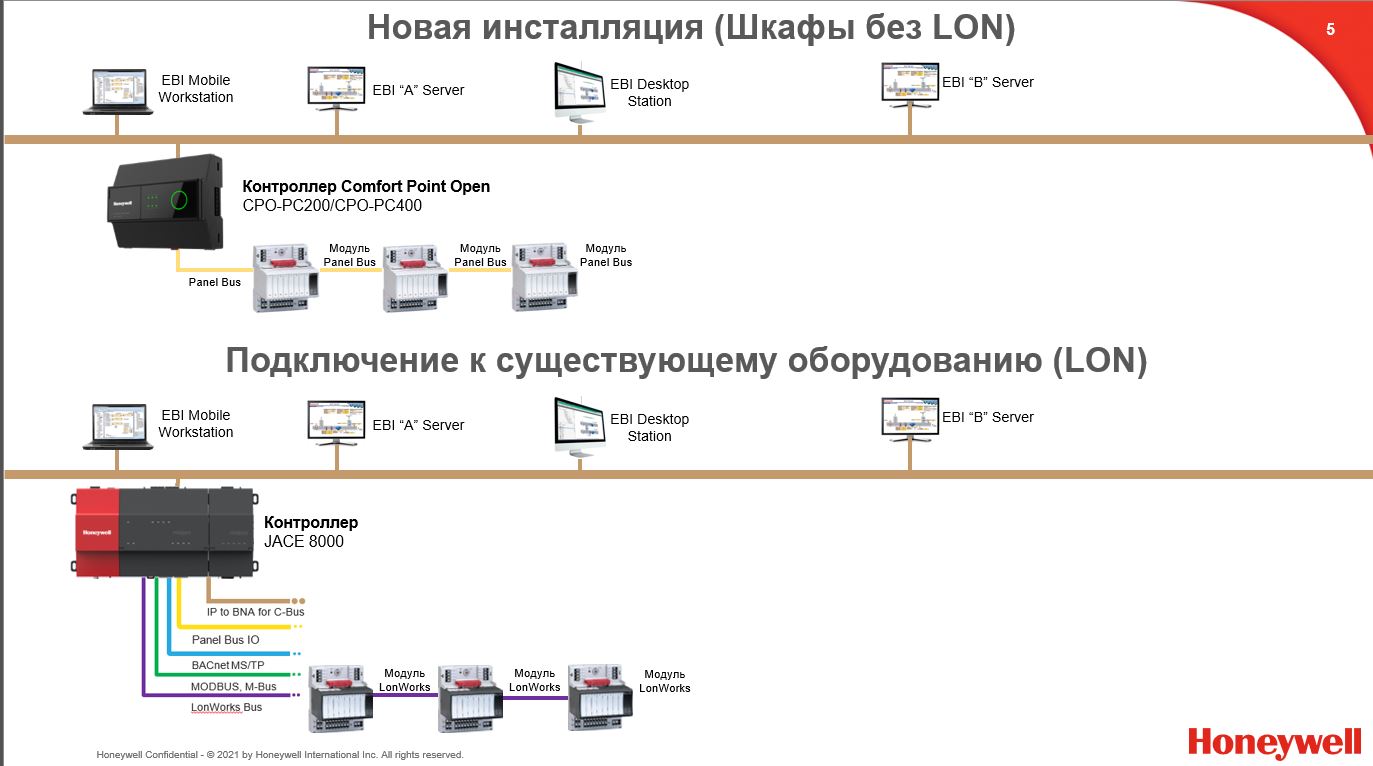

Automation Technical Solution / System Architecture:

DDC: Excel Web II XL2000B2A, Saia Burgess PCD2.M4560 (Lighting), XLS 3000 (FAS)

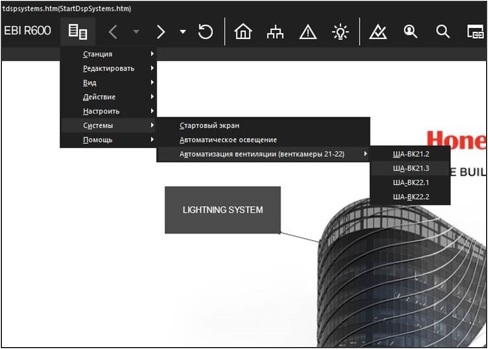

HMI System: Honeywell EBI R610 (Enterprise Buildings Integrator)
Communication Networks and Protocols: BACnet, LON, Ethernet, DALI
