Amur Gas Processing Plant (AGPP). E&A of HVAC

Electrics and Automation system of HVAC. Engineering, Supply, Commissioning

Project Details

Year of Execution: 2019-2022

Facility: New Amur Gas Processing Plant. Utilities and Offsites (U&O)

Location: Svobodny, Amur Region, Russia

Contract Price Level: $4M+

Key Project Stakeholders:

End User: Amur Gas Processing Plant (AGPP)
Client: Maire Tecnimont, SINOPEC
Lead Designer: НИПИГАЗ
MEP Integrator: НИПИГАЗ
E&A: Honewyell

Scope of Supply:

Electrical and Automation Package
Services: Engineering, Assembly, Supply, and Commissioning

Project Description:

The construction of the Amur Gas Processing Plant (GPP) near Svobodny in the Amur Region started in October 2015. The Amur GPP is one of the largest natural gas processing plants in the world and one of the key projects in the Russian gas industry. The plant plays an important role in the treatment and processing of natural gas supplied to China through the “Power of Siberia” gas pipeline.

My Role:

Project Manager responsible for project scope, schedule, and financial performance

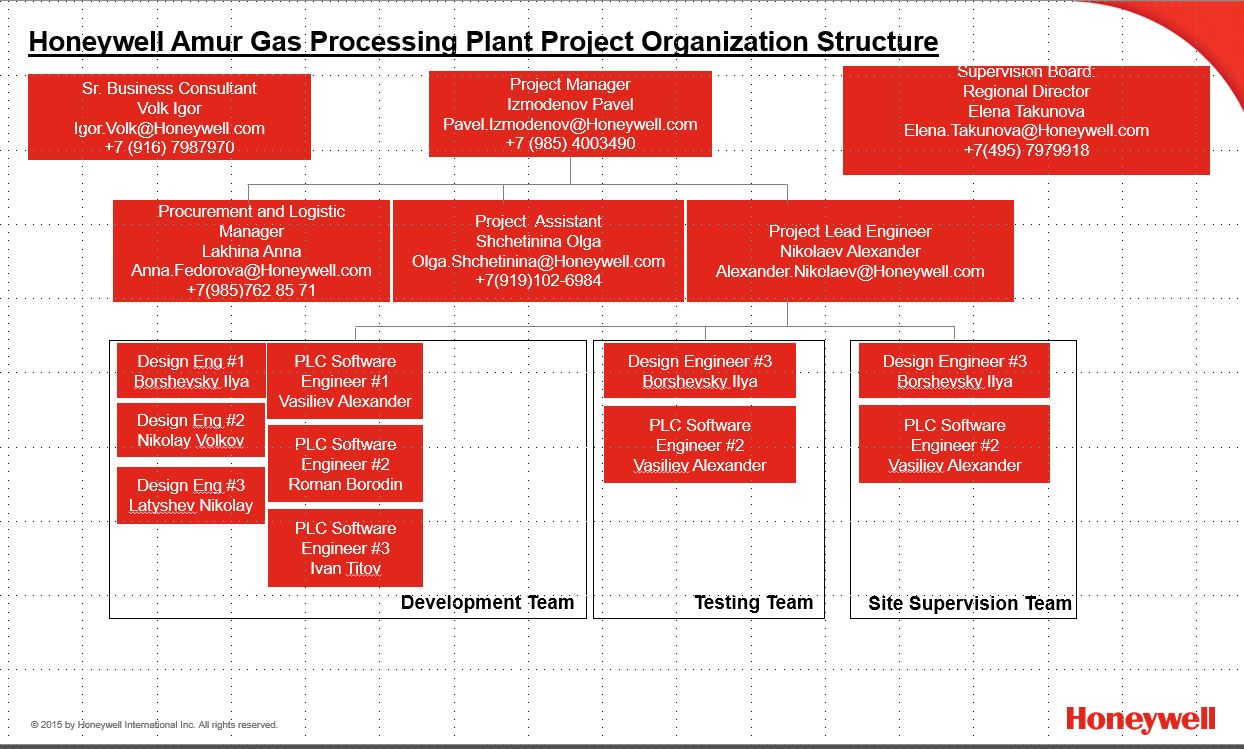

Project Team:

1 Lead Engineer
5 Project Engineers (Hardware)
5 Project Engineers (Software)
2 Technical Supervision Engineers
1 Project Administrator
1 Functional Manager (Procurement & Logistics)

Subcontractors:

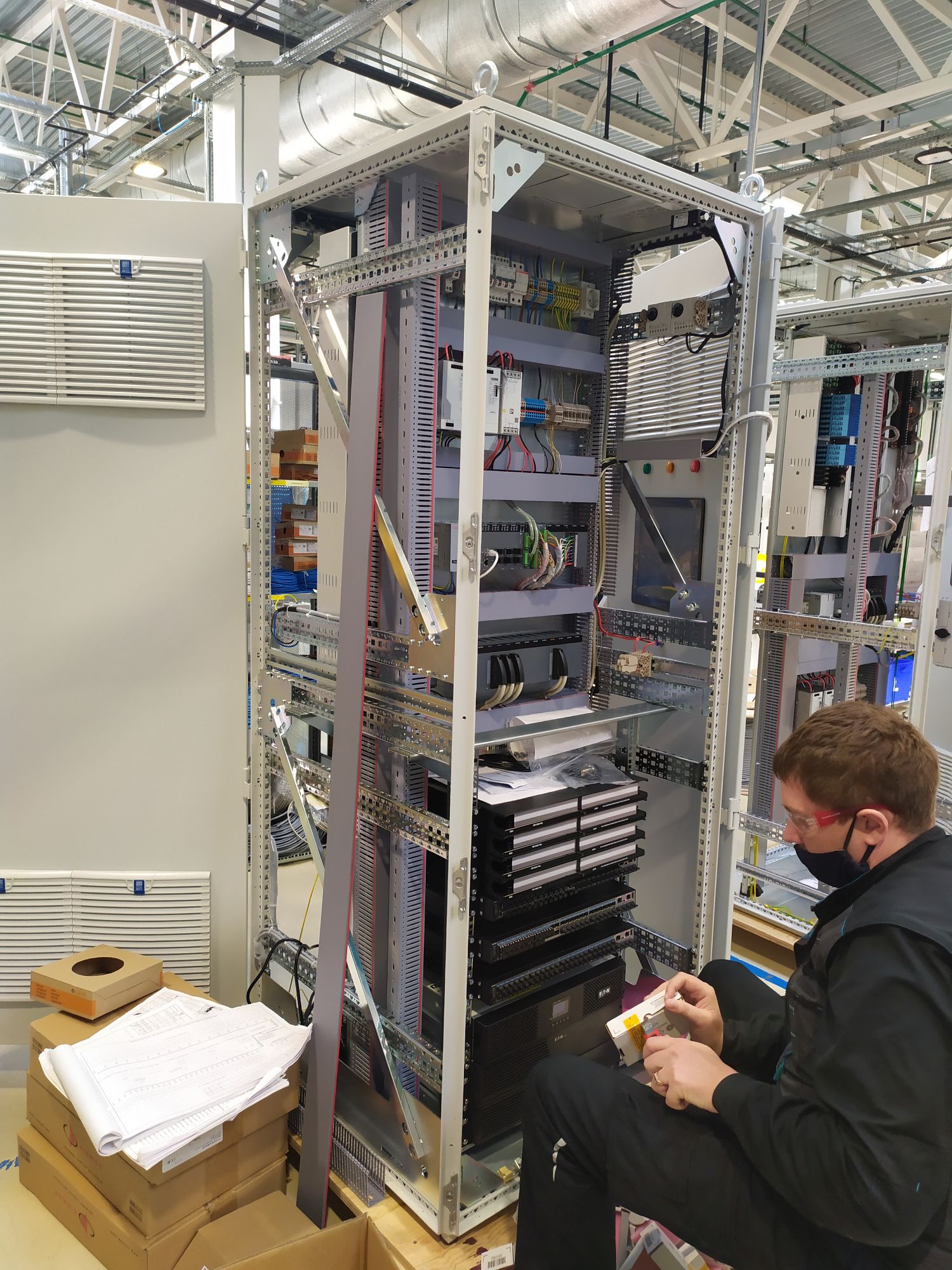

DDC Panels – Honeywell Factory, Lipetsk
Electrical Cabinets – Kvanta Group LLC, Montel LLC (Novosibirsk), Avatri LLC (Yekaterinburg)

Technical Description:

project includes:

Electrical & Automation package:

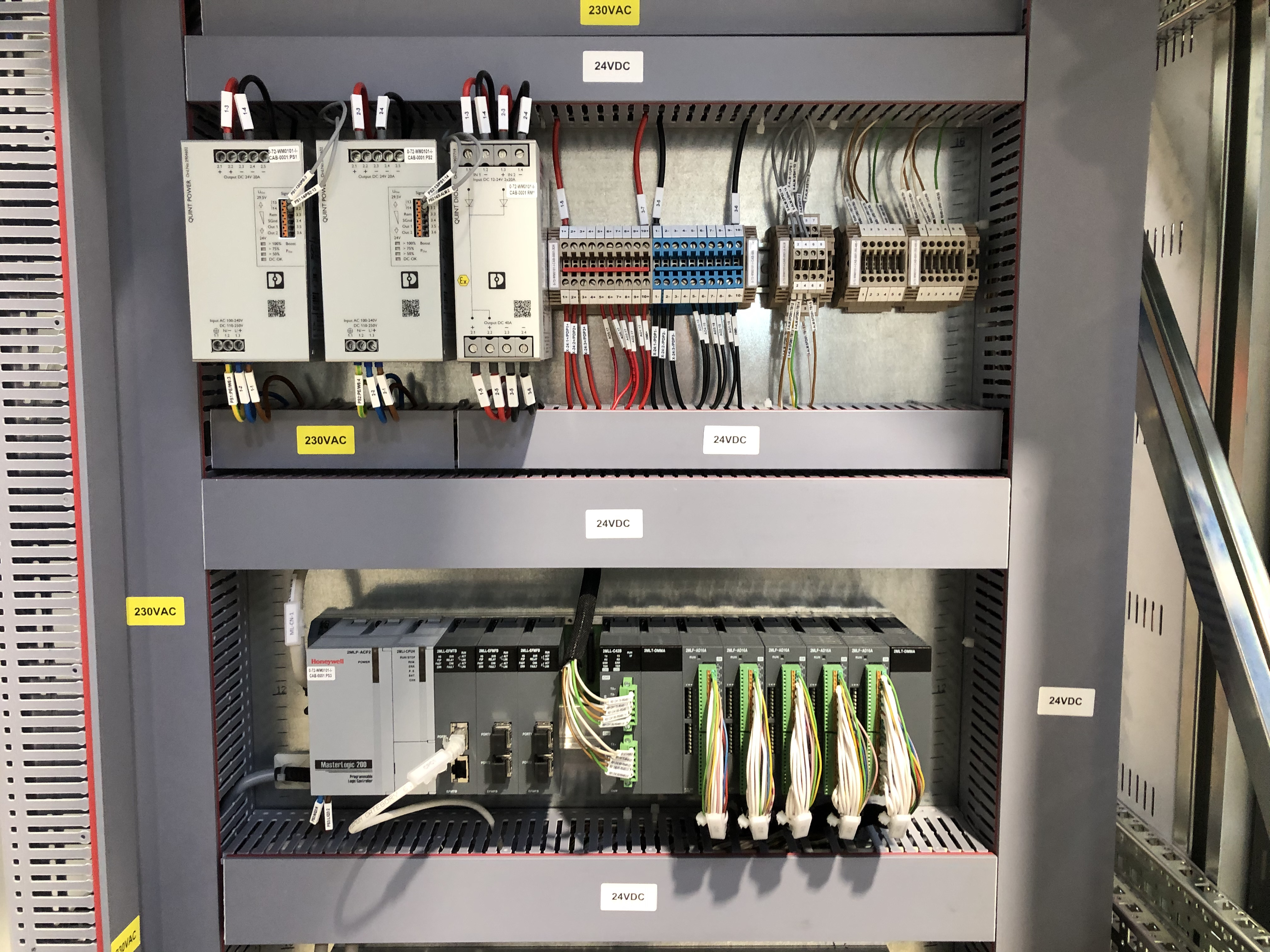

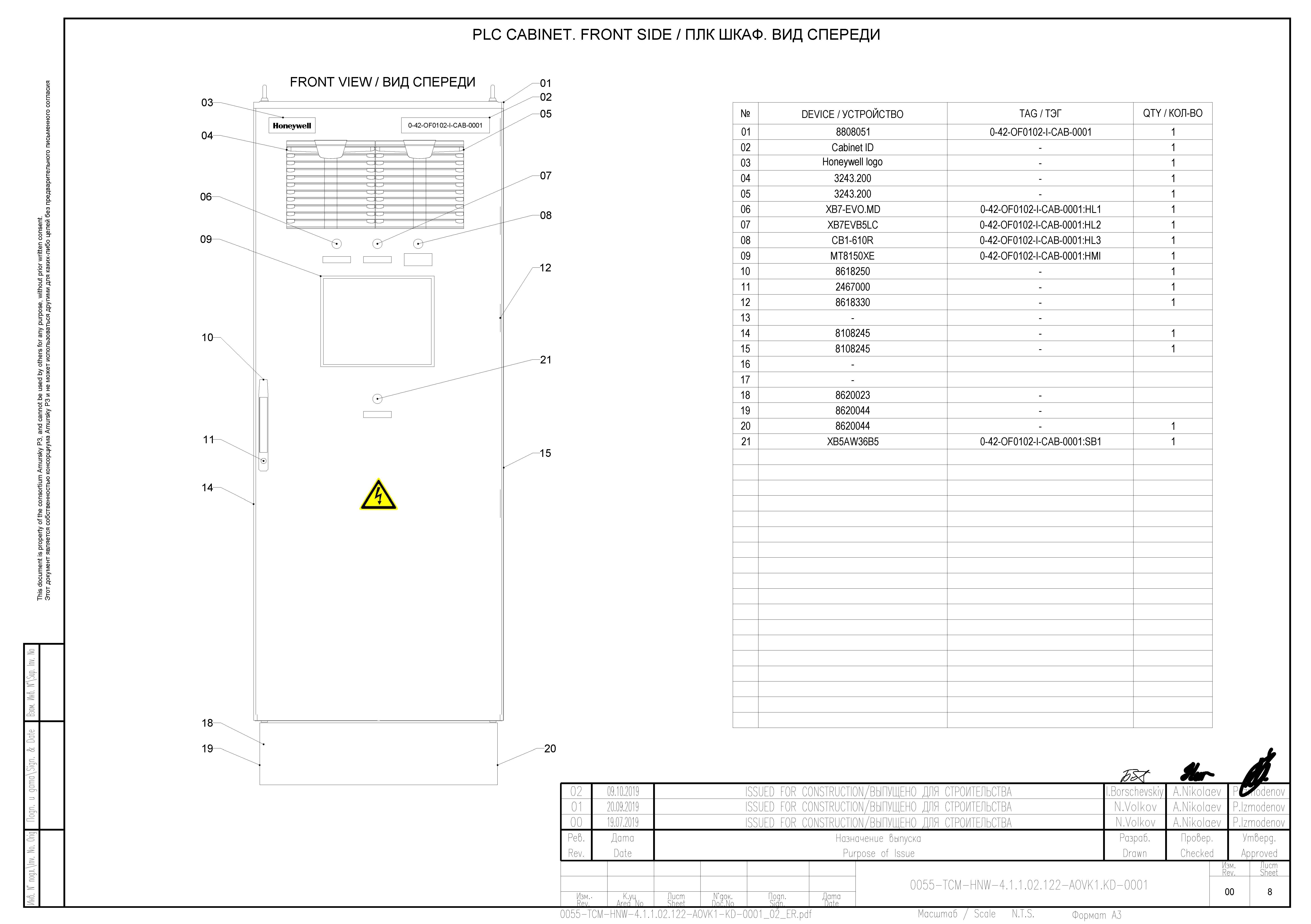

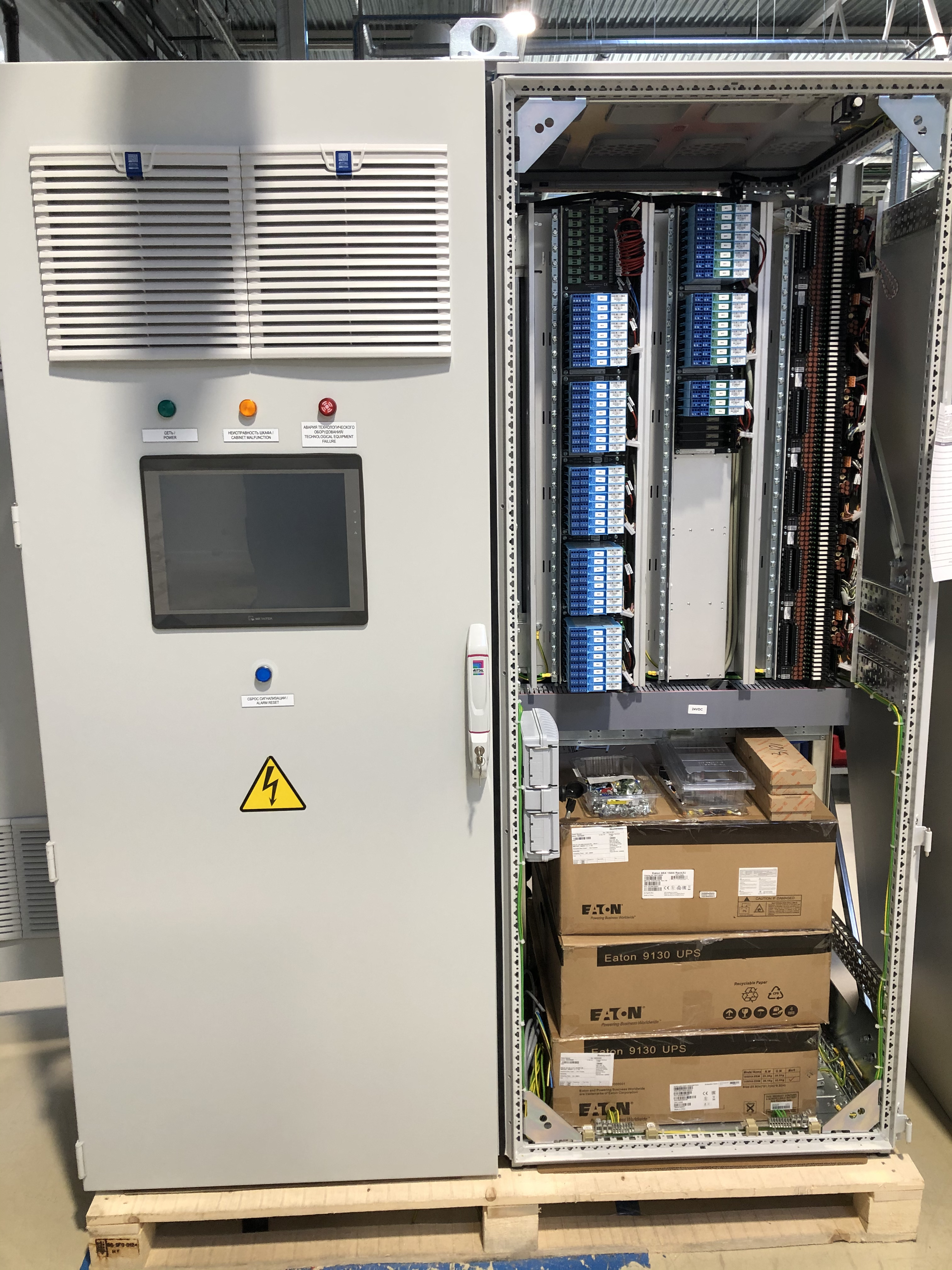

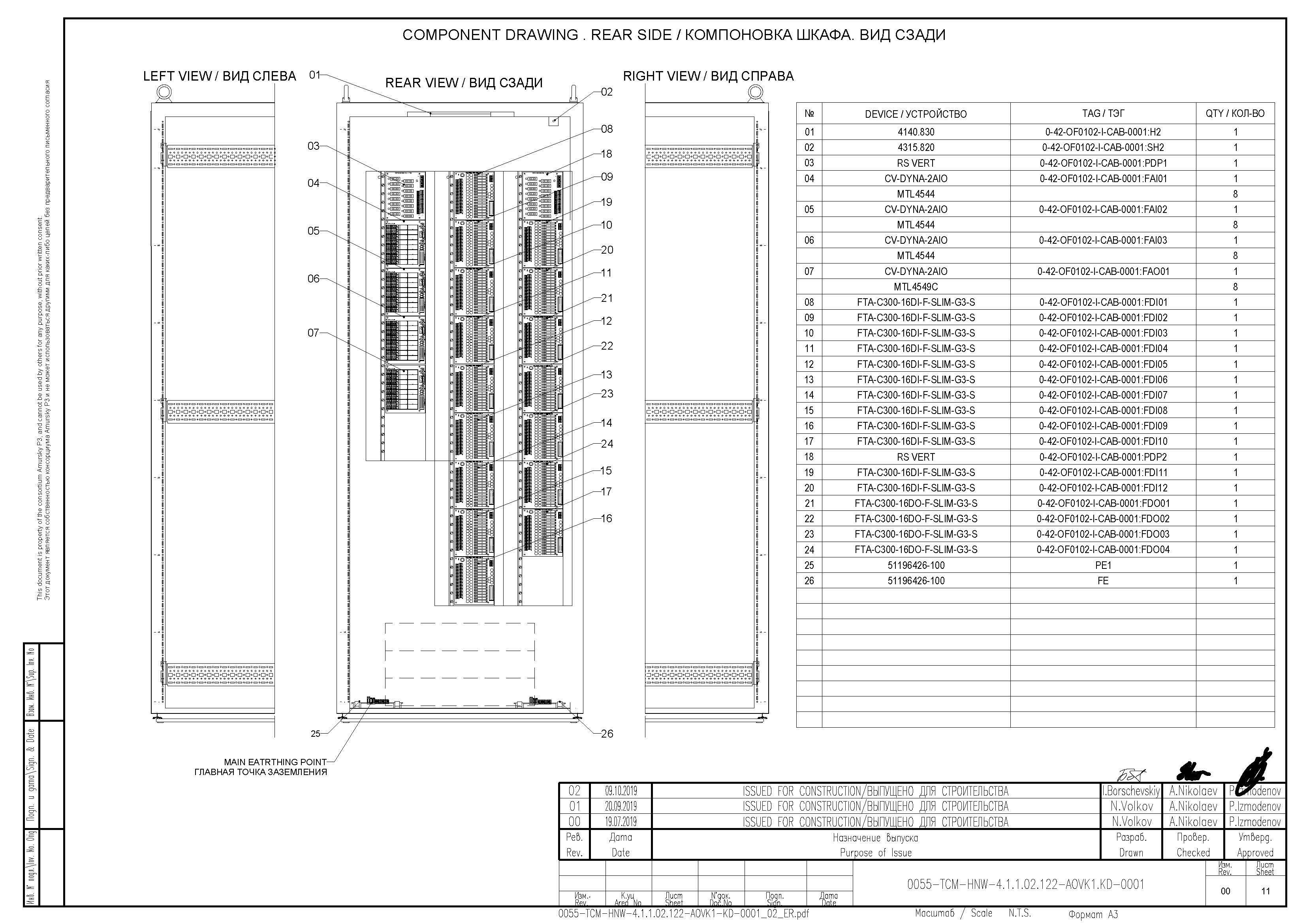

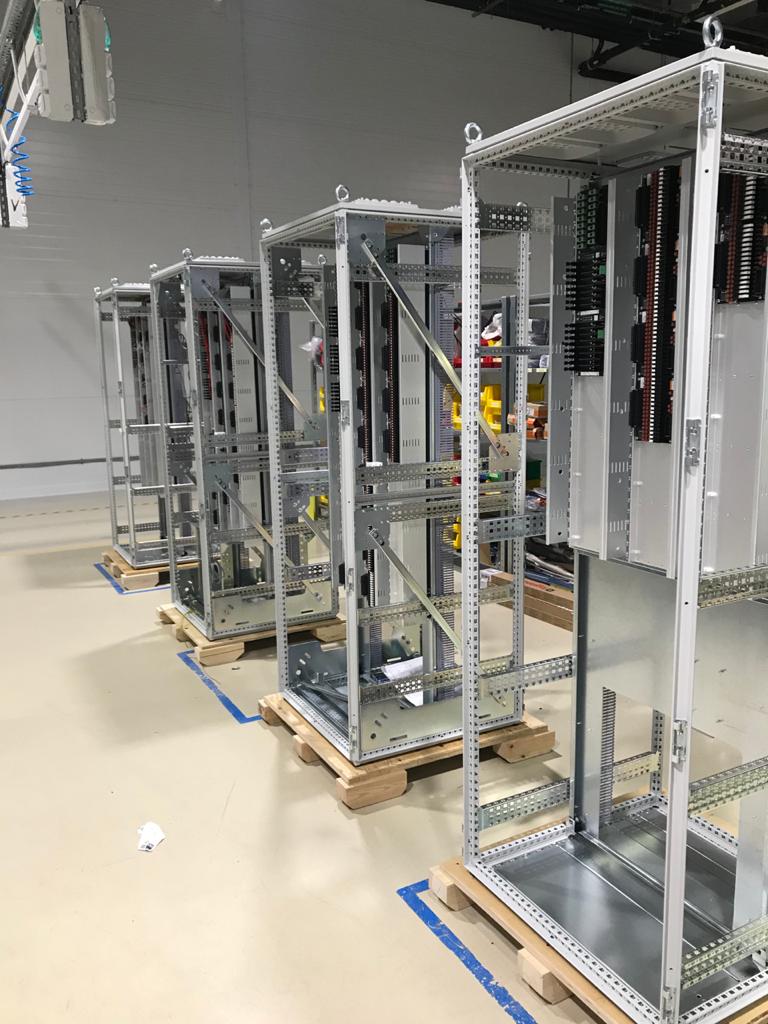

DDC Cabinets

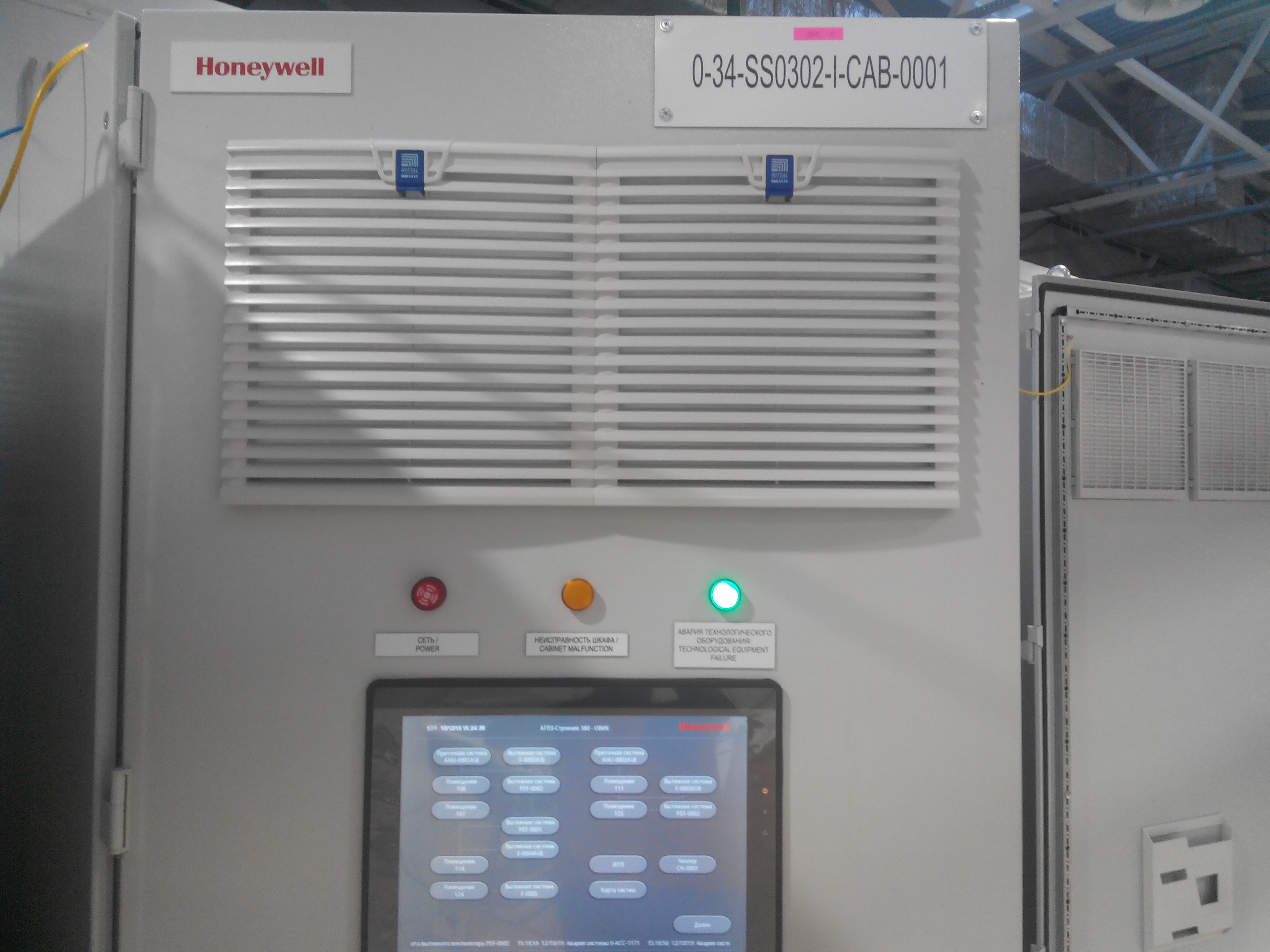

Local HMI

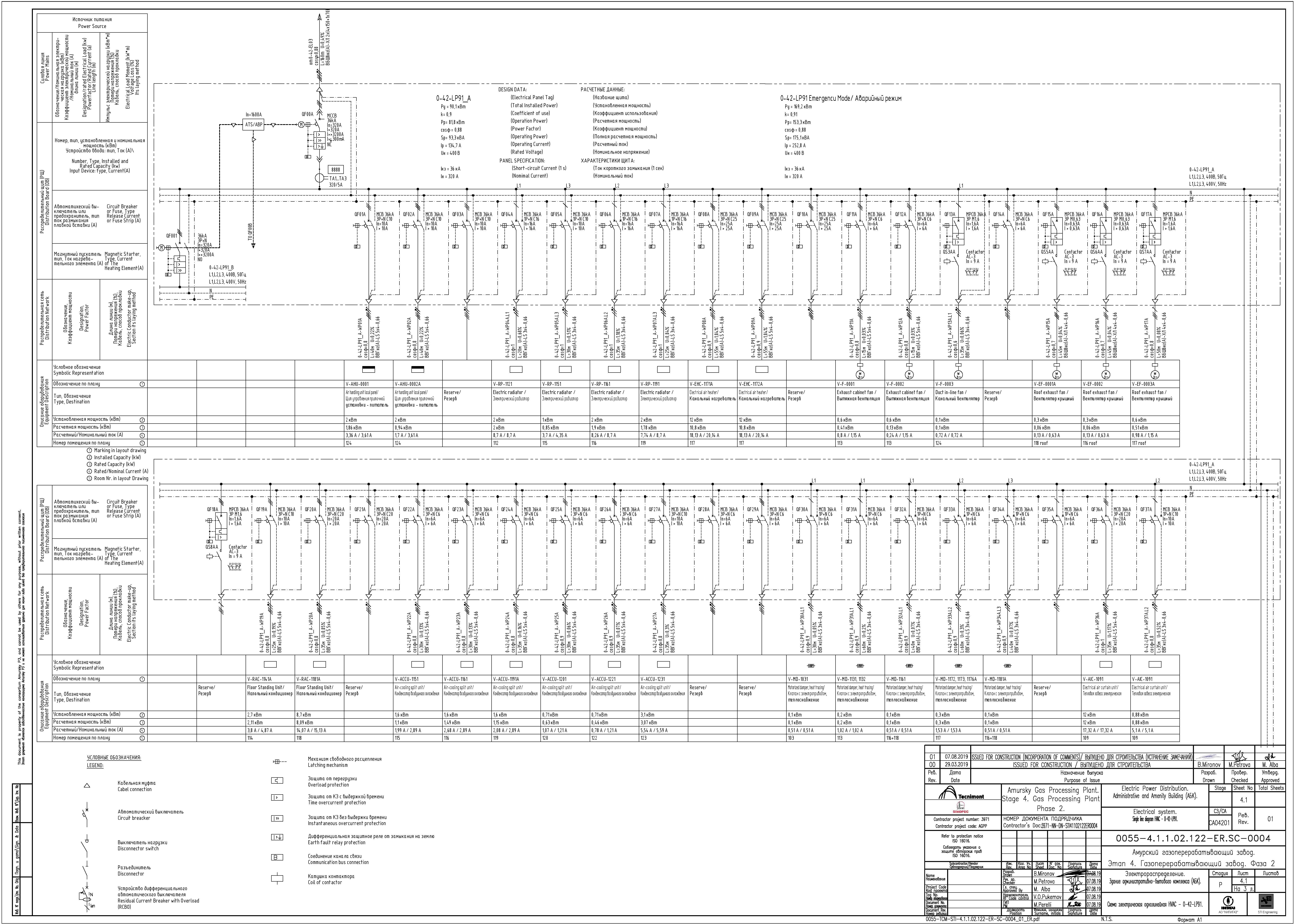

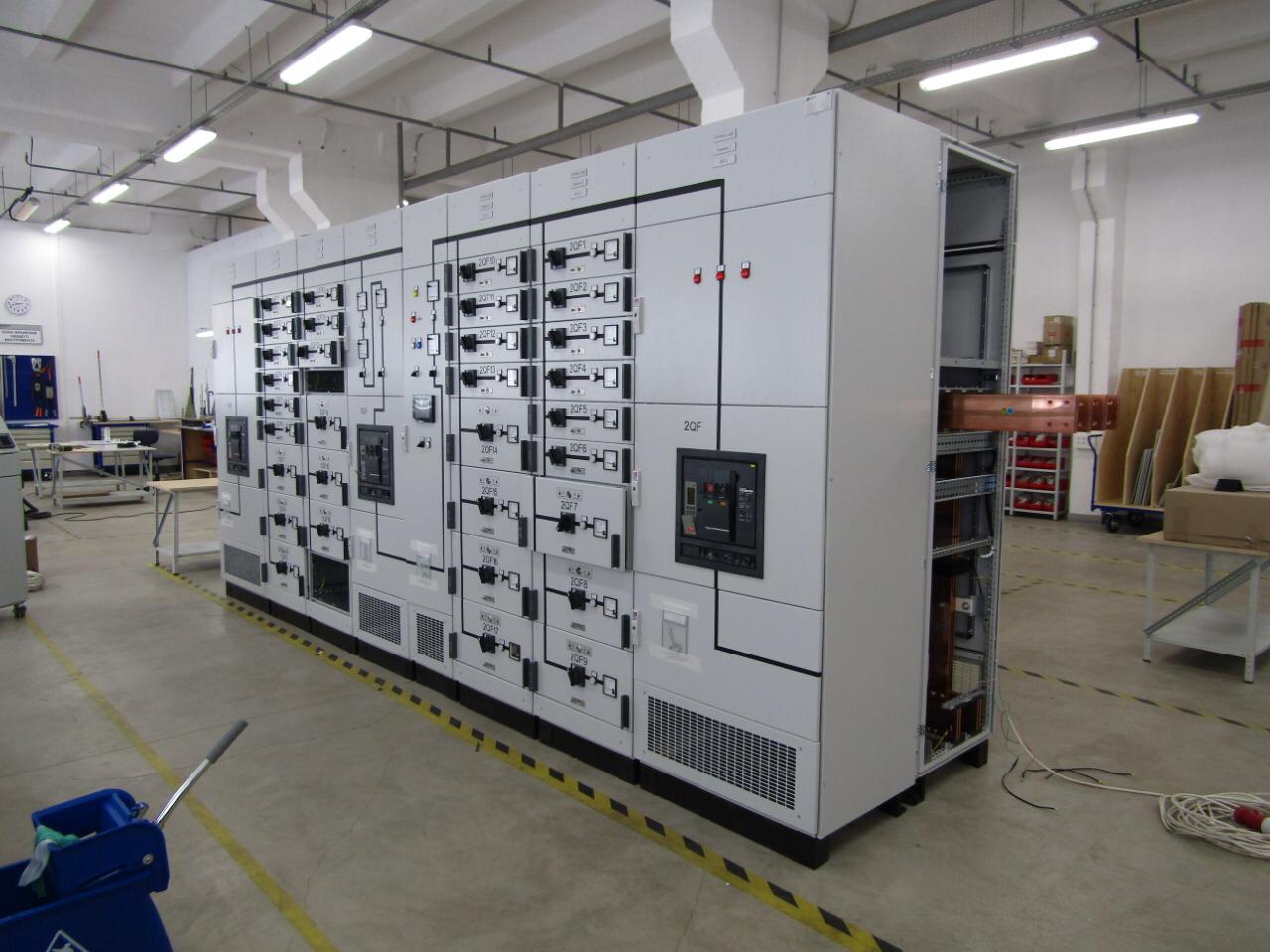

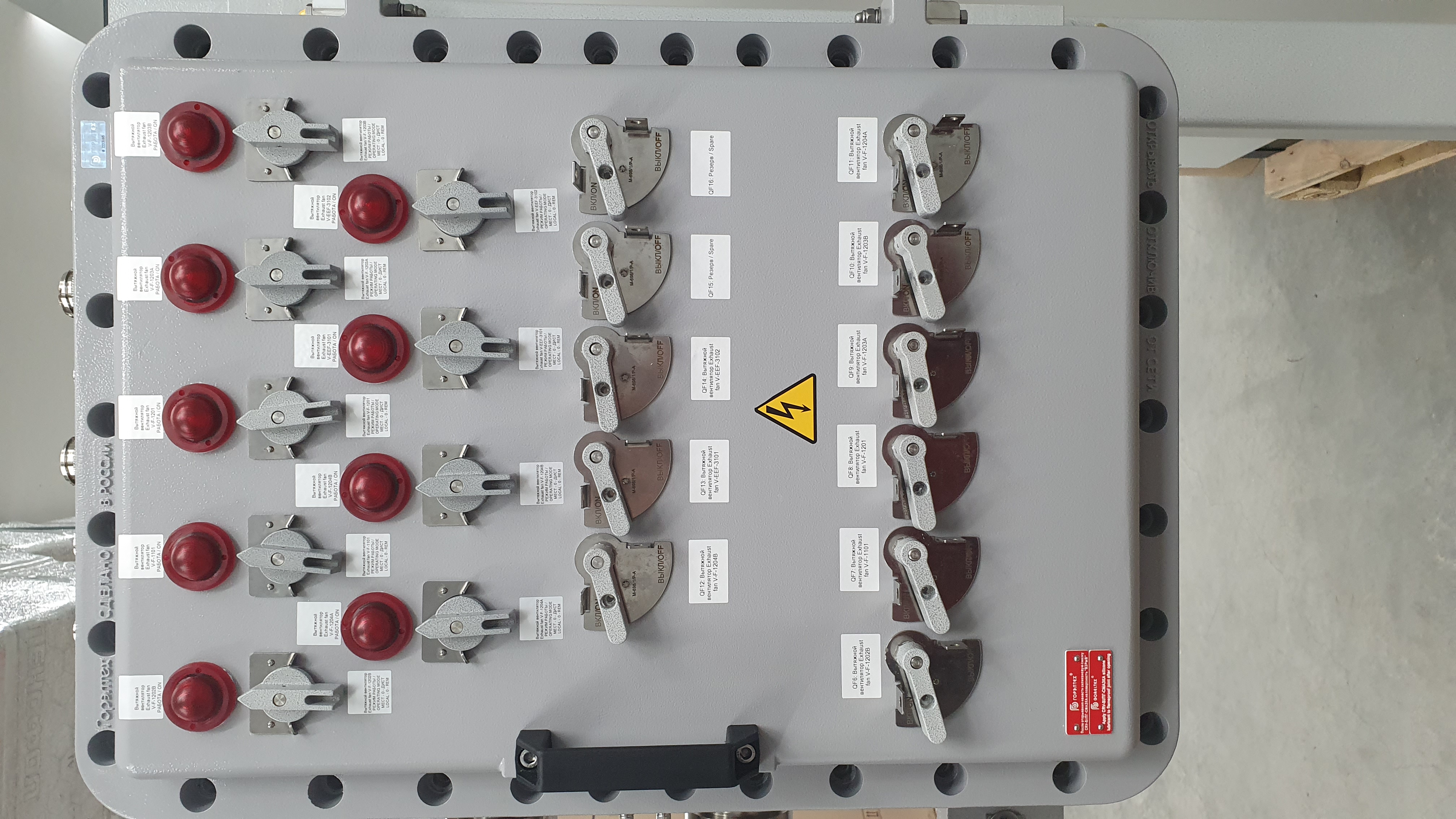

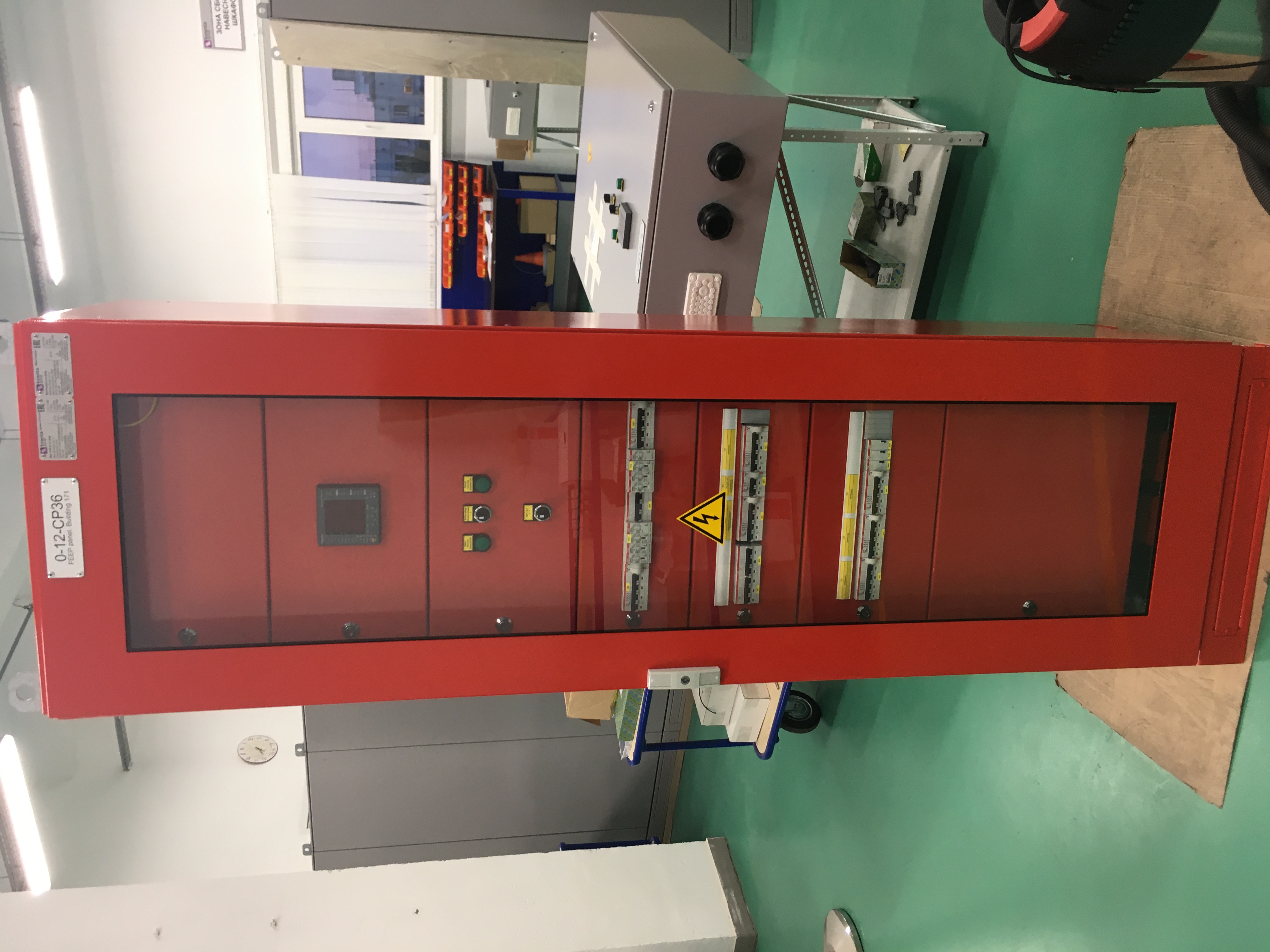

MCC 0,4 kV

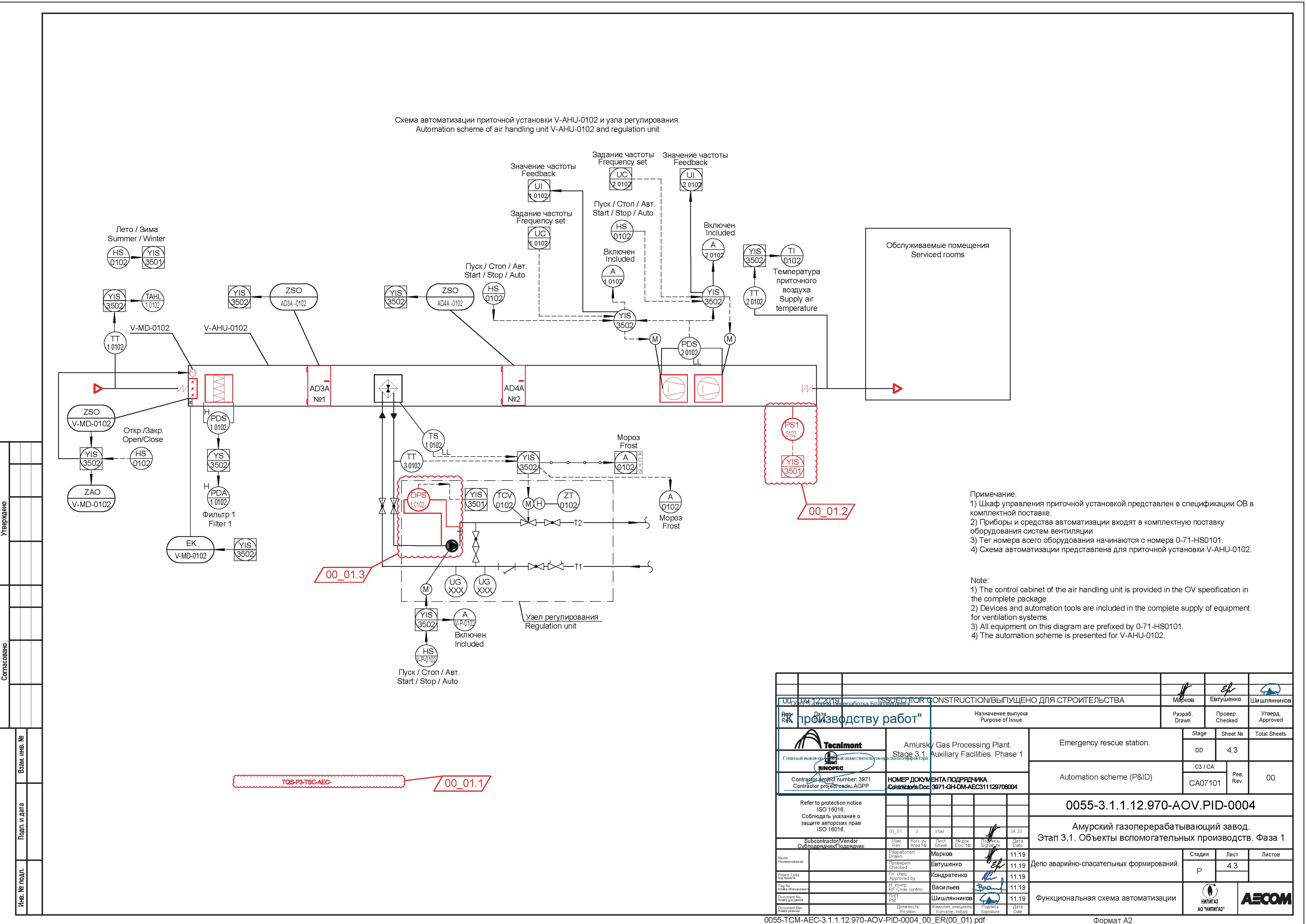

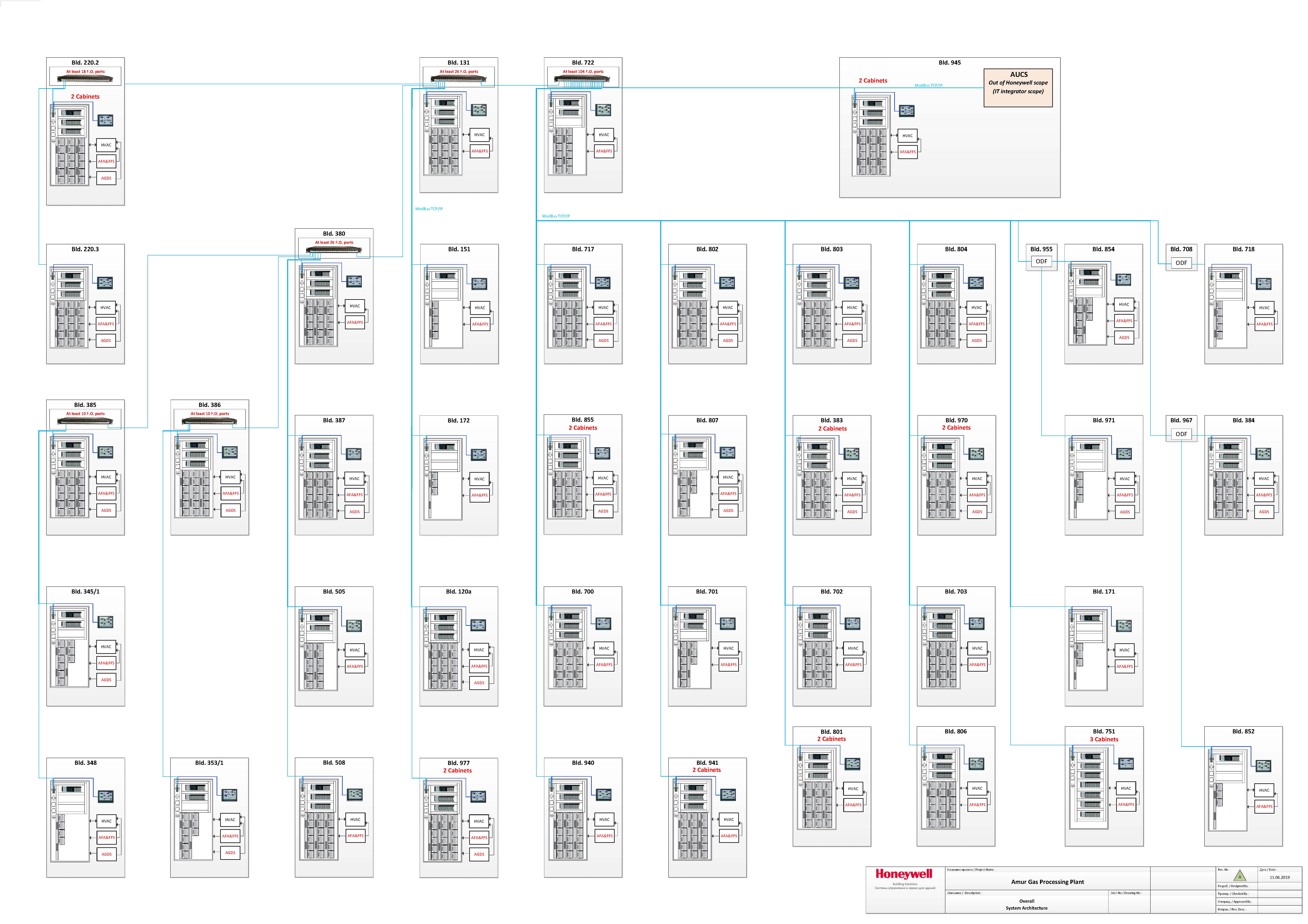

Automation Technical Solution / System Architecture:

Central Equipment: DDC (50 panels, 11500+ points): Honeywell MasterLogic-200 PLC MCC (175 panels): ABB – SACE Tmax XT / Tmax T Series, Siemens – SENTRON 3WL, 3VA, 5SY, SE – Compact NSX / NSXm, Acti 9, TeSys GV2

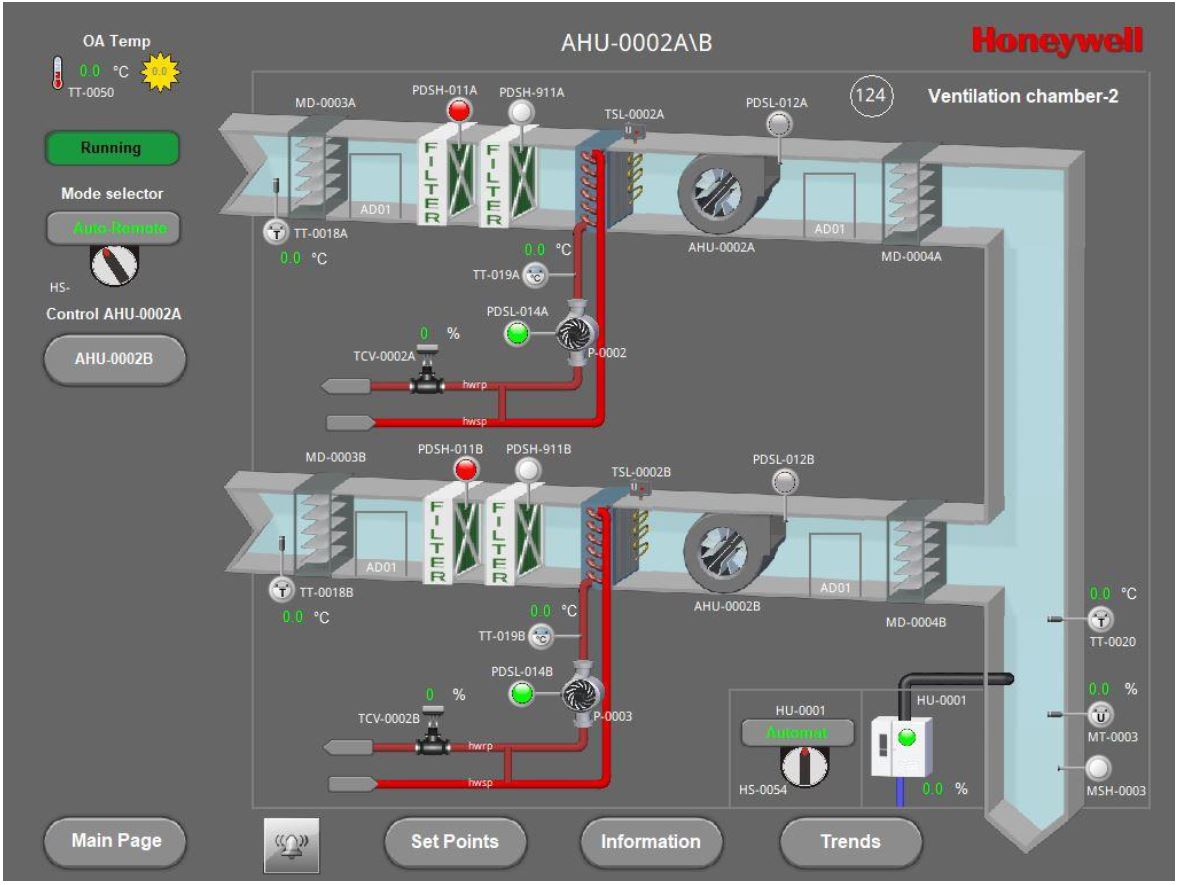

HMI System: Weintek MT8150XE
Communication Networks and Protocols: Modbus TCP/IP
