SOCAR SDC (Shah Deniz Compression) Public Address and General Alarm (PAGA) and Intercom System

PAGA (Public Address and General Alarm) and Intercom System. Engineering, Supply and Commissioning

Project Details

Year of Execution: 2024-2026

Facility: New 19,000-tonne compression facility (platform) - an electrically-powered unmanned compression platform.

Location: offshore platform 70 kilometres southeast of Baku, Azerbaijan sector of the Caspian Sea, Azerbaijan.

Contract Price Level: $1M+

Key Project Stakeholders:

End User: BP (Operator)
Customer: Eur****
Design Contractor: SOCAR-KBR
TELECOM Integrator: Eur****

Scope of Supply:

Telecom: PA / GA and Intercom Systems
Services: Engineering, Manufacturing, Software Configuration , Factory Acceptance Test (FAT), Commissioning, Site Acceptance Test (SAT)

Project Description:

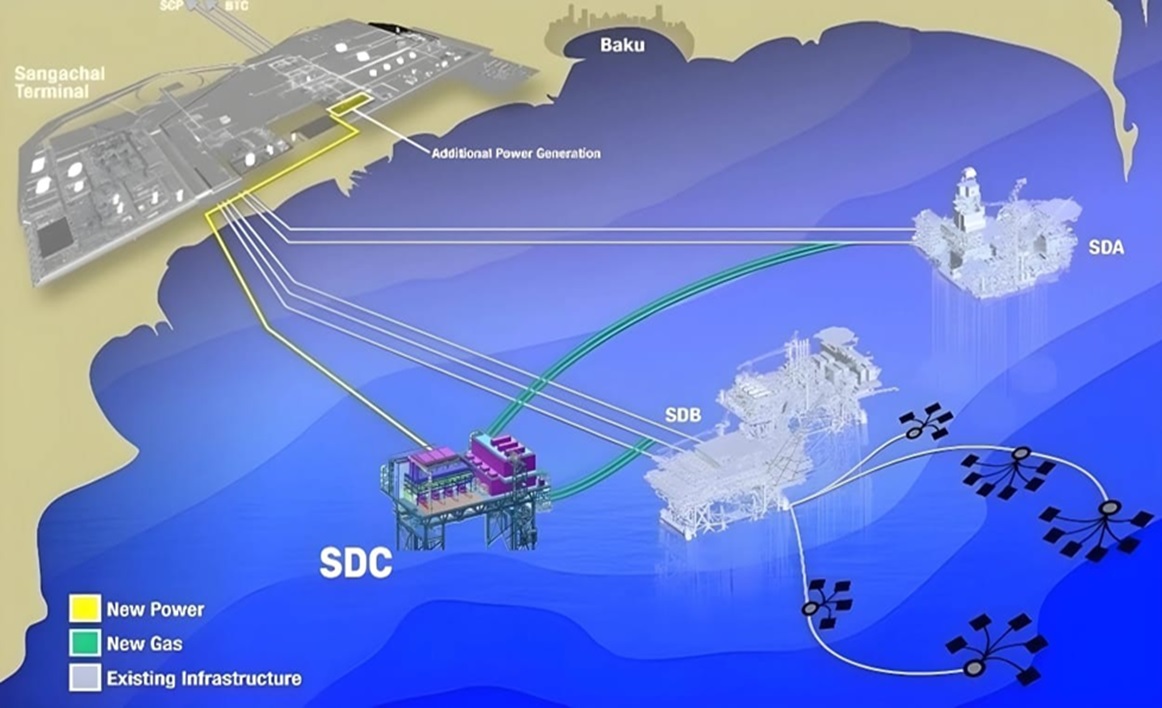

The Shah Deniz Project is a major energy development that has played a key role in establishing Azerbaijan as a supplier of natural gas to regional and European markets.

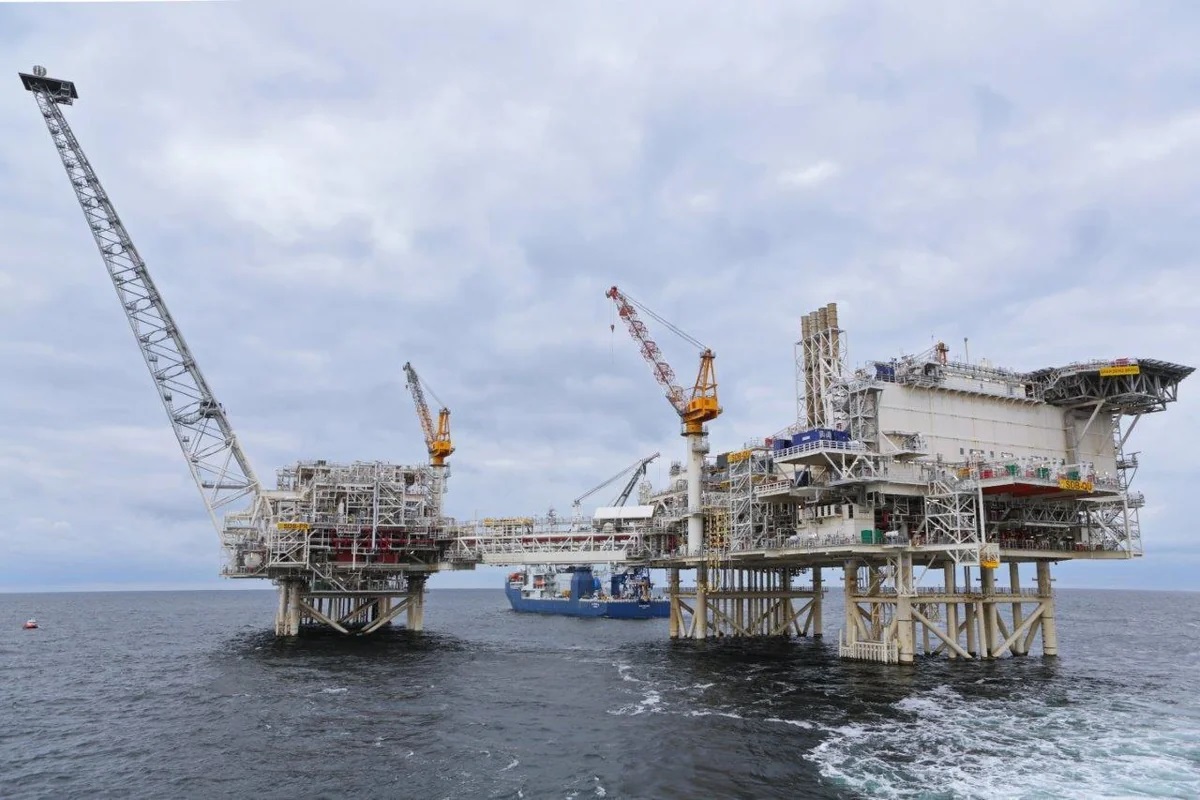

The objective of the project is to develop low-pressure gas reserves and maximize resource recovery. The SDC Project is expected to enable the production and export of an additional 50 billion cubic meters of natural gas and 25 million barrels of condensate. The project includes the installation of a new normally unmanned electrically powered offshore compression platform.

The PA/GA System is required to provide voice communication and emergency alarm notification for maintenance personnel during periodic visits to the platform.

BP selected the Industronic PA/GA solution for the Shah Deniz Compression Project. (Competitors: Zenitel, GAI-TRONICS, Johnsons Control)

My Role:

Project Manager responsible for project scope, schedule, and financial performance.

Project Team:

2 Telecom Hardware Design Engineers PAGA and intercom
2 Functional Managers (Procurement & Logistics, and Legal Support)

Technical Description:

SDC Project includes:

Telecom equipment:

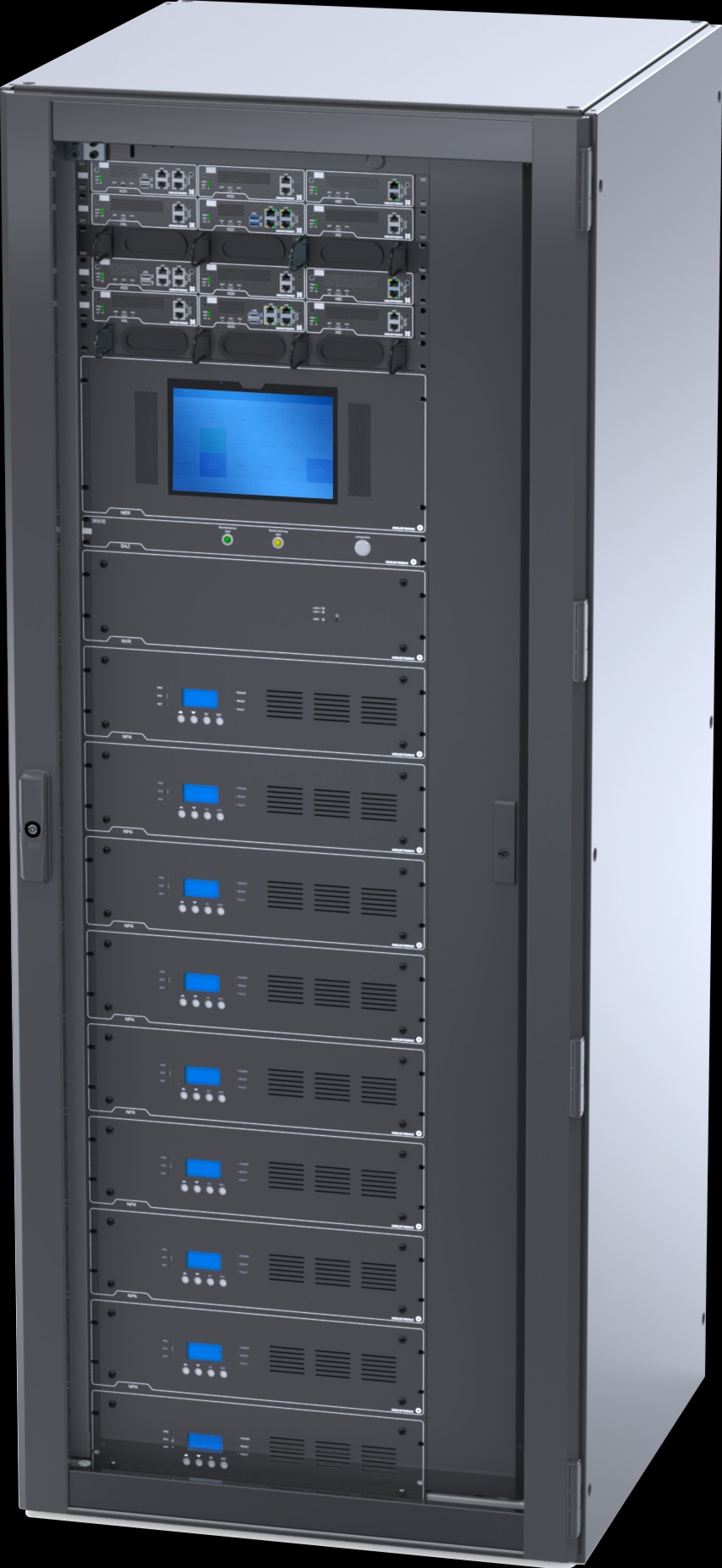

Central redundant (A+B) PAGA units (Industronic Intron-X series)

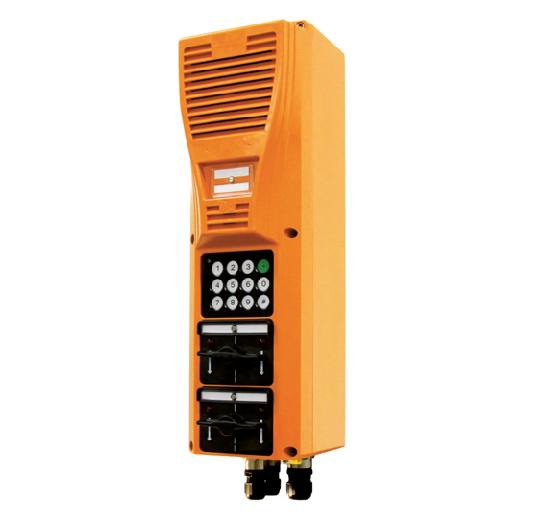

Ex Intercom Stations;

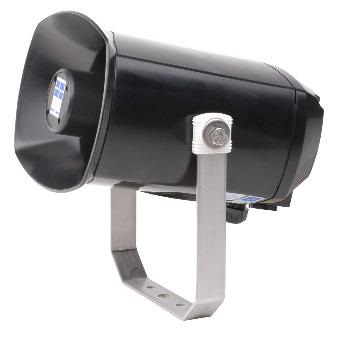

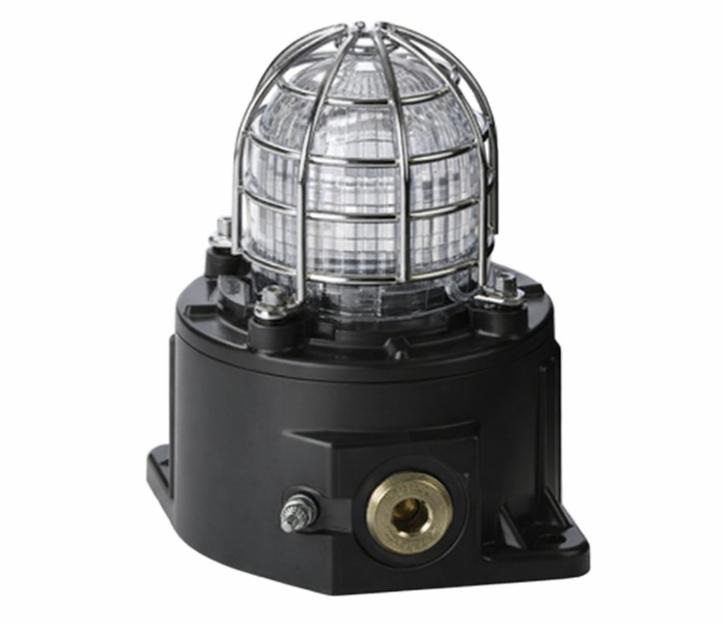

Field Devices (Loudspeakers and Beacons).

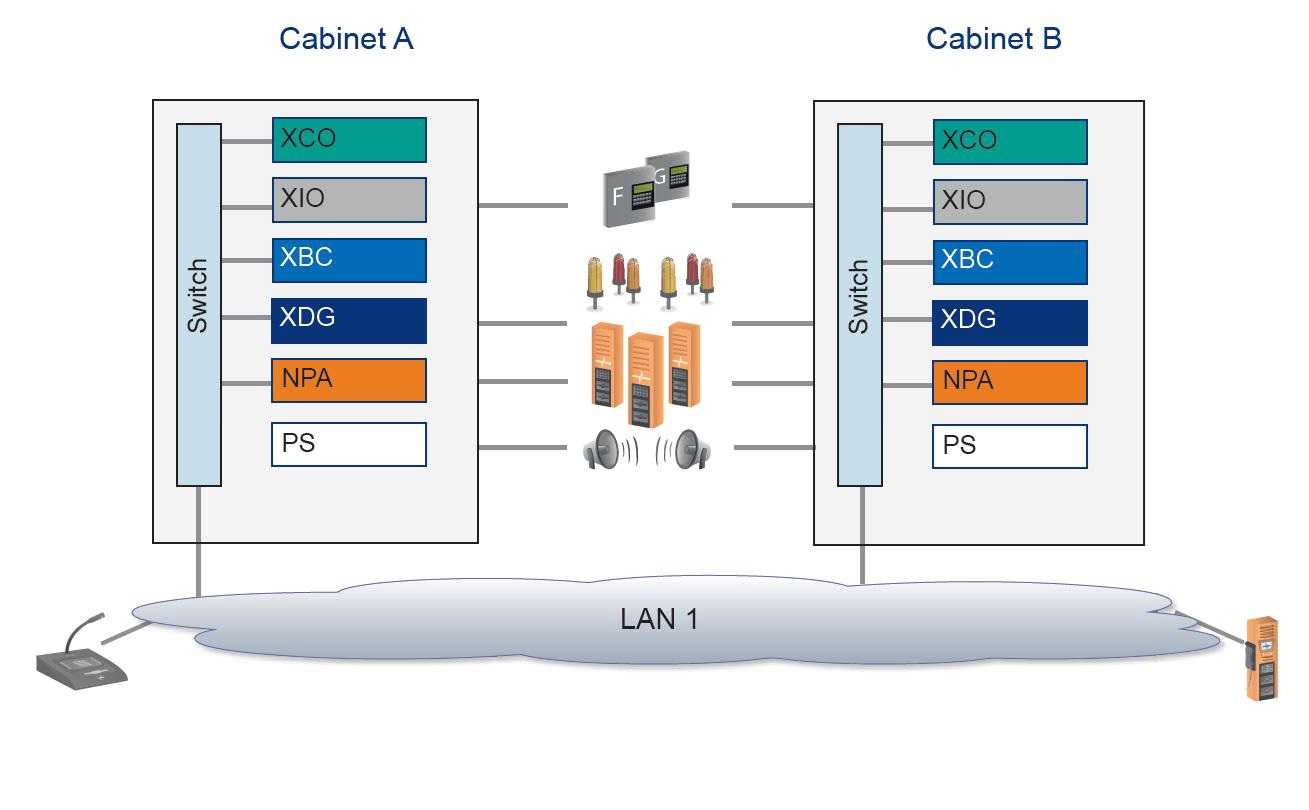

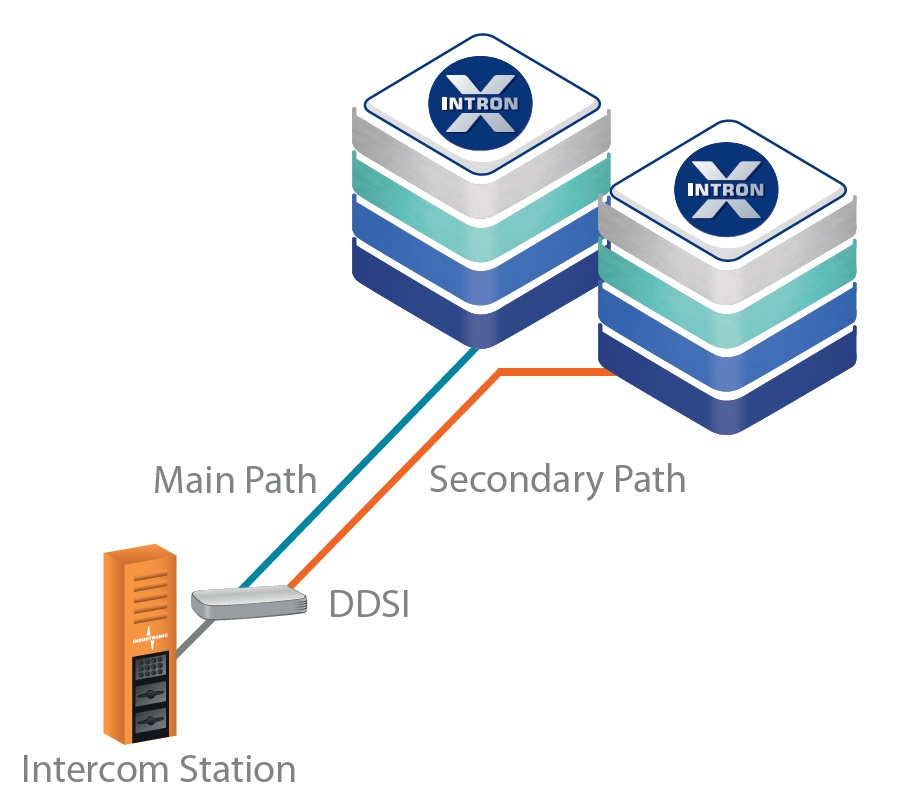

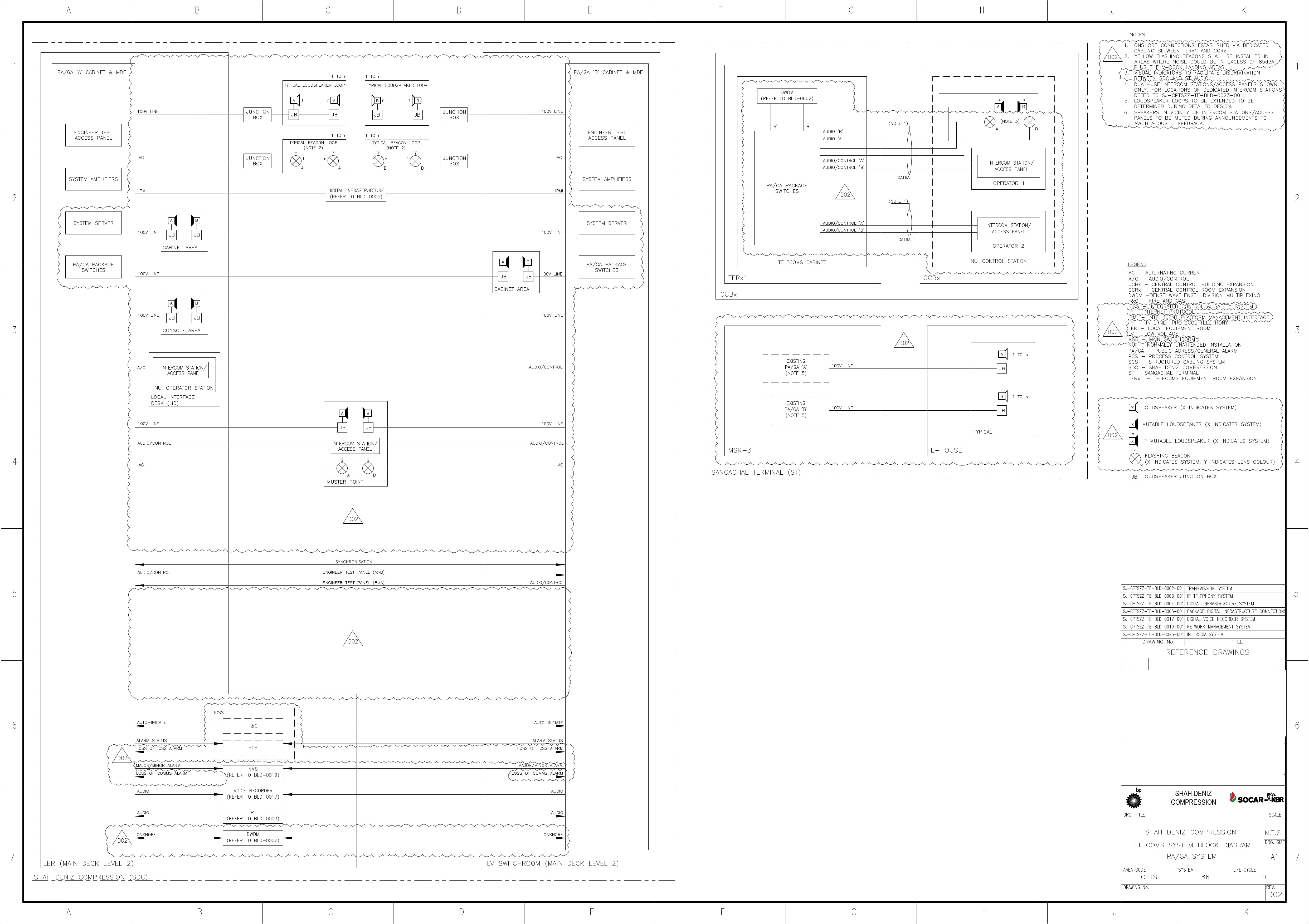

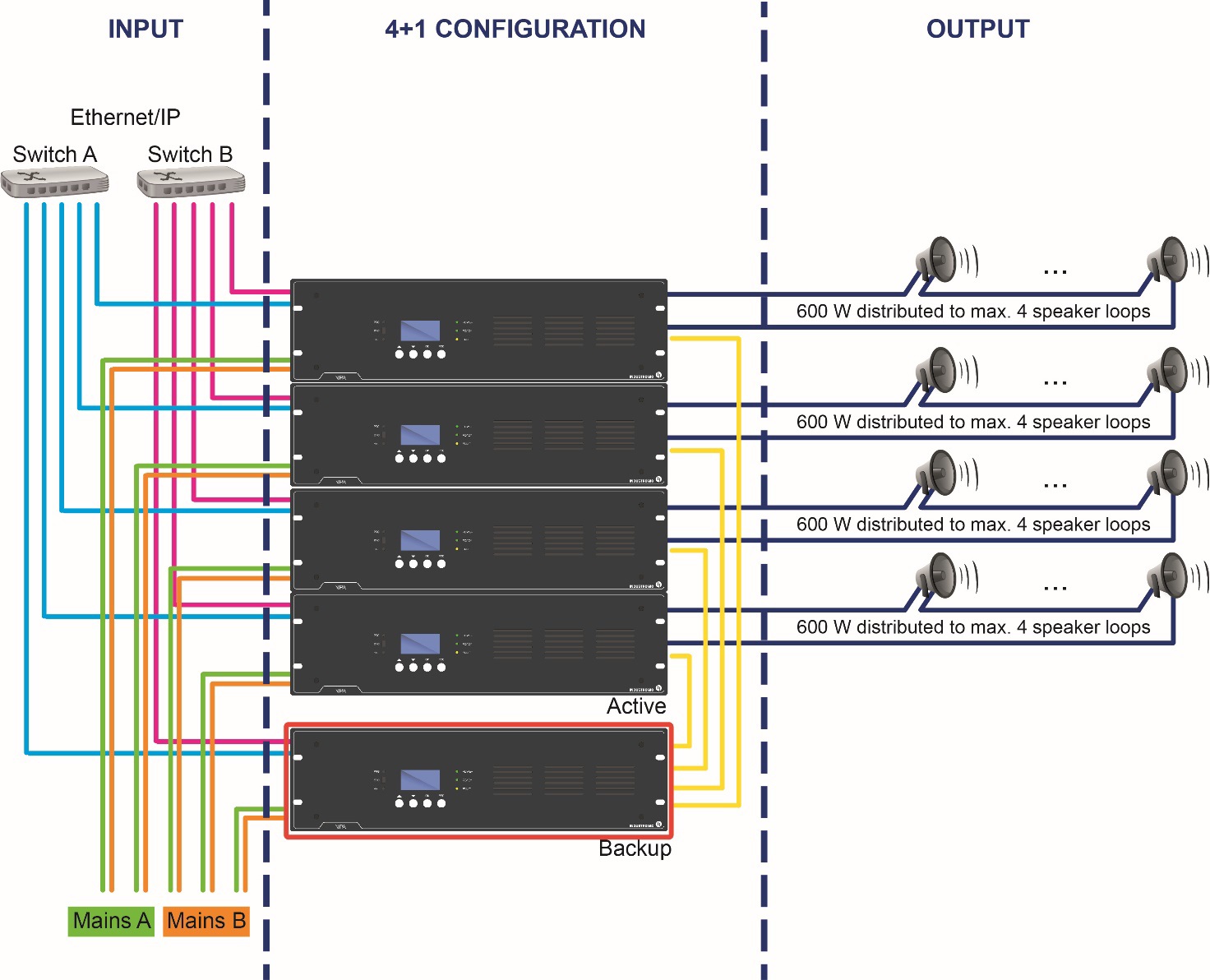

PAGA & Intercom Technical Solution / System Architecture
